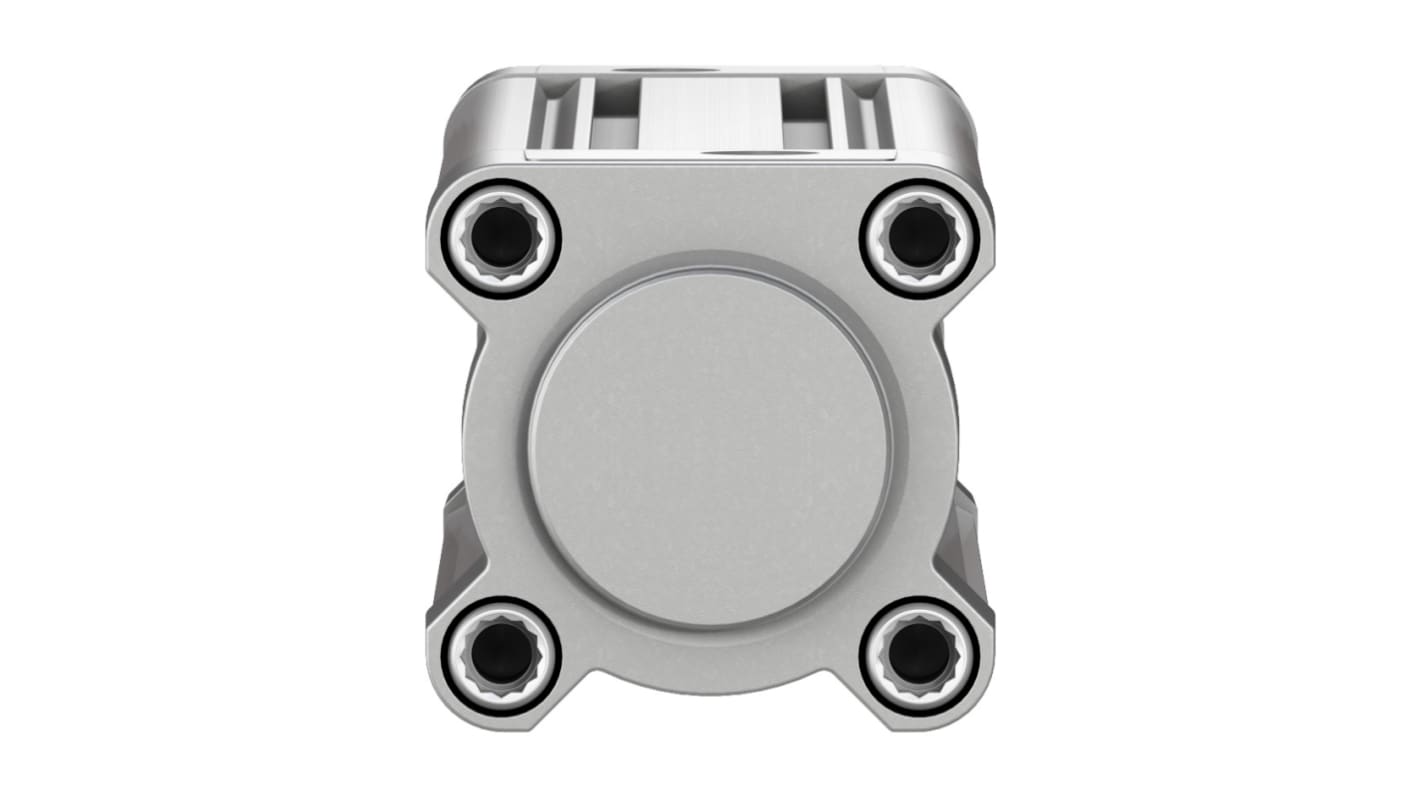

Festo Pneumatic Piston Rod Cylinder - 1383639, 63mm Bore, 200mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5192
- Mfr. Part No.:
- DSBC-63-200-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£213.03
(exc. VAT)
£255.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £213.03 |
*price indicative
- RS Stock No.:
- 121-5192
- Mfr. Part No.:
- DSBC-63-200-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383639 | |
Action | Double | |
Bore | 63mm | |
Stroke | 200mm | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 393.1 x 75 x 75mm | |
Height | 75mm | |
Width | 75mm | |
Length | 393.1mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Stroke Interval Weight | 62 g @ 10 mm Stroke | |
Weight | 1.7kg | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Test Weight | 1740 g @ 0 mm Stroke | |
VDMA Standard | 24562 | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383639 | ||
Action Double | ||
Bore 63mm | ||
Stroke 200mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 393.1 x 75 x 75mm | ||
Height 75mm | ||
Width 75mm | ||
Length 393.1mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Weight 1.7kg | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Test Weight 1740 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 200mm Stroke, 63mm Bore - DSBC-63-200-PPSA-N3, Numeric Part Number: 1383639
This pneumatic piston rod cylinder is designed for effective motion control in automation applications. Its robust construction ensures reliable performance within pneumatic actuator systems and compliance with ISO 15552 standards, making it suitable for high-pressure operations.
Features & Benefits
• Double-acting design enhances operational efficiency
• Self-adjusting pneumatic cushioning for smooth functionality
• Maximum pressure rating of 12 bar for versatile applications
• Male-threaded piston rod for secure mounting
• Self-adjusting pneumatic cushioning for smooth functionality
• Maximum pressure rating of 12 bar for versatile applications
• Male-threaded piston rod for secure mounting
Applications
• Suitable for motion control in industrial automation systems
• Ideal for precision tasks in material handling machinery
• Ideal for precision tasks in material handling machinery
What is the mounting configuration available for this component?
It can be mounted using a female thread or additional accessories tailored to specific requirements.
How is position detection implemented in this system?
Position detection can be accomplished with a proximity switch, providing effective feedback during operation.
What type of operating medium is suitable for this cylinder?
Compressed air in accordance with ISO 8573-12010 standards is recommended.
