Festo Pneumatic Cylinder - 1646762, 63mm Bore, 200mm Stroke, DSBG-63-200-PPSA-N3 Series, Double Acting
- RS Stock No.:
- 203-6522
- Mfr. Part No.:
- DSBG-63-200-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£246.59
(exc. VAT)
£295.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £246.59 |
*price indicative
- RS Stock No.:
- 203-6522
- Mfr. Part No.:
- DSBG-63-200-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBG-63-200-PPSA-N3 | |
Model Number p | 1646762 | |
Bore | 63mm | |
Action | Double | |
Stroke | 200mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBG-63-200-PPSA-N3 | ||
Model Number p 1646762 | ||
Bore 63mm | ||
Action Double | ||
Stroke 200mm | ||
- COO (Country of Origin):
- CN

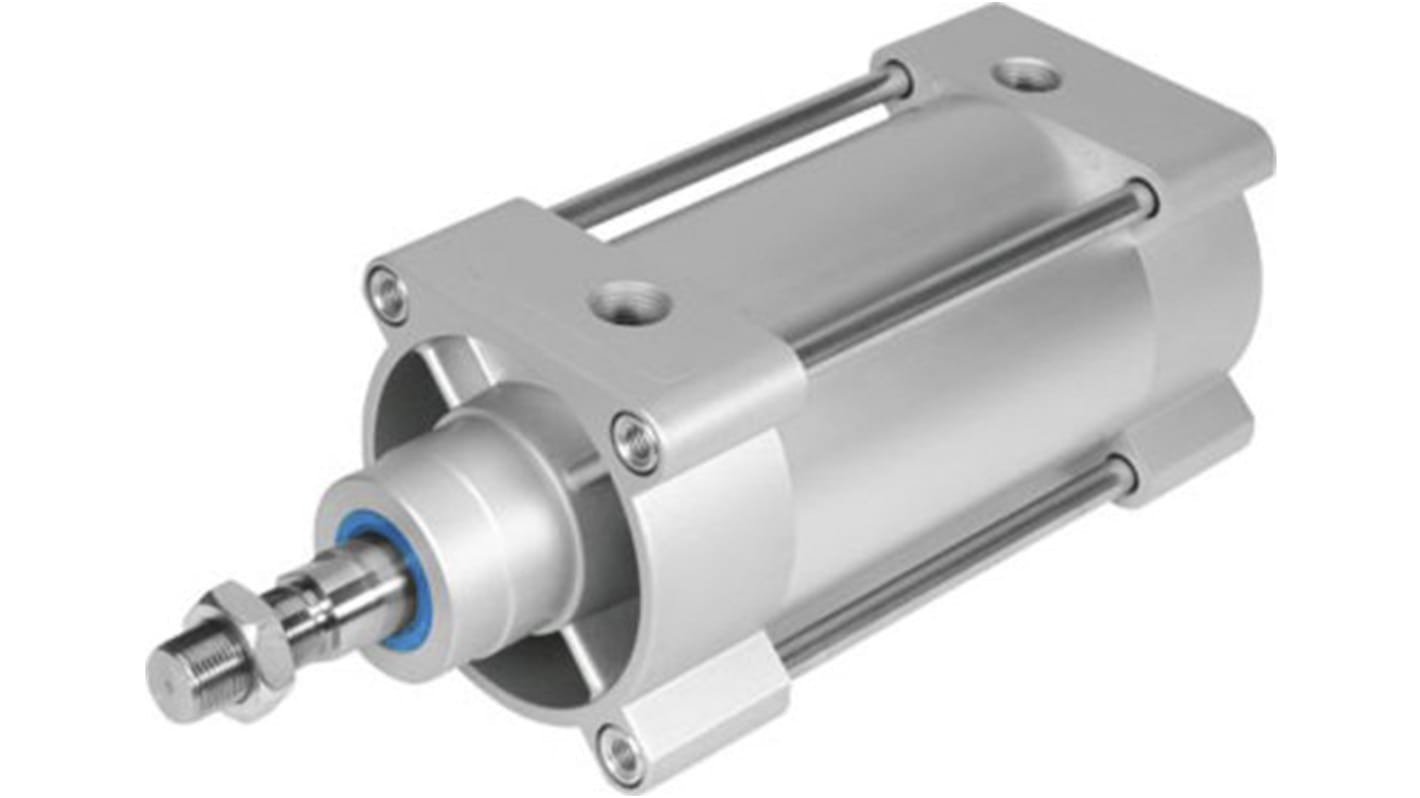

The Festo ISO cylinder has 200 mm stroke and 63 mm piston diameter. It is standards-based cylinder, double-acting based on ISO 15552. The bellows protects the piston rod, the seal and the bearing from the effects of a wide range of media, which has a positive impact on the service life of these components.
Stroke 200 mm
Piston diameter 63 mm
Piston rod thread M16x1,5
Cushioning PPS: Self-adjusting pneumatic end-position cushioning
Assembly position Any
Piston diameter 63 mm
Piston rod thread M16x1,5
Cushioning PPS: Self-adjusting pneumatic end-position cushioning
Assembly position Any
