Festo Pneumatic Piston Rod Cylinder - 1383340, 80mm Bore, 200mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5215
- Mfr. Part No.:
- DSBC-80-200-PPVA-N3
- Brand:
- Festo

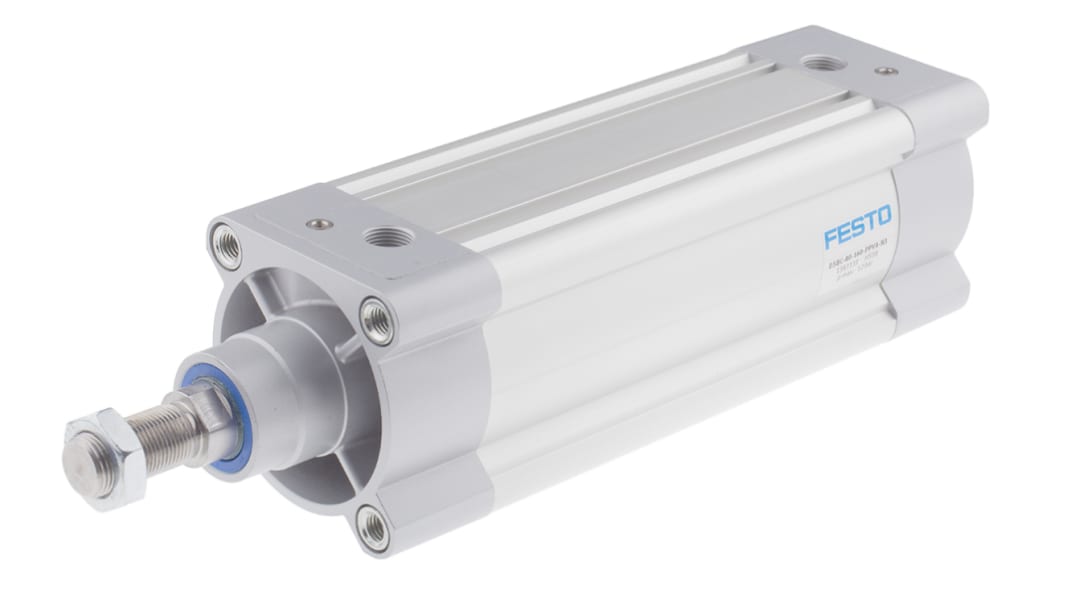

Image representative of range
Subtotal (1 unit)*
£285.85
(exc. VAT)
£343.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £285.85 |
*price indicative
- RS Stock No.:
- 121-5215
- Mfr. Part No.:
- DSBC-80-200-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 1383340 | |
| Bore | 80mm | |
| Action | Double | |
| Stroke | 200mm | |
| Port Connection | G 3/8 | |
| Pneumatic Connection | G 3/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Pneumatic Cushioning | |
| Dimensions | 417.6 x 93 x 93mm | |
| Height | 93mm | |
| Width | 93mm | |
| Length | 417.6mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Maximum Operating Temperature | +80°C | |
| Stroke Interval Weight | 92 g @ 10 mm Stroke | |
| Test Weight | 2660 g @ 0 mm Stroke | |
| Minimum Operating Temperature | -20°C | |
| Weight | 2.7kg | |
| VDMA Standard | 24562 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383340 | ||
Bore 80mm | ||
Action Double | ||
Stroke 200mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Dimensions 417.6 x 93 x 93mm | ||
Height 93mm | ||
Width 93mm | ||
Length 417.6mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 92 g @ 10 mm Stroke | ||
Test Weight 2660 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Weight 2.7kg | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 200mm Stroke, G3/8 Threaded Port - DSBC-80-200-PPVA-N3
Easily move heavy loads in your industrial setup with this pneumatic piston rod cylinder from Festo. It's a double-acting unit, which means it has compressed air driving its piston in both directions for extension and retraction. This makes it the right choice for applications like opening and closing doors. The unit stays on shift in rugged industrial environments thanks to its coated die-cast aluminium housing, which provides reliable resistance to corrosion and impact. You don't need any complex tools to set it up, as its standard G3/8 threaded port makes creating pneumatic connections quick and easy.
• Comes with slots for flush mounting of proximity sensors, enabling automated operation
• Broad operating temperature range between -20°C to +80°C for use in demanding applications
• Integrated TPE-U(PU) seals block out dust and contaminants, ensuring a long service life
• Adjustable PPV cushioning at both ends reduces noise and vibration for improved performance
• Broad operating temperature range between -20°C to +80°C for use in demanding applications
• Integrated TPE-U(PU) seals block out dust and contaminants, ensuring a long service life
• Adjustable PPV cushioning at both ends reduces noise and vibration for improved performance
Applications
• Oil and gas plants
• Military equipment
• Robotics and automation systems
• Military equipment
• Robotics and automation systems
What's the operating pressure range of this cylinder?
This unit performs at its best in a pressure range between 0.4 and 12 bar, making it a versatile workmate.
