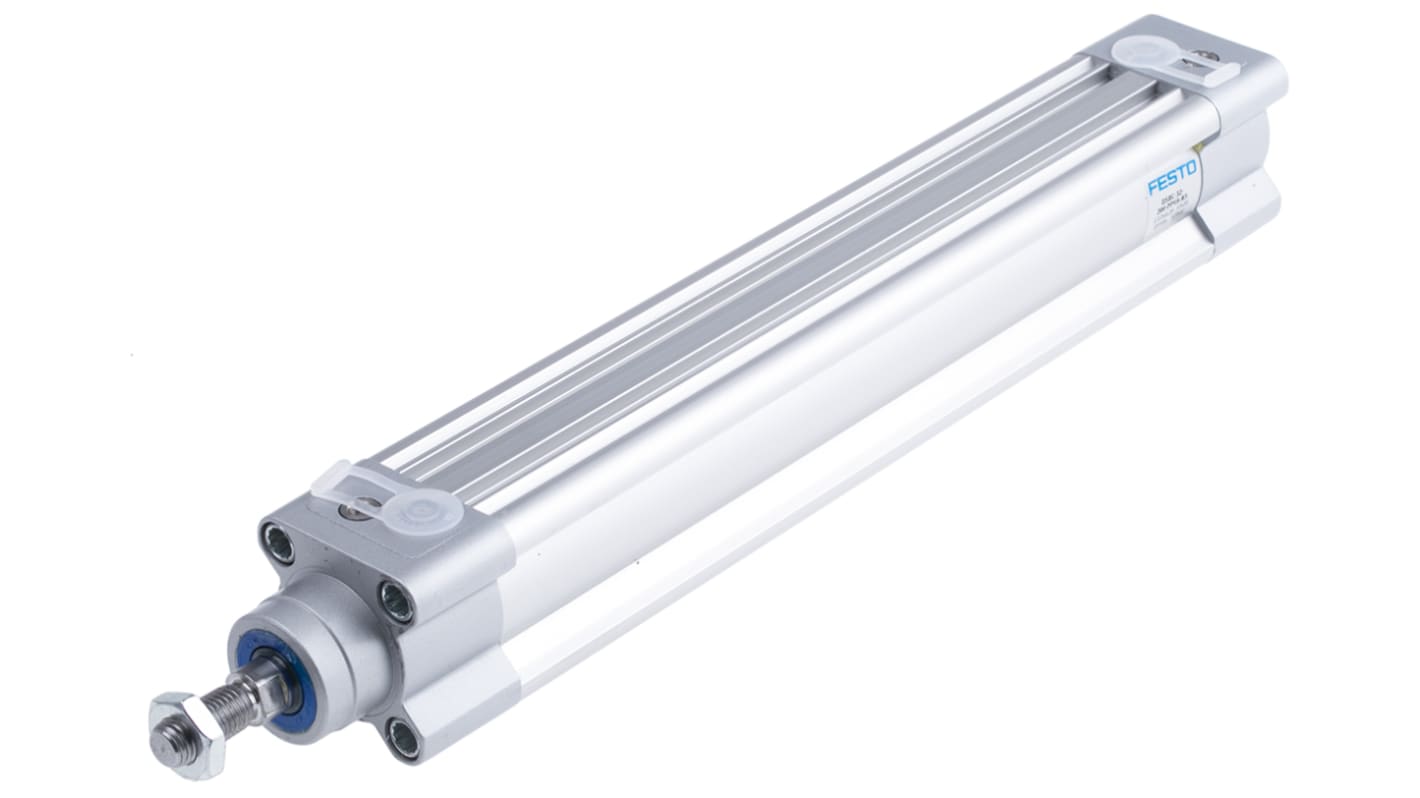

Festo Pneumatic Piston Rod Cylinder - 1376429, 32mm Bore, 200mm Stroke, DSBC Series, Double Acting

View this category

Subtotal (1 unit)*

£138.05

(exc. VAT)

£165.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
  • Plus 29 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£138.05

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Festo Pneumatic Piston Rod Cylinder - 1376474, 32mm Bore, 200mm Stroke, DSBC Series, Double Acting
RS Stock No.
121-5238

Each

£134.92

(exc. VAT)

£161.90

(inc. VAT)

RS Stock No.:
121-5239
Mfr. Part No.:
DSBC-32-200-PPVA-N3
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

DSBC

Model Number p

1376429

Bore

32mm

Action

Double

Stroke

200mm

Pneumatic Connection

G 1/8

Port Connection

G 1/8

Piston Rod Thread Gender

Male

Cushioning Type

Pneumatic Cushioning

Dimensions

345.1 x 45 x 45mm

Width

45mm

Height

45mm

Length

345.1mm

Maximum Operating Pressure

12 bar

ISO Standard

15552

Test Weight

465 g @ 0 mm Stroke

VDMA Standard

24562

Maximum Operating Temperature

+80°C

Weight

465g

Minimum Operating Temperature

-20°C

Stroke Interval Weight

27 g @ 10 mm Stroke

COO (Country of Origin):
DE

Festo Pneumatic Piston Rod Cylinder, 0.6 to 12 Bar Operating Pressure Range, M10 Piston Rod Thread - DSBC-32-200-PPVA-N3


Need to get your automated application moving in the right direction? This Festo pneumatic piston rod cylinder delivers strokes up to 200mm long, quickly shifting goods across your setup for speedy sorting. As a double-action unit, it uses air to extend and retract its piston, to achieve accurate two-way movement every time. Because it's compatible with both clean and lubricated compressed air, this is a sure fit for standard pneumatic systems. The cylinder slots into place with a simple M10-thread port, meaning it's a cinch to install.

Features & Benefits


• Adjustable cushioning at both ends to prevent impact damage
• Die-cast aluminium casing resists corrosion, ensuring a long service life
• Measures just 45 (W) x 45 (H) x 345.1mm (D) for easy mounting in busy setups
• Sealed with PU O-rings to cut the risk of pressure loss through leaks

Applications


• Automotive industry
• Processing plants
• Small parts manufacturing

Can I use this cylinder in extreme temperatures?


Yes. This pneumatic cylinder works in operating temperatures between -20°C and +80°C, giving you reliable performance in demanding industrial settings.
