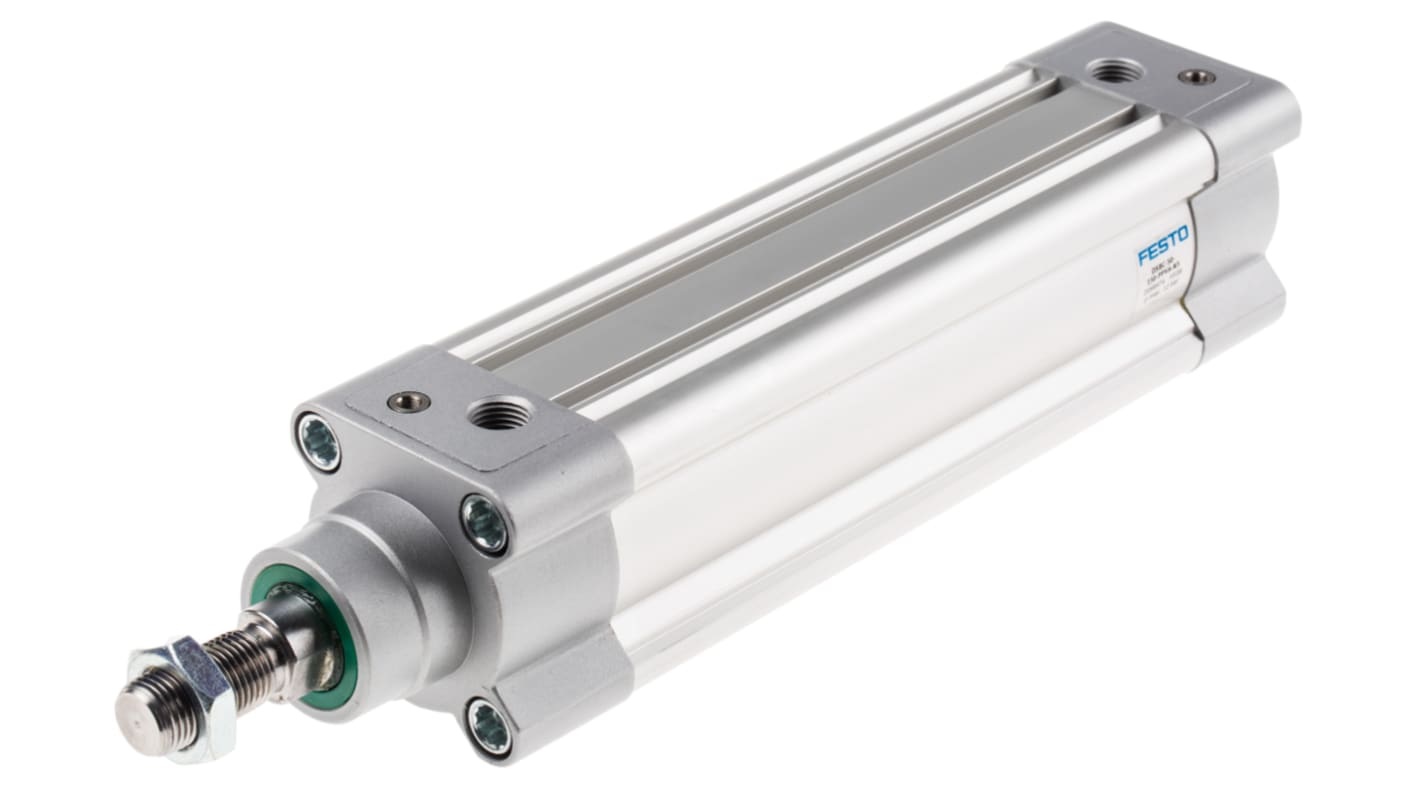

Festo Pneumatic Piston Rod Cylinder - 2098974, 50mm Bore, 150mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5295
- Mfr. Part No.:
- DSBC-50-150-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£178.20
(exc. VAT)
£213.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £178.20 |
*price indicative
- RS Stock No.:
- 121-5295
- Mfr. Part No.:
- DSBC-50-150-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 2098974 | |
| Stroke | 150mm | |
| Bore | 50mm | |
| Action | Double | |
| Pneumatic Connection | G 1/4 | |
| Port Connection | G 1/4 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 327.8 x 64 x 64mm | |
| Height | 64mm | |
| Length | 327.8mm | |
| Width | 64mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Stroke Interval Weight | 56 g @ 10 mm Stroke | |
| Maximum Operating Temperature | +80°C | |
| Weight | 1.2kg | |
| VDMA Standard | 24562 | |
| Test Weight | 1190 g @ 0 mm Stroke | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2098974 | ||
Stroke 150mm | ||
Bore 50mm | ||
Action Double | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 327.8 x 64 x 64mm | ||
Height 64mm | ||
Length 327.8mm | ||
Width 64mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 56 g @ 10 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
Weight 1.2kg | ||
VDMA Standard 24562 | ||
Test Weight 1190 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, 327.8mm Length - DSBC-50-150-PPVA-N3
To make sure your applications deliver tip-top performance, keep them in line with this pneumatic piston rod cylinder from Festo. It produces the linear motion needed to stop, position or eject objects efficiently. Thanks to its double-acting design, which uses compressed air at both ends to advance and retract the piston, you can count on precision control. There's cushioning at both ends to absorb impacts and ensure a long lifespan. This is also self-adjusting, so you don't have to lift a finger to calculate or set it, even if your load changes.
Features & Benefits
• Weighs just 1.2kg, putting minimal strain on your installation
• G1/4 port connection matches standard fittings for fuss-free assembly
• Operating range between 0.4 and 12 bar handles low-pressure and high-pressure systems
• G1/4 port connection matches standard fittings for fuss-free assembly
• Operating range between 0.4 and 12 bar handles low-pressure and high-pressure systems
Applications
• Assembly and packaging lines
• Automatic access controls
• Offshore operations
• Railway systems
• Automatic access controls
• Offshore operations
• Railway systems
Can I use this pneumatic piston rod cylinder with sensing equipment?
Yes, you can fit a proximity sensor in the slots along the barrel to improve the accuracy of your equipment even more.
What's the stroke length of this pneumatic piston rod cylinder?
The unit has a 150mm stroke length, making it a good match for repetitive tasks where precision is crucial.
