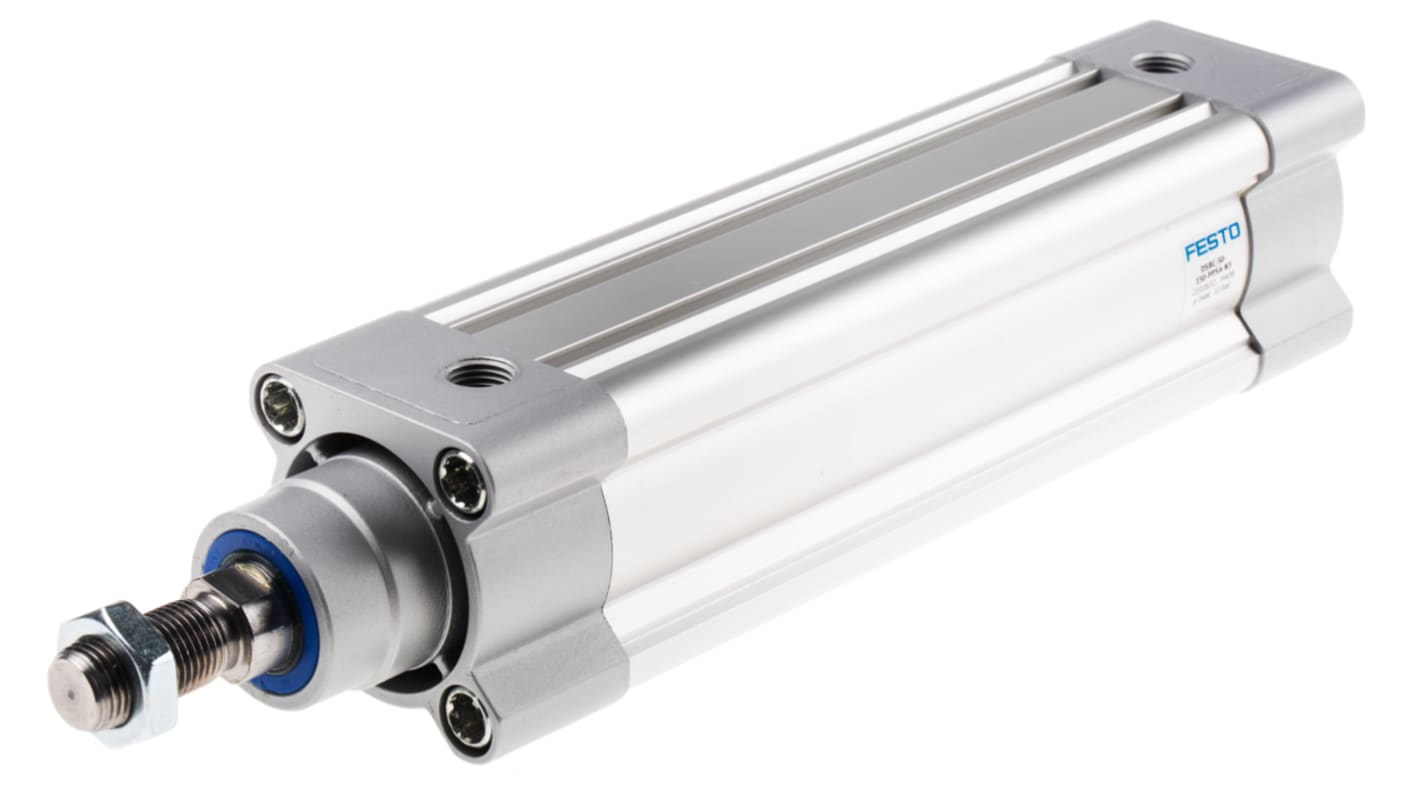

Festo Pneumatic Piston Rod Cylinder - 2102632, 50mm Bore, 150mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5294
- Mfr. Part No.:
- DSBC-50-150-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£176.43
(exc. VAT)
£211.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 27 October 2025
- Plus 4 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £176.43 |
*price indicative
- RS Stock No.:
- 121-5294
- Mfr. Part No.:
- DSBC-50-150-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 2102632 | |
| Bore | 50mm | |
| Stroke | 150mm | |
| Action | Double | |
| Port Connection | G 1/4 | |
| Pneumatic Connection | G 1/4 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 327.8 x 64 x 64mm | |
| Width | 64mm | |
| Length | 327.8mm | |
| Height | 64mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Maximum Operating Temperature | +80°C | |
| VDMA Standard | 24562 | |
| Minimum Operating Temperature | -20°C | |
| Test Weight | 1190 g @ 0 mm Stroke | |
| Stroke Interval Weight | 56 g @ 10 mm Stroke | |
| Weight | 1.2kg | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2102632 | ||
Bore 50mm | ||
Stroke 150mm | ||
Action Double | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 327.8 x 64 x 64mm | ||
Width 64mm | ||
Length 327.8mm | ||
Height 64mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
Test Weight 1190 g @ 0 mm Stroke | ||
Stroke Interval Weight 56 g @ 10 mm Stroke | ||
Weight 1.2kg | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, 327.8mm Length - DSBC-50-150-PPSA-N3
Want to keep your industrial processes in line? Trust this pneumatic piston rod cylinder from Festo to achieve precise positioning. It's a double-acting unit that takes in compressed air at both ends to create linear motion and accurately stop, eject or place objects. Thanks to a 150mm stroke, you can count on it for repetitive tasks and applications that need accuracy. As the cylinder tips the scales at just 1.2kg, it adds little strain to your assembly. The die-cast aluminium barrel is rust-resistant, meaning you can confidently use it in damp or humid conditions.
Features & Benefits
• Double-ended cushioning absorbs impacts to prevent damage
• Flexible TPE-U(PU) seals keep the cylinder airtight for optimal performance
• Works like a charm in a wide temperature range between -20°C and +80°C
• Flexible TPE-U(PU) seals keep the cylinder airtight for optimal performance
• Works like a charm in a wide temperature range between -20°C and +80°C
Applications
• Automated factory systems
• Railway applications
• Industrial vehicles
• Railway applications
• Industrial vehicles
How do I install this pneumatic piston rod cylinder?
Installing the unit's a breeze – just screw it to a compatible fitting using the standard G1/4 thread, adding a bracket if necessary to support it.
What position can I mount this pneumatic piston rod cylinder in?
You can mount this flexible component in any position to best suit your setup.
