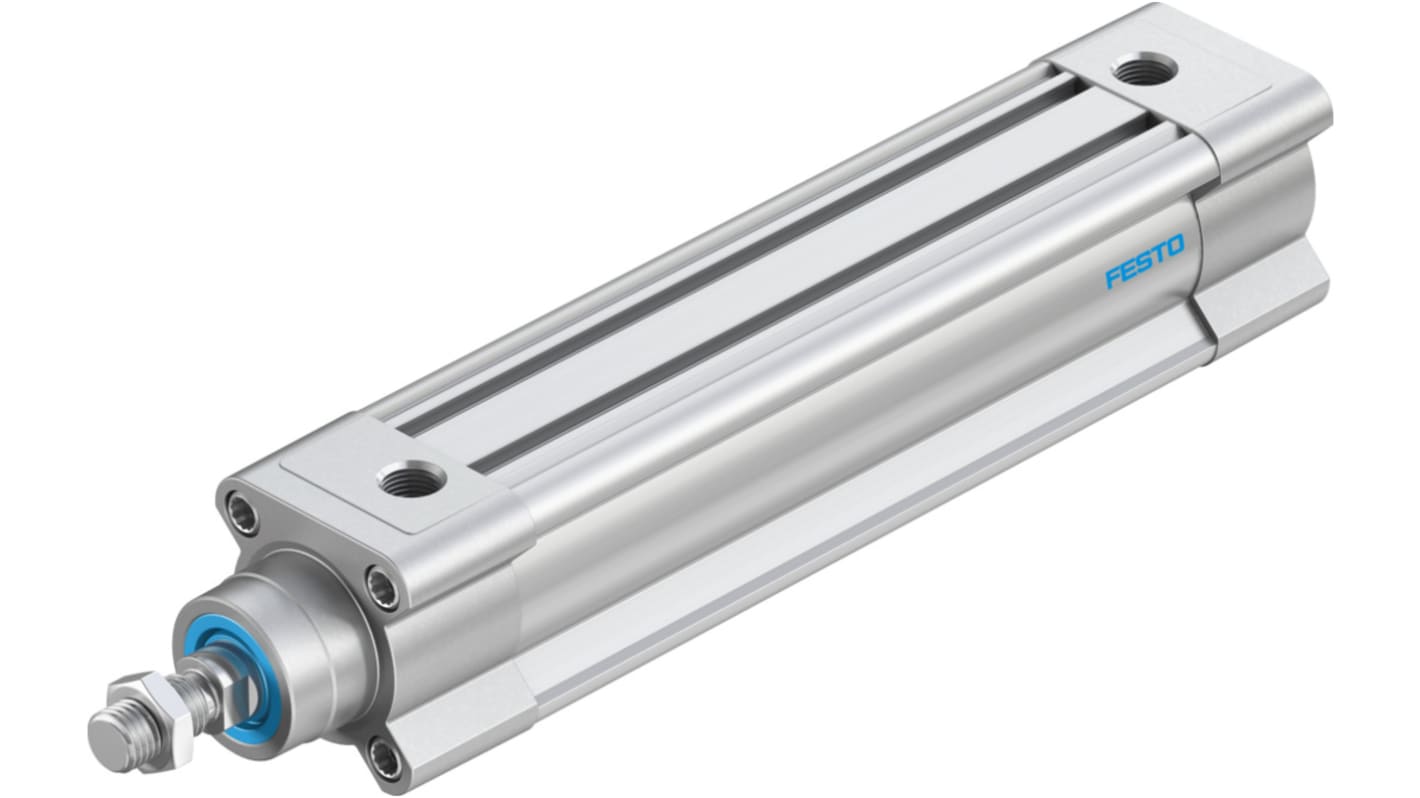

Festo Pneumatic Piston Rod Cylinder - 2123784, 40mm Bore, 150mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5267
- Mfr. Part No.:
- DSBC-40-150-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£150.42
(exc. VAT)
£180.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £150.42 |
*price indicative
- RS Stock No.:
- 121-5267
- Mfr. Part No.:
- DSBC-40-150-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 2123784 | |
Stroke | 150mm | |
Action | Double | |
Bore | 40mm | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 311.9 x 54 x 54mm | |
Length | 311.9mm | |
Width | 54mm | |
Height | 54mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Stroke Interval Weight | 37 g @ 10 mm Stroke | |
VDMA Standard | 24562 | |
Weight | 740g | |
Minimum Operating Temperature | -20°C | |
Test Weight | 740 g @ 0 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2123784 | ||
Stroke 150mm | ||
Action Double | ||
Bore 40mm | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 311.9 x 54 x 54mm | ||
Length 311.9mm | ||
Width 54mm | ||
Height 54mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
VDMA Standard 24562 | ||
Weight 740g | ||
Minimum Operating Temperature -20°C | ||
Test Weight 740 g @ 0 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 150mm Stroke, 40mm Bore - DSBC-40-150-PPSA-N3, Numeric Part Number: 2123784
This pneumatic piston rod cylinder is designed for versatile use in automation and control systems, delivering effective performance in applications requiring substantial force and precise movement, in accordance with ISO 15552 cylinder specifications. The double-acting operation provides efficient actuation, making it suitable for various industrial settings.
Features & Benefits
• Double-acting operation enhances actuation efficiency
• 40mm bore increases power output
• Self-adjusting pneumatic cushioning ensures controlled movement
• G 1/4 pneumatic connection offers installation versatility
• Made from corrosion-resistant materials for durability
• 40mm bore increases power output
• Self-adjusting pneumatic cushioning ensures controlled movement
• G 1/4 pneumatic connection offers installation versatility
• Made from corrosion-resistant materials for durability
Applications
• Suitable for assembly lines in automated tasks
• Useful for material handling in manufacturing processes
• Ideal for packaging machinery requiring precise movement
• Employed in robotics to improve movement control
• Applicable in pneumatic systems that need reliable force delivery
• Useful for material handling in manufacturing processes
• Ideal for packaging machinery requiring precise movement
• Employed in robotics to improve movement control
• Applicable in pneumatic systems that need reliable force delivery
What types of mounting are supported by this cylinder?
It supports mounting via a female thread or using accessories for flexible installation.
How can it be integrate this cylinder with existing systems?
It connects through a G 1/4 pneumatic connection, facilitating straightforward integration.
What is the impact energy rating of the endpoints?
The impact energy in the end positions is 0.7 J, ensuring controlled operation.
What are the pressure limits for effective operation?
It operates effectively within a range of 0.6 bar to 12 bar, providing versatility across applications.
