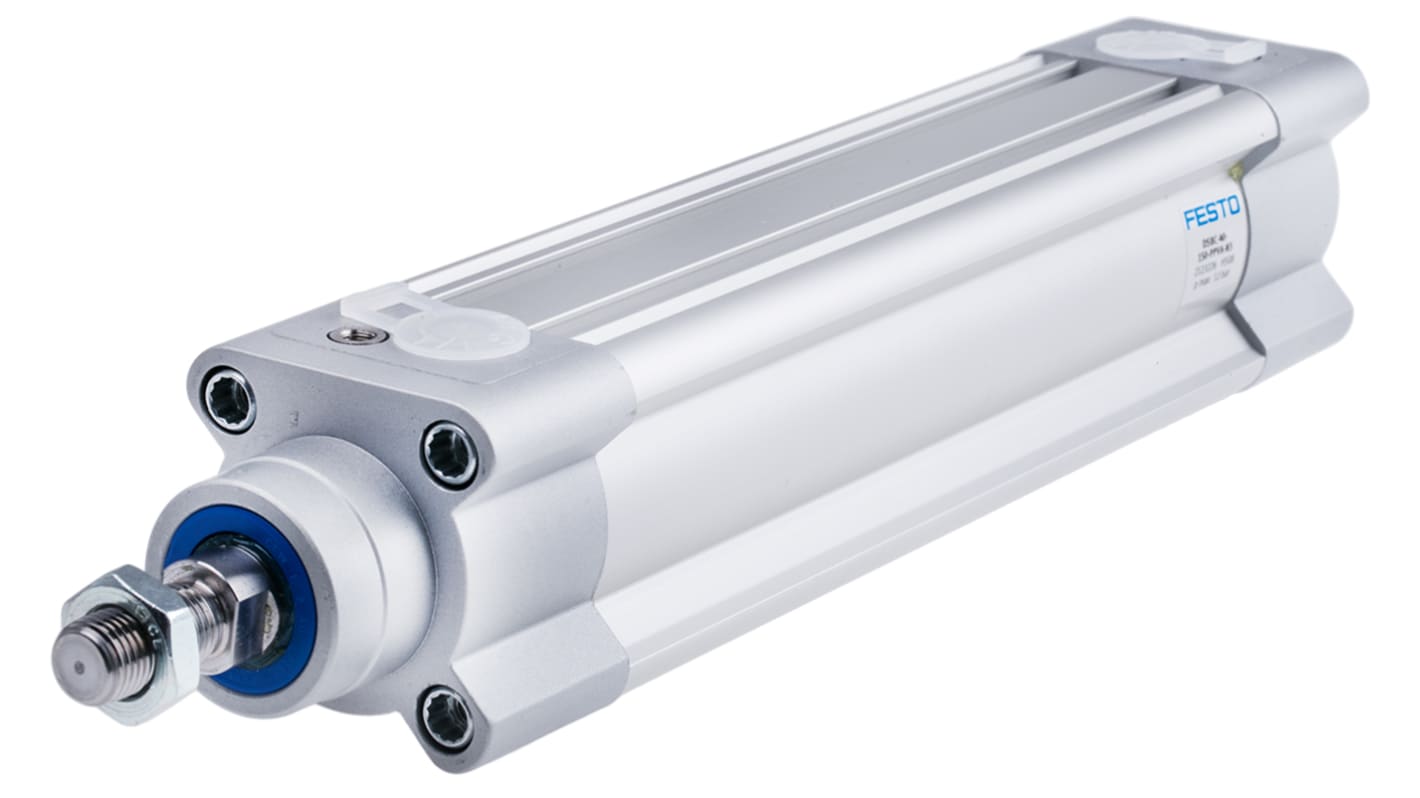

Festo Pneumatic Piston Rod Cylinder - 2123226, 40mm Bore, 150mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5268
- Mfr. Part No.:
- DSBC-40-150-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£154.01
(exc. VAT)
£184.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £154.01 |
*price indicative
- RS Stock No.:
- 121-5268
- Mfr. Part No.:
- DSBC-40-150-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 2123226 | |
| Bore | 40mm | |
| Action | Double | |
| Stroke | 150mm | |
| Port Connection | G 1/4 | |
| Pneumatic Connection | G 1/4 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 311.9 x 54 x 54mm | |
| Width | 54mm | |
| Length | 311.9mm | |
| Height | 54mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Test Weight | 740 g @ 0 mm Stroke | |
| VDMA Standard | 24562 | |
| Maximum Operating Temperature | +80°C | |
| Weight | 740g | |
| Minimum Operating Temperature | -20°C | |
| Stroke Interval Weight | 37 g @ 10 mm Stroke | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2123226 | ||
Bore 40mm | ||
Action Double | ||
Stroke 150mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 311.9 x 54 x 54mm | ||
Width 54mm | ||
Length 311.9mm | ||
Height 54mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 740 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
Maximum Operating Temperature +80°C | ||
Weight 740g | ||
Minimum Operating Temperature -20°C | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, Air Cushion Type, 12 Bar Maximum Operating Pressure - DSBC-40-150-PPVA-N3
When you need to make sure your system's components are in the best position for the job, use this pneumatic piston rod cylinder from Festo. Thanks to its double-acting rod, you can control movement in both directions, meaning precise clamping and placing is no problem. A pocket of air at each end absorbs excess energy to ensure movements are smooth and internal parts won't wear out in a hurry. This cushioning is adjustable to compensate for changing loads and to keep performance at its peak. There are two slots on the housing, making it a cinch to add position-sensing devices and automate processes. As it mounts in any position, you can place this cylinder exactly where it's needed.
Features & Benefits
• 150mm stroke supports lengthy movements
• Coated aluminium body and high-alloy steel rod for durability
• Wide operating temperature range of -20°C to +80°C to handle harsh conditions
• Coated aluminium body and high-alloy steel rod for durability
• Wide operating temperature range of -20°C to +80°C to handle harsh conditions
Applications
• Lifting and hoisting equipment
• Industrial conveyors
• Gates and doors
• Robotics systems
• Industrial conveyors
• Gates and doors
• Robotics systems
What's the operating pressure range of this pneumatic piston rod cylinder?
It has an operating pressure between 0.6 and 12 bar. This means you can use this pneumatic cylinder with both low-power and medium-power systems.
