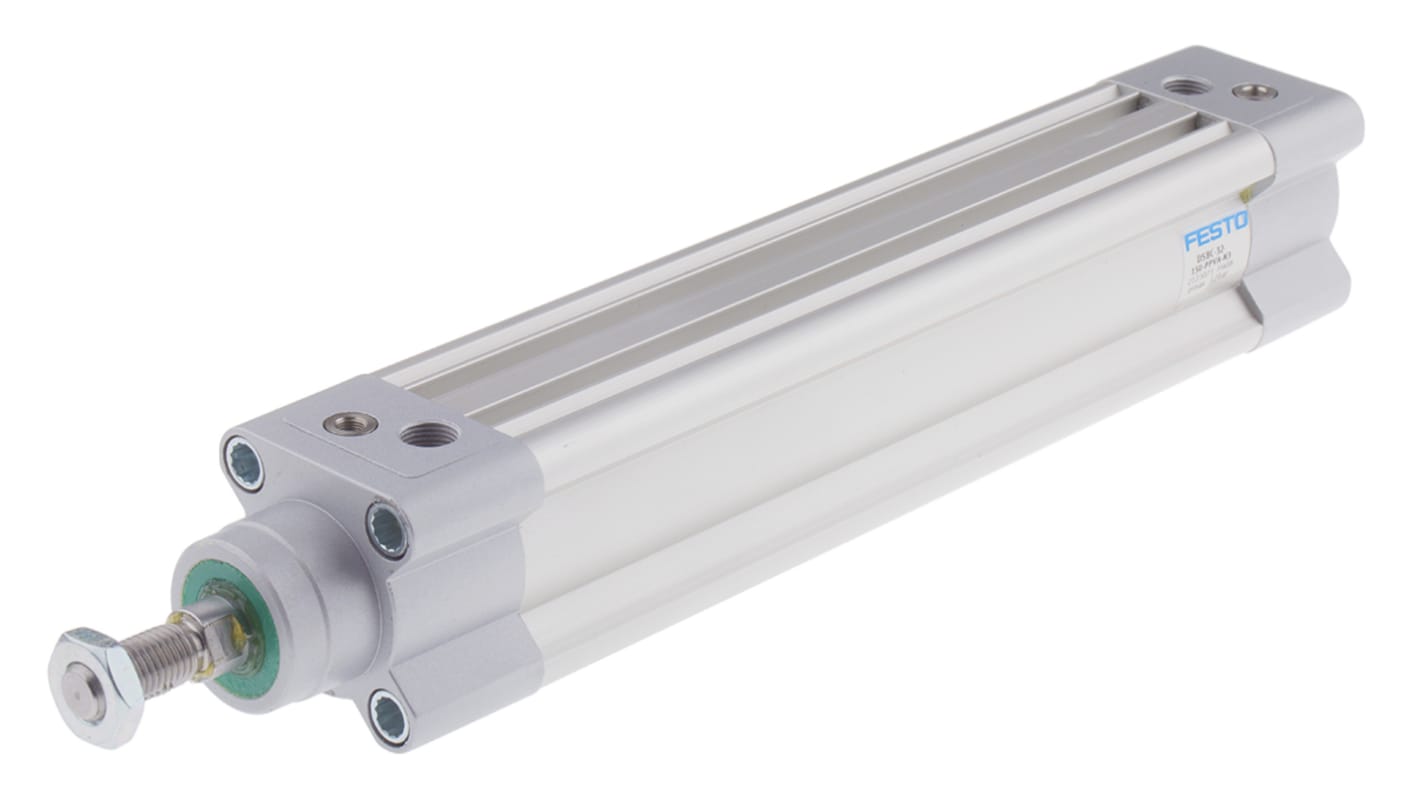

Festo Pneumatic Piston Rod Cylinder - 2123073, 32mm Bore, 150mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5235
- Mfr. Part No.:
- DSBC-32-150-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£134.93
(exc. VAT)
£161.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.93 |
*price indicative
- RS Stock No.:
- 121-5235
- Mfr. Part No.:
- DSBC-32-150-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 2123073 | |
| Action | Double | |
| Stroke | 150mm | |
| Bore | 32mm | |
| Port Connection | G 1/8 | |
| Pneumatic Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 295.1 x 45 x 45mm | |
| Length | 295.1mm | |
| Height | 45mm | |
| Width | 45mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| VDMA Standard | 24562 | |
| Test Weight | 465 g @ 0 mm Stroke | |
| Maximum Operating Temperature | +80°C | |
| Weight | 465g | |
| Minimum Operating Temperature | -20°C | |
| Stroke Interval Weight | 27 g @ 10 mm Stroke | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2123073 | ||
Action Double | ||
Stroke 150mm | ||
Bore 32mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 295.1 x 45 x 45mm | ||
Length 295.1mm | ||
Height 45mm | ||
Width 45mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Test Weight 465 g @ 0 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
Weight 465g | ||
Minimum Operating Temperature -20°C | ||
Stroke Interval Weight 27 g @ 10 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, Air Cushioning Type, 12 Bar Maximum Operating Pressure - DSBC-32-150-PPVA-N3
Looking to automate your processes? Make a move with this pneumatic piston rod cylinder from Festo. It's double-acting, so it can push and pull loads. Air cushioning keeps these motions smooth. The cushioning is adjustable at both ends, meaning you can tweak it to match specific loads and reduce machine wear. Built with a standard 32mm bore, the unit's easy to combine with off-the-shelf components to simplify machine builds. Position detection is possible with a proximity sensor (121-5836), so you can fully integrate it with your system. The two slots in the cylinder barrel enable the sensor to sit flush with the housing, ensuring extra space isn't taken up.
Features & Benefits
• Suitable for dry running and lubricated operation, to suit your needs
• Wrought-aluminium alloy and high-alloy steel construction gives it a long service life
• Threaded rod makes it a cinch to add clamping and swivelling accessories
• Wrought-aluminium alloy and high-alloy steel construction gives it a long service life
• Threaded rod makes it a cinch to add clamping and swivelling accessories
Applications
• Coating systems
• Process control
• Industrial conveyors
• Tool heads
• Process control
• Industrial conveyors
• Tool heads
Is it easy to adjust the cushioning on this pneumatic cylinder?
The cushioning is easy to adjust with a standard screwdriver via the two holes positioned next to the ports. As the connections and settings are on the same side, they're easy to access when changes need to be made.
