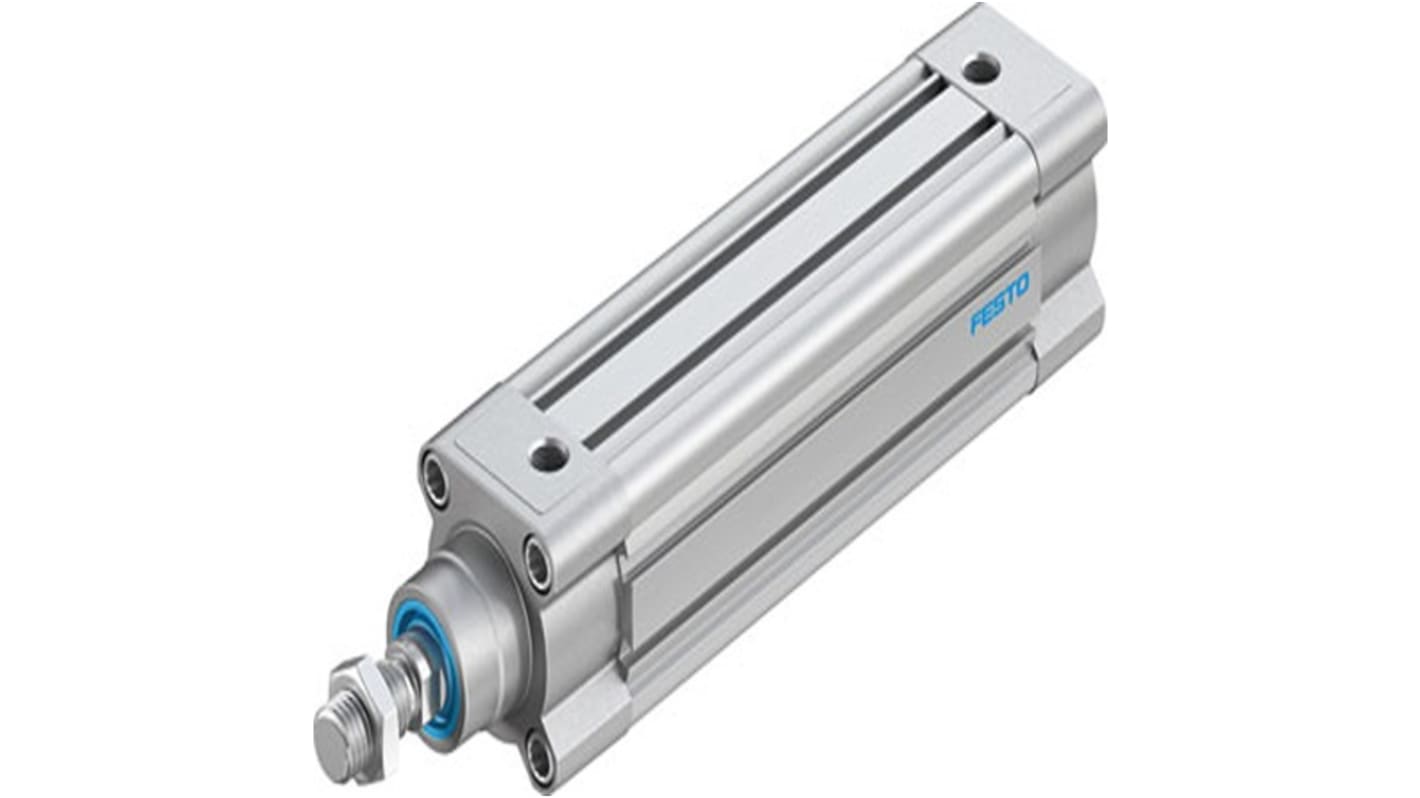

Festo ISO Standard Cylinder - 3659501 50 mm Bore, 150 mm DSBC Series, Double Acting Acting
- RS Stock No.:
- 275-4587
- Mfr. Part No.:
- DSBC-50-150-D3-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£186.17
(exc. VAT)
£223.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £186.17 |
*price indicative
- RS Stock No.:
- 275-4587
- Mfr. Part No.:
- DSBC-50-150-D3-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSBC | |
| Product Type | ISO Standard Cylinder | |
| Model Number | 3659501 | |
| Bore Size | 50mm | |
| Action Type | Double Acting | |
| Mount Type | Female Thread | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Die Cast Aluminium | |
| Stroke Length | 150mm | |
| Maximum Operating Pressure | 1.2 Mpa | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | M16 x 1.5 | |
| Piston Rod Gender | Male | |
| Maximum Operating Temperature | 80°C | |
| Weight | 1216g | |
| Standards/Approvals | ISO 15552 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSBC | ||
Product Type ISO Standard Cylinder | ||
Model Number 3659501 | ||
Bore Size 50mm | ||
Action Type Double Acting | ||
Mount Type Female Thread | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Die Cast Aluminium | ||
Stroke Length 150mm | ||
Maximum Operating Pressure 1.2 Mpa | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size M16 x 1.5 | ||
Piston Rod Gender Male | ||
Maximum Operating Temperature 80°C | ||
Weight 1216g | ||
Standards/Approvals ISO 15552 | ||
- COO (Country of Origin):
- DE
The Festo ISO cylinder that has self adjusting pneumatic end position cushioning, position detection via proximity switch. The piston rod is made up of high alloy steel material, it has male thread end piston rod.
RoHS compliant
Corrosion resistance
