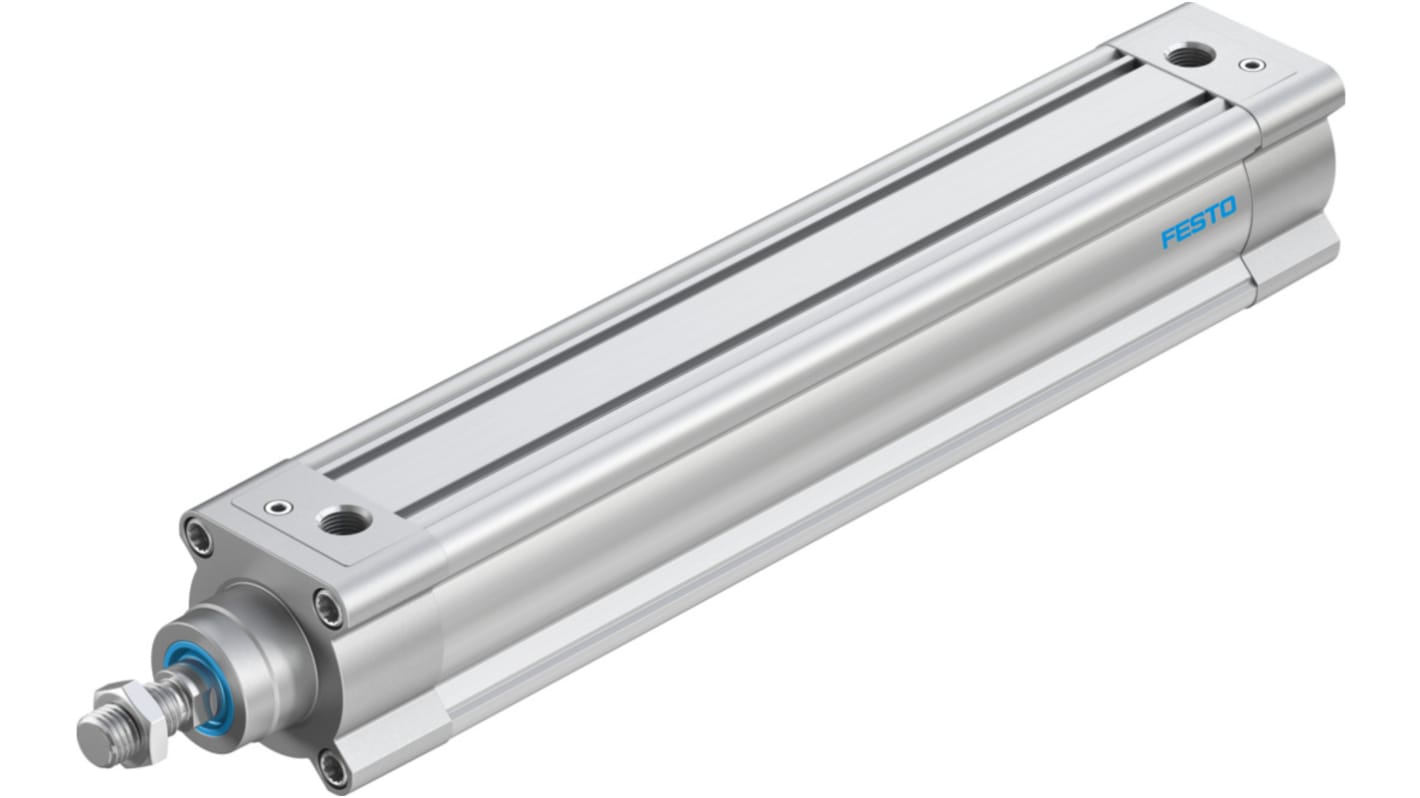

Festo Pneumatic Piston Rod Cylinder - 1383587, 63mm Bore, 320mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5199
- Mfr. Part No.:
- DSBC-63-320-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£229.63
(exc. VAT)
£275.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £229.63 |
*price indicative
- RS Stock No.:
- 121-5199
- Mfr. Part No.:
- DSBC-63-320-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383587 | |
Stroke | 320mm | |
Action | Double | |
Bore | 63mm | |
Pneumatic Connection | G 3/8 | |
Port Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 513.1 x 75 x 75mm | |
Width | 75mm | |
Length | 513.1mm | |
Height | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 1740 g @ 0 mm Stroke | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 62 g @ 10 mm Stroke | |
Weight | 1.7kg | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383587 | ||
Stroke 320mm | ||
Action Double | ||
Bore 63mm | ||
Pneumatic Connection G 3/8 | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 513.1 x 75 x 75mm | ||
Width 75mm | ||
Length 513.1mm | ||
Height 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1740 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Weight 1.7kg | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 320mm Stroke, 63mm Bore - DSBC-63-320-PPVA-N3, Numeric Part Number: 1383587
This pneumatic piston rod cylinder is designed for applications requiring precision and strength. With a stroke length of 320mm, it ensures efficient operation in dynamic environments. It on forms to the ISO 15552 standard, making it an ideal choice for professionals in automation, electronics, and mechanical disciplines.
Features & Benefits
• Double-acting design enhances versatility in varying conditions
• Adjustable pneumatic cushioning allows for smooth operation
• Maximum operating pressure of 12 bar accommodates demanding tasks
• Male piston rod thread facilitates easy installation and compatibility
• Proven corrosion resistance class CRC 2 contributes to longevity
• Supports lubricated operation, providing flexibility in usage
• Adjustable pneumatic cushioning allows for smooth operation
• Maximum operating pressure of 12 bar accommodates demanding tasks
• Male piston rod thread facilitates easy installation and compatibility
• Proven corrosion resistance class CRC 2 contributes to longevity
• Supports lubricated operation, providing flexibility in usage
Applications
• Integrated with automated machinery for precise movements
• Ideal for managing heavy loads in production lines
• Utilised in testing equipment requiring reliable motion
• Commonly used in assembly systems to improve efficiency
• Employed in pneumatic handling systems for consistent functionality
• Ideal for managing heavy loads in production lines
• Utilised in testing equipment requiring reliable motion
• Commonly used in assembly systems to improve efficiency
• Employed in pneumatic handling systems for consistent functionality
Is the cylinder compatible with all types of compressed air systems?
It operates effectively with compressed air that meets ISO 8573-12010 standards, ensuring proper quality for compatibility.
What materials are used in the cylinder's construction?
The cover is made of treated die-cast aluminium for durability, while the piston rod is constructed from high-alloy steel for strength.
Can this product be used in extreme temperature environments?
It functions efficiently within a temperature range of -20 to +80°C, making it suitable for various conditions.
What is the proper installation process for this component?
Installation can be achieved through a female thread or with suitable accessories, ensuring a secure fit in your system.
