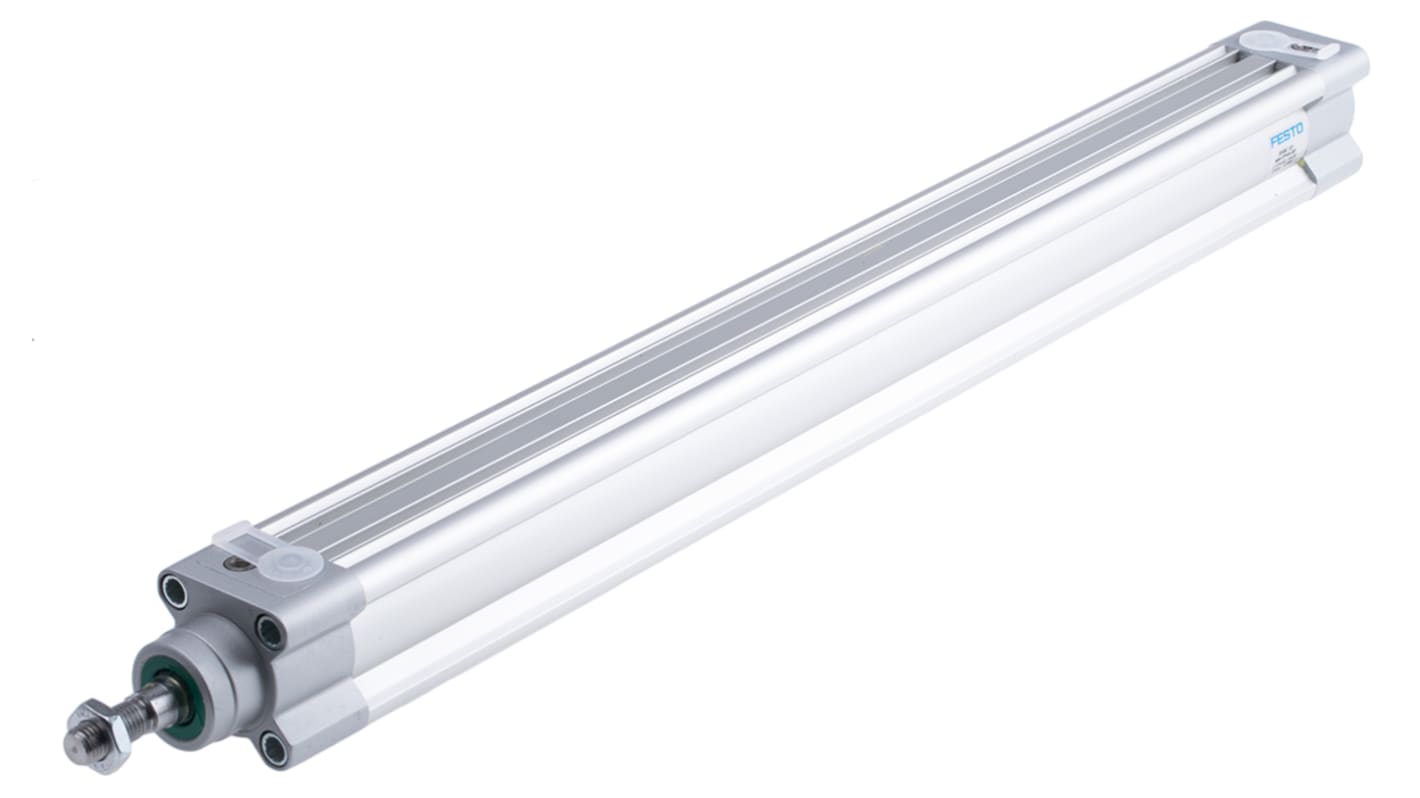

Festo Pneumatic Piston Rod Cylinder - 1376431, 32mm Bore, 320mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5249
- Mfr. Part No.:
- DSBC-32-320-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£145.57
(exc. VAT)
£174.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £145.57 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£144.35
(exc. VAT)
£173.22
(inc. VAT)
- RS Stock No.:
- 121-5249
- Mfr. Part No.:
- DSBC-32-320-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 1376431 | |
| Stroke | 320mm | |
| Bore | 32mm | |
| Action | Double | |
| Pneumatic Connection | G 1/8 | |
| Port Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 465.1 x 45 x 45mm | |
| Height | 45mm | |
| Length | 465.1mm | |
| Width | 45mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| VDMA Standard | 24562 | |
| Stroke Interval Weight | 27 g @ 10 mm Stroke | |
| Test Weight | 465 g @ 0 mm Stroke | |
| Minimum Operating Temperature | -20°C | |
| Weight | 465g | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376431 | ||
Stroke 320mm | ||
Bore 32mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 465.1 x 45 x 45mm | ||
Height 45mm | ||
Length 465.1mm | ||
Width 45mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 27 g @ 10 mm Stroke | ||
Test Weight 465 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Weight 465g | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, G1/8 Port Connection, High-Alloy Steel Piston Rod Material - DSBC-32-320-PPVA-N3
Get loads moving in the right direction with this pneumatic piston rod cylinder from Festo. This double-acting device uses compressed air to extend and retract its piston rod, giving you precise forward and backward movement. It features a male threaded end for a secure connection that won't come loose in the event of heavy vibrations. TPE-U seals help to prevent leakage for efficient performance. The piston rod is made of high-alloy steel for resistance to impact and corrosion, so you can rest assured it holds up in harsh conditions.
Features & Benefits
• Operates in pressures between 0.6 and 12 bar for use in low and high-pressure applications
• G1/8 port connection for compatibility with standard equipment
• Stroke length of 320mm for long-range movement
• Safe for use in challenging settings, thanks to a broad operating temperature range between -20°C and +80°C
• G1/8 port connection for compatibility with standard equipment
• Stroke length of 320mm for long-range movement
• Safe for use in challenging settings, thanks to a broad operating temperature range between -20°C and +80°C
Applications
• Lifts and elevators
• Robotics and automation
• Materials handling equipment
• Robotics and automation
• Materials handling equipment
What's the most suitable assembly position for this cylinder?
It can be assembled in any position, giving you flexibility in your setup.
