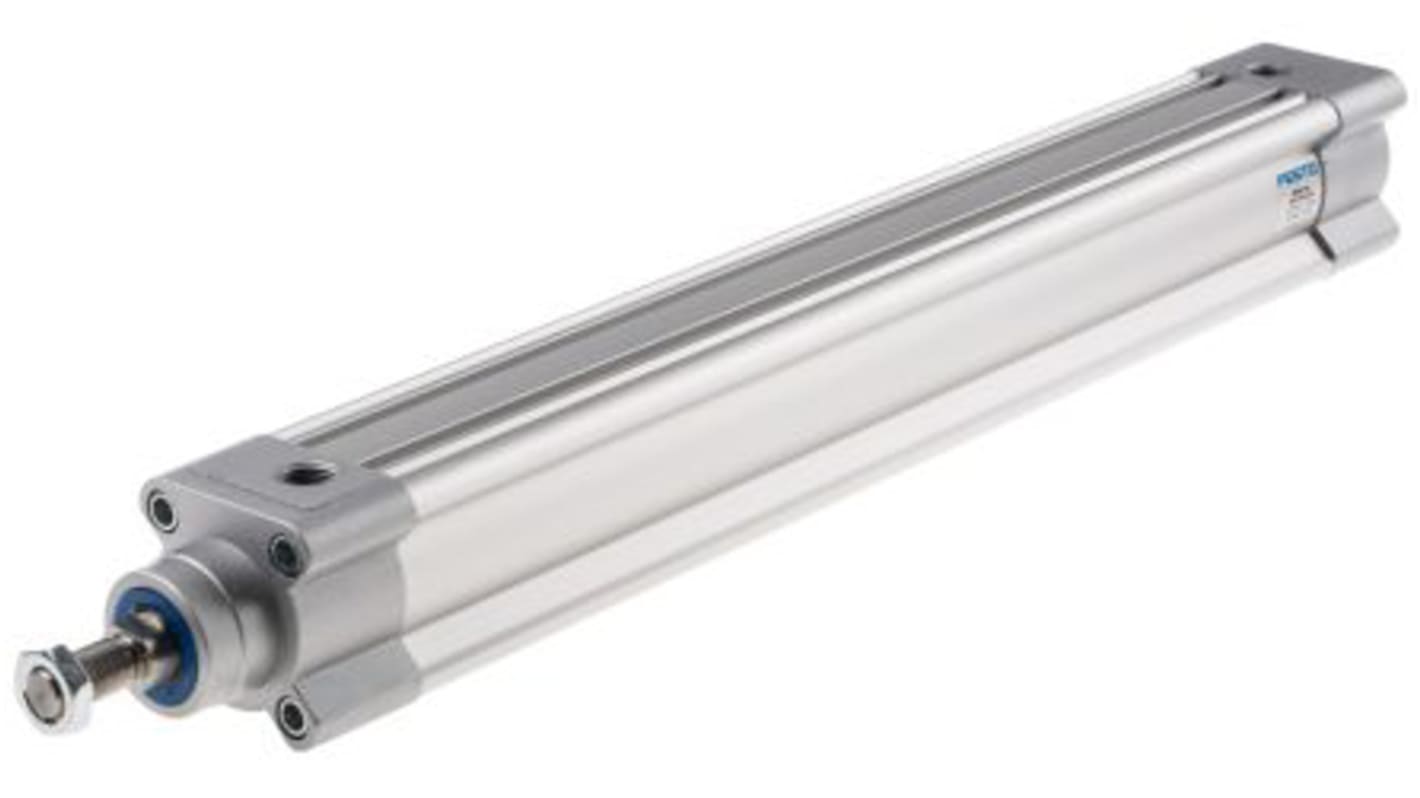

Festo Pneumatic Piston Rod Cylinder - 1376665, 40mm Bore, 320mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 136-6490
- Mfr. Part No.:
- DSBC-40-320-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£168.26
(exc. VAT)
£201.91
(inc. VAT)
FREE delivery for orders over £50.00
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 + | £168.26 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£166.90
(exc. VAT)
£200.28
(inc. VAT)
- RS Stock No.:
- 136-6490
- Mfr. Part No.:
- DSBC-40-320-PPVA-N3
- Brand:
- Festo
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376665 | |
Bore | 40mm | |
Action | Double | |
Stroke | 320mm | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Length | 161.9mm | |
Width | 54mm | |
Height | 54mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Weight | 740g | |
Maximum Operating Temperature | +80°C | |
Test Weight | 740 g @ 0 mm Stroke | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 37 g @ 10 mm stroke | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376665 | ||
Bore 40mm | ||
Action Double | ||
Stroke 320mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Length 161.9mm | ||
Width 54mm | ||
Height 54mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Weight 740g | ||
Maximum Operating Temperature +80°C | ||
Test Weight 740 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 37 g @ 10 mm stroke | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
DSBC Series Profile Cylinders - Adjustable Pneumatic Cushioning
Adjustable Pneumatic Cushioning
Features and Benefits
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Adjustable end cushioning helping to reduce noise and vibration
High-alloy steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications
Double acting operation
How do I mount the pneumatic actuator?
