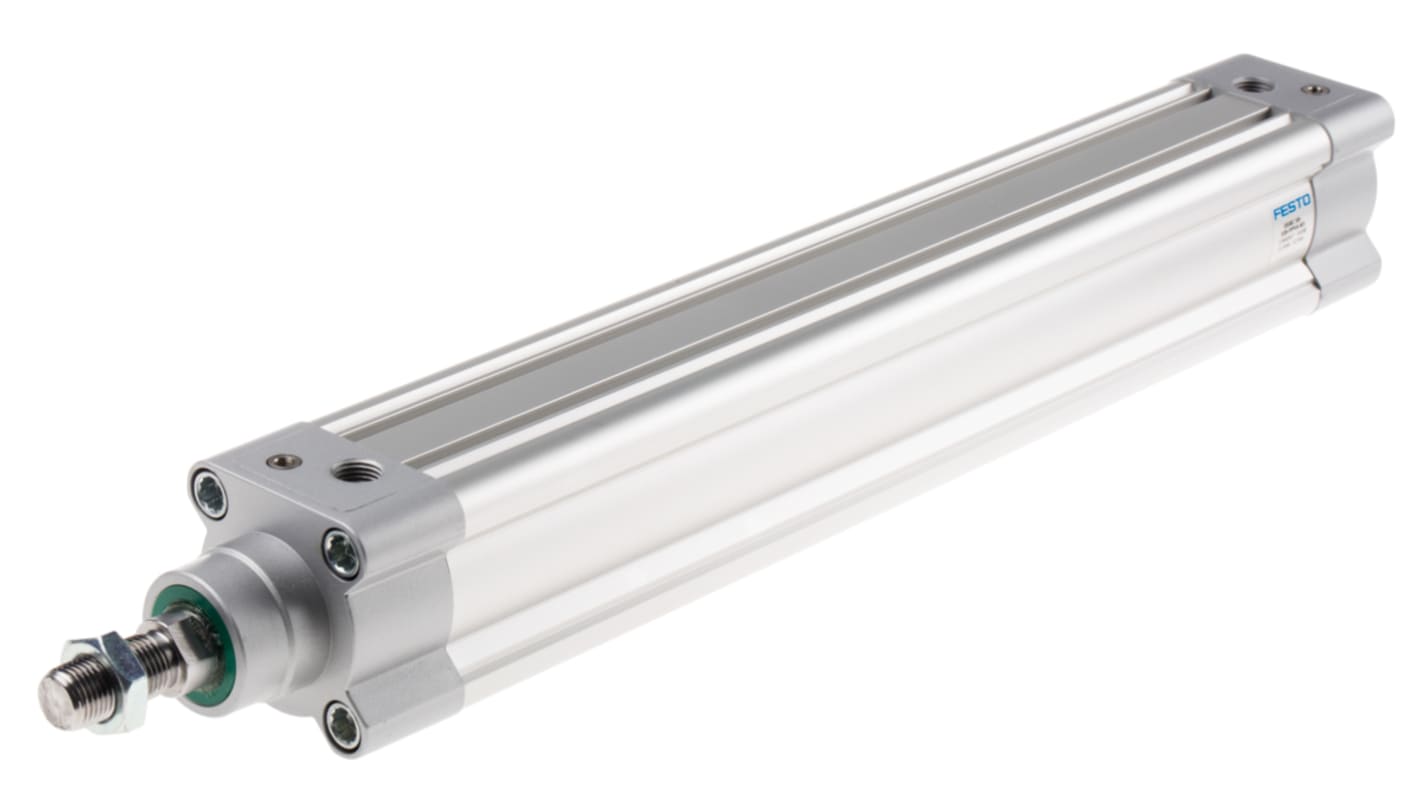

Festo Pneumatic Piston Rod Cylinder - 1366957, 50mm Bore, 320mm Stroke, DSBC Series, Double Acting

View this category

Subtotal (1 unit)*

£196.31

(exc. VAT)

£235.57

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 8 left, ready to ship
  • Plus 6 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£196.31

*price indicative

RS Stock No.:
121-4778
Mfr. Part No.:
DSBC-50-320-PPVA-N3
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

DSBC

Model Number p

1366957

Bore

50mm

Stroke

320mm

Action

Double

Pneumatic Connection

G 1/4

Port Connection

G 1/4

Piston Rod Thread Gender

Male

Cushioning Type

Air

Dimensions

497.8 x 64 x 64mm

Height

64mm

Width

64mm

Length

497.8mm

Maximum Operating Pressure

12 bar

ISO Standard

15552

Stroke Interval Weight

56 g @ 10 mm Stroke

Test Weight

1190 g @ 0 mm Stroke

Minimum Operating Temperature

-20°C

Weight

1.2kg

Maximum Operating Temperature

+80°C

VDMA Standard

24562

COO (Country of Origin):
DE

Festo Pneumatic Piston Rod Cylinder, Adjustable Cushioning, G1/4 Pneumatic Connection - DSBC-50-320-PPVA-N3


Push your machine component in a linear direction using this pneumatic piston rod cylinder from Festo. Its double-acting design means it comes with two open ports that let air in and out to move the piston rod back and forth. The unit features robust PPV cushioning on both ends that absorbs the force of the piston, making it suitable for medium to heavy loads and high-speed systems. As this cushioning is adjustable, you'll have free rein to adapt it to suit your setup.

Features & Benefits


• Mountable in any position for flexibility
• Pre-cut slots accommodate a proximity sensor
• Threaded G1/4 pneumatic connection for quick, tool-free mounting
• Durable TPE-U(PU) seals help prevent leakage
• High-alloy steel piston rod offers resistance to corrosion

Applications


• Water treatment facilities
• Conveyor belts
• Power plants
• Aerospace engineering

What's the operating pressure of this cylinder?


With an operating pressure range between 0.4 and 12 bar, this cylinder can withstand a spectrum of applications.

Can I lubricate this cylinder?


Yes, you can lubricate this cylinder to help reduce friction and mechanical wear, but it's not essential. It's important to know that after you've lubricated it once, you'll need to keep doing so to maintain operation.
