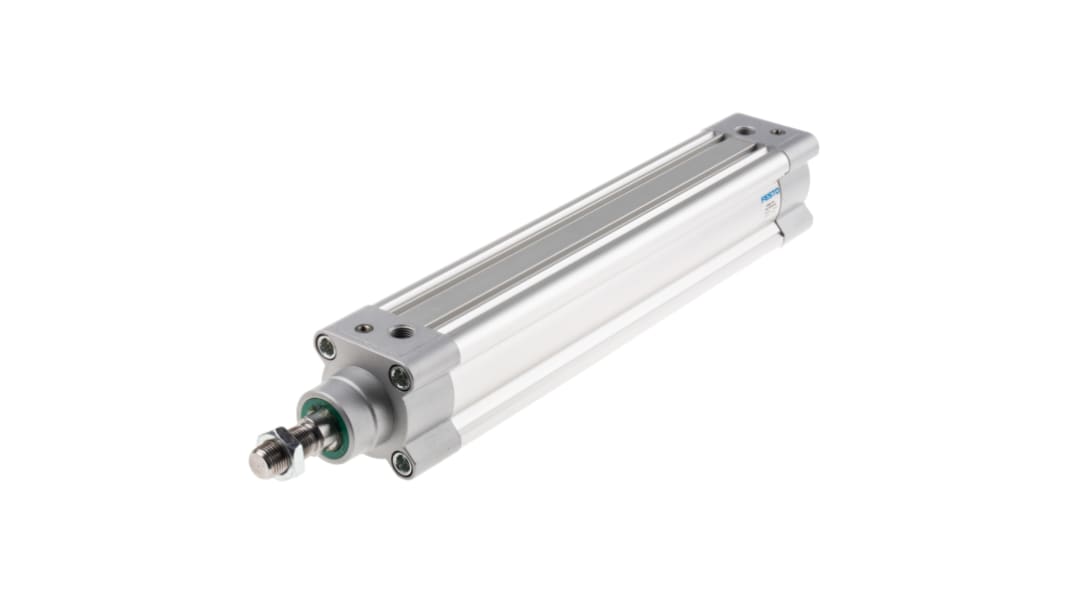

Festo Pneumatic Piston Rod Cylinder - 1366956, 50mm Bore, 250mm Stroke, DSBC Series, Double Acting

RS Stock No.:: 121-4772
Mfr. Part No.:: DSBC-50-250-PPVA-N3
Brand:: Festo

Festo Pneumatic Piston Rod Cylinder - 1366956, 50mm Bore, 250mm Stroke, DSBC Series, Double Acting

Subtotal (1 unit)*

£188.88

(exc. VAT)

£226.66

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£188.88

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Festo Pneumatic Piston Rod Cylinder - 1376311, 50mm Bore, 250mm Stroke, DSBC Series, Double Acting

RS Stock No.: 121-4771

Each

£184.75

(exc. VAT)

£221.70

(inc. VAT)

RS Stock No.:: 121-4772
Mfr. Part No.:: DSBC-50-250-PPVA-N3
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Manufacturer Series	DSBC
	Model Number p	1366956
	Bore	50mm
	Action	Double
	Stroke	250mm
	Pneumatic Connection	G 1/4
	Port Connection	G 1/4
	Piston Rod Thread Gender	Male
	Cushioning Type	Air
	Dimensions	427.8 x 64 x 64mm
	Height	64mm
	Length	427.8mm
	Width	64mm
	Maximum Operating Pressure	12 bar
	ISO Standard	15552
	Maximum Operating Temperature	+80°C
	Test Weight	1190 g @ 0 mm Stroke
	Weight	1.2kg
	Stroke Interval Weight	56 g @ 10 mm Stroke
	VDMA Standard	24562
	Minimum Operating Temperature	-20°C

	Select all
	Brand Festo
	Manufacturer Series DSBC
	Model Number p 1366956
	Bore 50mm
	Action Double
	Stroke 250mm
	Pneumatic Connection G 1/4
	Port Connection G 1/4
	Piston Rod Thread Gender Male
	Cushioning Type Air
	Dimensions 427.8 x 64 x 64mm
	Height 64mm
	Length 427.8mm
	Width 64mm
	Maximum Operating Pressure 12 bar
	ISO Standard 15552
	Maximum Operating Temperature +80°C
	Test Weight 1190 g @ 0 mm Stroke
	Weight 1.2kg
	Stroke Interval Weight 56 g @ 10 mm Stroke
	VDMA Standard 24562
	Minimum Operating Temperature -20°C

COO (Country of Origin):: DE

Festo Pneumatic Piston Rod Cylinder, G1/4 Thread, Wrought Aluminium Alloy Housing - DSBC-50-250-PPVA-N3

Need a hand moving loads in different directions? Choose this pneumatic piston rod cylinder from Festo. It's a double-acting device, which means that it has air ports at each end that open and close alternately to move its piston forward and backwards. This makes it the right choice for operations like opening and closing machine doors. Thanks to durable wrought aluminium alloy housing, this piece of kit holds its own against impact and corrosion, so it's a reliable workmate in tough settings.

Features & Benefits

• Wide operating pressure range of 0.4 to 12 bar for versatile use in light-duty to heavy-duty applications
• Adjustable PPV cushioning at both ends reduces noise and vibration for optimal performance
• Can be assembled in any position for flexibility
• Integrated TPE-U(PU) seals block out dust and contaminants, ensuring a long service life

Applications

• Material handling equipment
• Assembly lines
• Airport terminals

What's the temperature tolerance of this piston rod cylinder?

This cylinder withstands between -20°C and +80°C of operational temperature, making it a reliable choice for demanding conditions.

How much force does this cylinder deliver?

At 6 bar operating pressure, this unit packs an advance stroke force of 1178N and a return stroke of 990N, so it's just the thing for heavy-duty operations.
