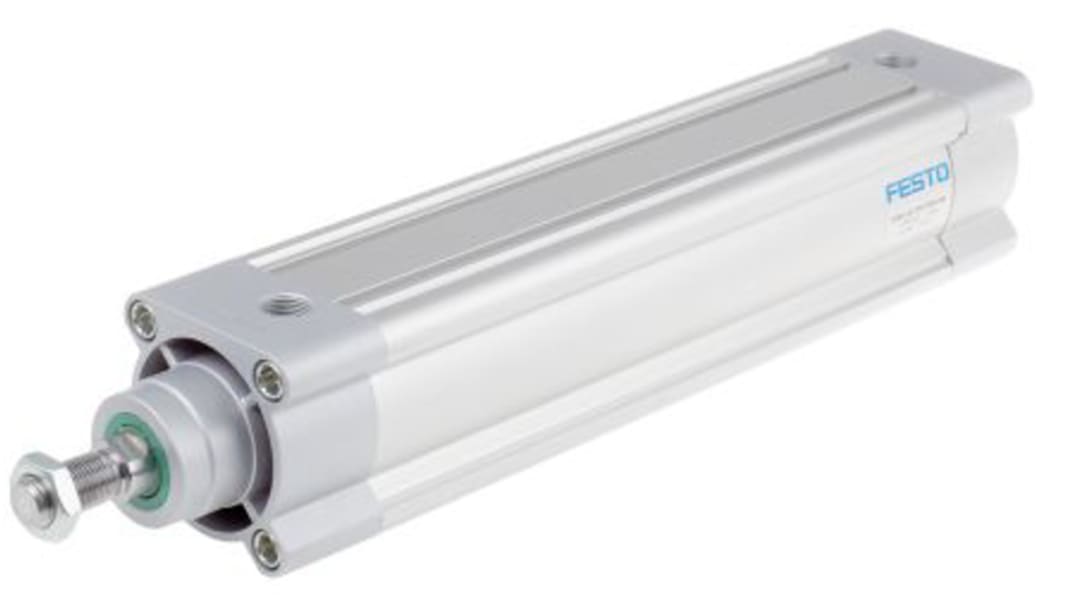

Festo Pneumatic Piston Rod Cylinder - 1383586, 63mm Bore, 250mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5195
- Mfr. Part No.:
- DSBC-63-250-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£224.06
(exc. VAT)
£268.87
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 07 November 2025
Units | Per unit |
---|---|
1 + | £224.06 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£219.20
(exc. VAT)
£263.04
(inc. VAT)
- RS Stock No.:
- 121-5195
- Mfr. Part No.:
- DSBC-63-250-PPVA-N3
- Brand:
- Festo
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383586 | |
Action | Double | |
Bore | 63mm | |
Stroke | 250mm | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Dimensions | 443.1 x 75 x 75mm | |
Width | 75mm | |
Length | 443.1mm | |
Height | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Minimum Operating Temperature | -20°C | |
Weight | 1.7kg | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 62 g @ 10 mm Stroke | |
Test Weight | 1740 g @ 0 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383586 | ||
Action Double | ||
Bore 63mm | ||
Stroke 250mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Dimensions 443.1 x 75 x 75mm | ||
Width 75mm | ||
Length 443.1mm | ||
Height 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
Weight 1.7kg | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Test Weight 1740 g @ 0 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, With Air Cushioning, 12 Bar Maximum Pressure - DSBC-63-250-PPVA-N3
• Broad ambient temperature range between -20°C and +80°C, so it's suitable for use in extreme settings
• High-alloy steel piston rod resists corrosion and wear for an extended service life
Applications
• Food and beverage manufacturing
• Transportation industry
• Packaging facilities
Can I mount a proximity sensor to this pneumatic piston rod cylinder?
