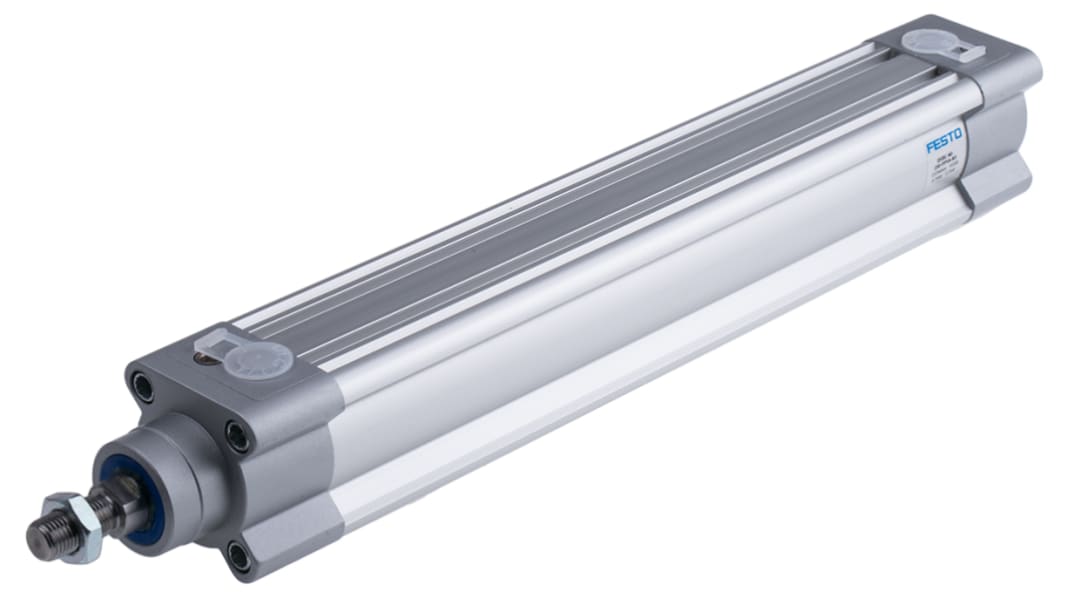

Festo Pneumatic Piston Rod Cylinder - 1376664, 40mm Bore, 250mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5276
- Mfr. Part No.:
- DSBC-40-250-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£162.42
(exc. VAT)
£194.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £162.42 |
*price indicative
- RS Stock No.:
- 121-5276
- Mfr. Part No.:
- DSBC-40-250-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376664 | |
Stroke | 250mm | |
Action | Double | |
Bore | 40mm | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Dimensions | 411.9 x 54 x 54mm | |
Width | 54mm | |
Height | 54mm | |
Length | 411.9mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Test Weight | 740 g @ 0 mm Stroke | |
Stroke Interval Weight | 37 g @ 10 mm Stroke | |
Minimum Operating Temperature | -20°C | |
Weight | 740g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376664 | ||
Stroke 250mm | ||
Action Double | ||
Bore 40mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Dimensions 411.9 x 54 x 54mm | ||
Width 54mm | ||
Height 54mm | ||
Length 411.9mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Test Weight 740 g @ 0 mm Stroke | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Weight 740g | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, Male Thread, G1/4 Pneumatic Connection - DSBC-40-250-PPVA-N3
Moving loads in your compressed air system is a breeze with this pneumatic piston rod cylinder from Festo. It's a powerful choice that generates up to 754N of force thanks to its 250mm stroke and 40mm bore, making it well-suited to high-speed applications. The unit's double-action design means compressed air drives the piston in both directions, so it's ideal for packaging equipment or factory automation. As it works in a pressure range between 0.6 and 12 bar, it's a versatile option. PU seals mean that contaminants are kept at bay, so you can rest assured this cylinder will go on delivering top-notch performance over the long term.
Features & Benefits
• Air cushioning system minimises impact to increase longevity and reduce noise
• High alloy steel piston resists mechanical stress and corrosion, for a long service life
• High alloy steel piston resists mechanical stress and corrosion, for a long service life
Applications
• Textile industry
• Pulp and paper mills
• Hospitals and medical centres
• Pulp and paper mills
• Hospitals and medical centres
What size is this cylinder?
It has compact dimensions of 411.9 (L) x 54 (W) x 54mm (H), so it fits neatly into busy systems.
How much does the cylinder weigh?
This cylinder weighs in at just 740g, so it won't strain your system.
