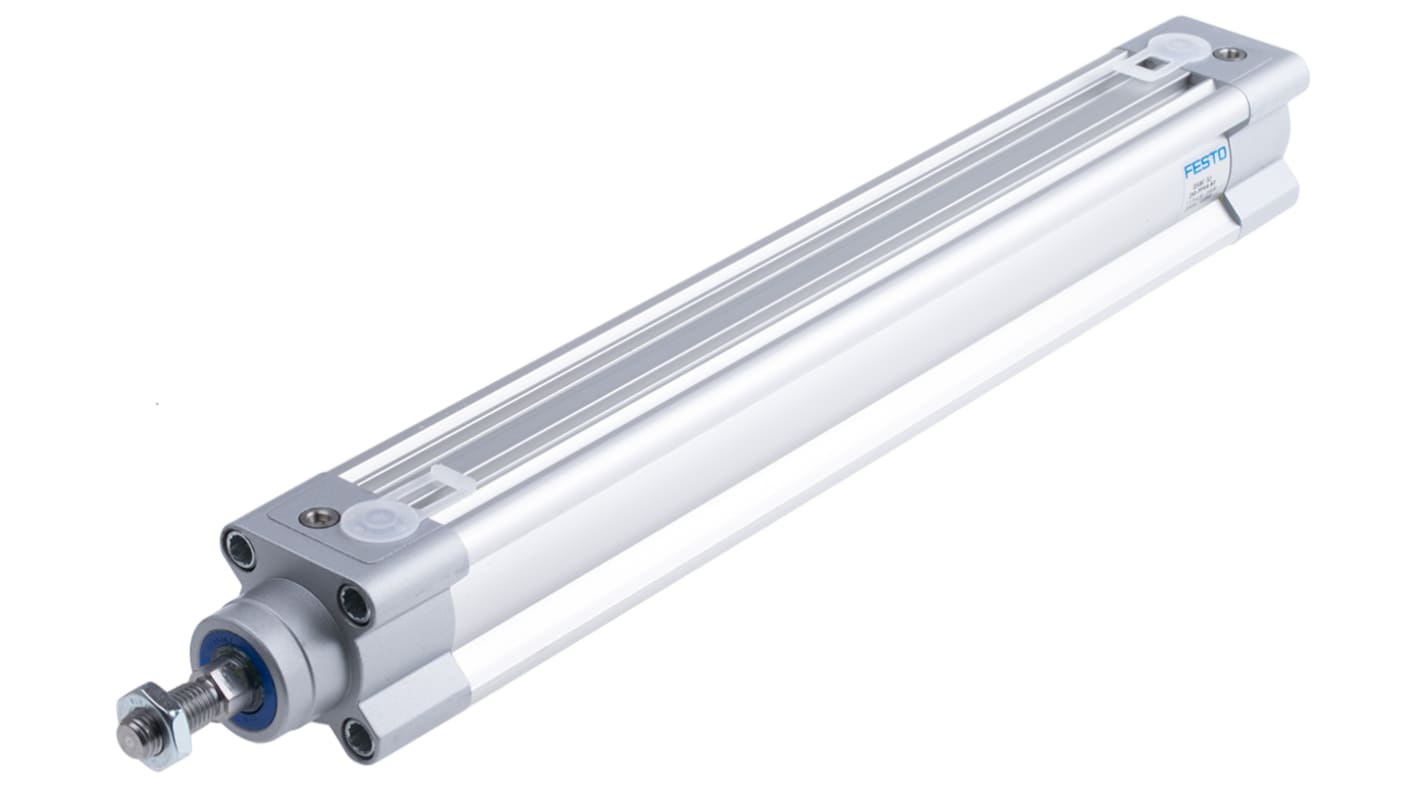

Festo Pneumatic Piston Rod Cylinder - 1376430, 32mm Bore, 250mm Stroke, DSBC Series, Double Acting

RS Stock No.:: 121-5243
Mfr. Part No.:: DSBC-32-250-PPVA-N3
Brand:: Festo

Festo Pneumatic Piston Rod Cylinder - 1376430, 32mm Bore, 250mm Stroke, DSBC Series, Double Acting

Subtotal (1 unit)*

£141.24

(exc. VAT)

£169.49

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

14 unit(s) ready to ship
Plus 10 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£141.24

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Festo Pneumatic Piston Rod Cylinder - 1376475, 32mm Bore, 250mm Stroke, DSBC Series, Double Acting

RS Stock No.: 121-5242

Each

£138.13

(exc. VAT)

£165.76

(inc. VAT)

RS Stock No.:: 121-5243
Mfr. Part No.:: DSBC-32-250-PPVA-N3
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Manufacturer Series	DSBC
	Model Number p	1376430
	Bore	32mm
	Action	Double
	Stroke	250mm
	Port Connection	G 1/8
	Pneumatic Connection	G 1/8
	Piston Rod Thread Gender	Male
	Cushioning Type	Pneumatic Cushioning
	Dimensions	395.1 x 45 x 45mm
	Width	45mm
	Length	395.1mm
	Height	45mm
	Maximum Operating Pressure	12 bar
	ISO Standard	15552
	Minimum Operating Temperature	-20°C
	Weight	465g
	VDMA Standard	24562
	Maximum Operating Temperature	+80°C
	Test Weight	465 g @ 0 mm Stroke
	Stroke Interval Weight	27 g @ 10 mm Stroke

	Select all
	Brand Festo
	Manufacturer Series DSBC
	Model Number p 1376430
	Bore 32mm
	Action Double
	Stroke 250mm
	Port Connection G 1/8
	Pneumatic Connection G 1/8
	Piston Rod Thread Gender Male
	Cushioning Type Pneumatic Cushioning
	Dimensions 395.1 x 45 x 45mm
	Width 45mm
	Length 395.1mm
	Height 45mm
	Maximum Operating Pressure 12 bar
	ISO Standard 15552
	Minimum Operating Temperature -20°C
	Weight 465g
	VDMA Standard 24562
	Maximum Operating Temperature +80°C
	Test Weight 465 g @ 0 mm Stroke
	Stroke Interval Weight 27 g @ 10 mm Stroke

COO (Country of Origin):: DE

Festo Pneumatic Piston Rod Cylinder, 0.4J Impact Energy in End Positions, M10x1.25 Piston Rod Thread - DSBC-32-250-PPVA-N3

Need an energy-efficient workmate to move loads in different directions? Choose this pneumatic piston rod cylinder from Festo. As it's powered exclusively by compressed air, you don't need an electrical connection to operate it, giving you one less thing to worry about. The cylinder's coated die-cast aluminium housing is durable enough to handle the strain and impact that come with harsh industrial environments. Plus, it has inbuilt PPV cushioning on both ends to soak up the pressure from the piston thrusts. This reduces vibration and noise to boost efficiency and keep your workplace quiet.

• Proximity sensors can be mounted to enable automated control
• Stroke length of 250mm makes it suitable for larger operations
• Broad operating pressure between 0.6 and 12 bar for versatile use in light-to-heavy-duty applications
• G1/8 threaded port for easy attachment to standard pneumatic equipment

Applications

• Assembly lines
• Mechanical workshops
• Automotive industry

What's the operating temperature range of this piston rod cylinder?

You can rely on this unit to work effectively in a temperature range between -20 and +80°C, making it a smart choice for demanding conditions.
