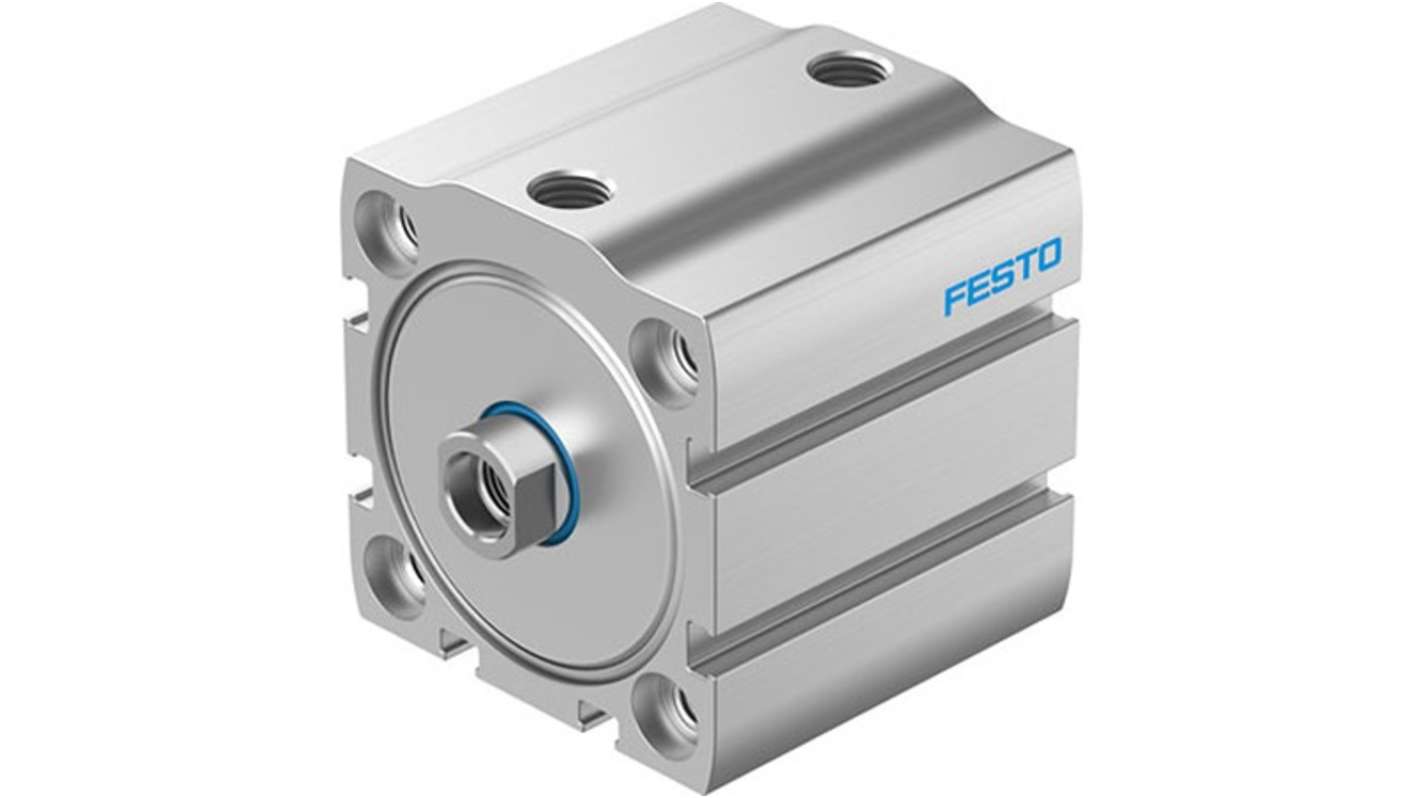

Festo Pneumatic Compact Cylinder - ADN-S-50-10-I-P-A-F1A, 50mm Bore, 10mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 342-416
- Mfr. Part No.:
- ADN-S-50-10-I-P-A-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£99.72
(exc. VAT)
£119.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £99.72 |
*price indicative
- RS Stock No.:
- 342-416
- Mfr. Part No.:
- ADN-S-50-10-I-P-A-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | ADN-S-50-10-I-P-A-F1A | |
Bore | 50mm | |
Action | Double | |
Stroke | 10mm | |
Pneumatic Connection | G 1/8 | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p ADN-S-50-10-I-P-A-F1A | ||
Bore 50mm | ||
Action Double | ||
Stroke 10mm | ||
Pneumatic Connection G 1/8 | ||
- COO (Country of Origin):
- CN
The Festo Compact cylinder designed to meet the demands of modern automation systems. Its double acting mechanism allows for efficient movement, making it an ideal solution for a variety of industrial applications. With a stroke length of 10 mm and a piston diameter of 50 mm, this cylinder is engineered for both power and precision. The robust construction, featuring anodised wrought aluminium alloy, ensures durability even in challenging environments. This product also accommodates various mounting positions, optimising installation flexibility while ensuring exceptional performance.
Double acting design enhances operational efficiency
Elastic cushioning at both ends provides smooth operation
Female thread at piston rod end enables versatile mounting
Position detection can be achieved through proximity switches
Corrosion resistance class CRC 2 ensures reliability in moderate stress conditions
Cleanroom class 6 compliance allows use in sensitive environments
Elastic cushioning at both ends provides smooth operation
Female thread at piston rod end enables versatile mounting
Position detection can be achieved through proximity switches
Corrosion resistance class CRC 2 ensures reliability in moderate stress conditions
Cleanroom class 6 compliance allows use in sensitive environments
