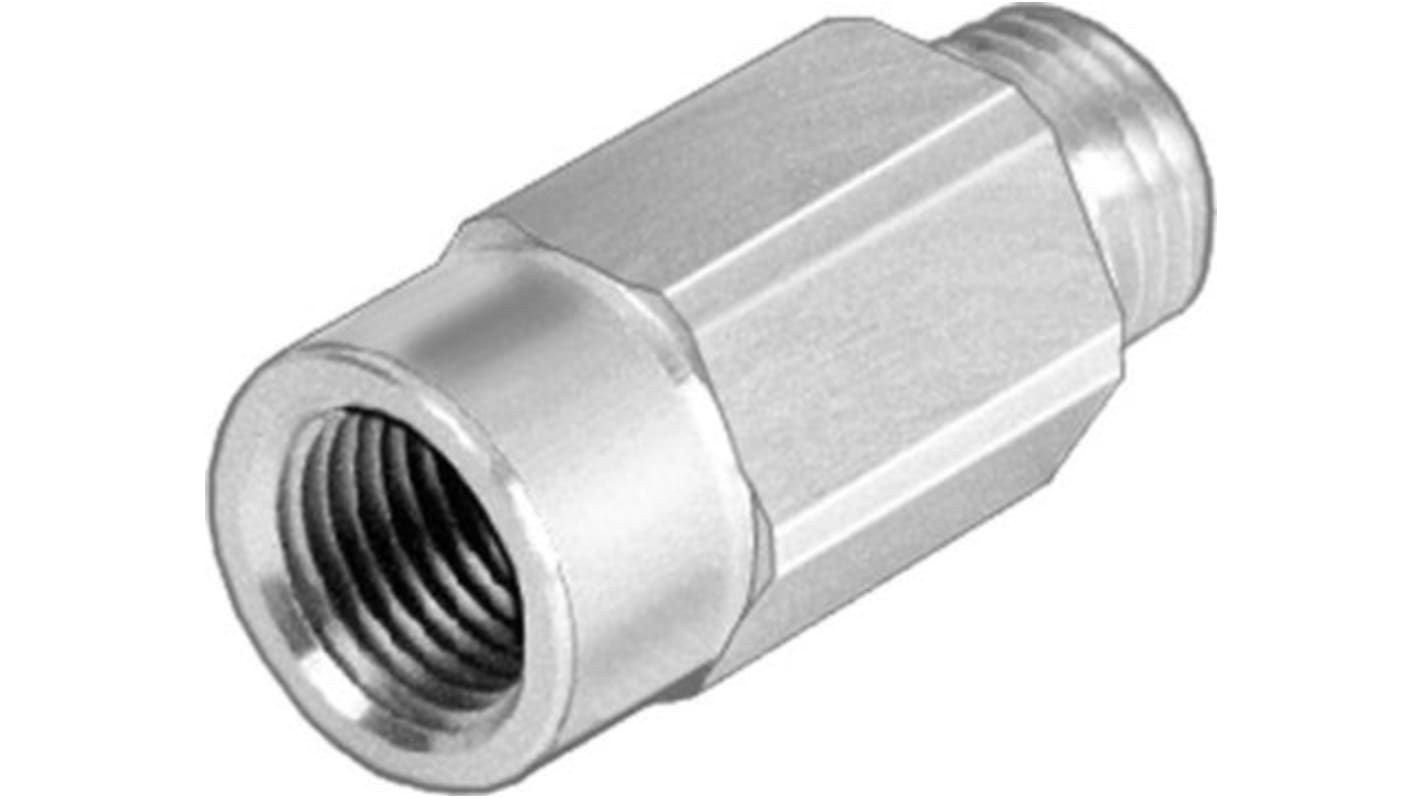

Festo ISV Non Return Valve M5 Inlet, 5mm Tube Inlet, M5 Female Outlet, 5mm Tube Outlet, -0.95 → 0bar
- RS Stock No.:
- 204-0037
- Mfr. Part No.:
- ISV-M5
- Brand:
- Festo
Subtotal (1 unit)*
£19.71
(exc. VAT)
£23.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship from another location
- Plus 23 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.71 |
*price indicative
- RS Stock No.:
- 204-0037
- Mfr. Part No.:
- ISV-M5
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Tube Inlet Connection | 5mm | |
Inlet Connection Type | Threaded | |
Threaded Inlet Connection | M5 | |
Outlet Connection Type | Threaded | |
Tube Outlet Connection | 5mm | |
Manufacturer Series | ISV | |
Threaded Outlet Connection | M5 Female | |
Threaded Inlet Gender | Male | |
Minimum Operating Pressure | -0.95bar | |
Maximum Operating Pressure | 0 bar | |
Maximum Operating Temperature | +60°C | |
Threaded Outlet Gender | Female | |
Threaded Outlet Thread Standard | Metric | |
Operating Pressure Range | -0.95 → 0bar | |
Body Material | Aluminium Alloy | |
Threaded Inlet Thread Standard | Metric | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Tube Inlet Connection 5mm | ||
Inlet Connection Type Threaded | ||
Threaded Inlet Connection M5 | ||
Outlet Connection Type Threaded | ||
Tube Outlet Connection 5mm | ||
Manufacturer Series ISV | ||
Threaded Outlet Connection M5 Female | ||
Threaded Inlet Gender Male | ||
Minimum Operating Pressure -0.95bar | ||
Maximum Operating Pressure 0 bar | ||
Maximum Operating Temperature +60°C | ||
Threaded Outlet Gender Female | ||
Threaded Outlet Thread Standard Metric | ||
Operating Pressure Range -0.95 → 0bar | ||
Body Material Aluminium Alloy | ||
Threaded Inlet Thread Standard Metric | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- DE
Festo Vacuum Security Valve, -0.95 to 0 Bar, M5 Female Outlet - ISV-M5
Ensure a constant vacuum in applications where multiple suction cups are used with this security valve from Festo. It stops a vacuum from breaking down if one or more suction cups don't have a tight seal and improves the overall efficiency of a vacuum generator. The valve also prevents wastage of compressed air and saves on energy costs in industrial pneumatic systems. Its sintered bronze filter is maintenance-free to reduce downtime and it produces low friction for enhanced longevity. The valve has two M5 pneumatic connection ports for standard use.
• Wide operating temperature range of -10°C to +60°C
• Extremely light at only 4g for improved efficiency
• Can be assembled in any position for versatile use
• Extremely light at only 4g for improved efficiency
• Can be assembled in any position for versatile use
Applications
• Manual and automated handling applications
• Food and beverage industries
• Clamping and loading
• Food and beverage industries
• Clamping and loading
How does this vacuum security valve work?
This security valve is fitted between a vacuum generator and a suction cup and stops the influx of air if a suction cup is uncovered or only partially covered. When the cup makes a tight seal, the valve allows the vacuum to be regenerated and closes immediately when an object is removed from a suction cup.
