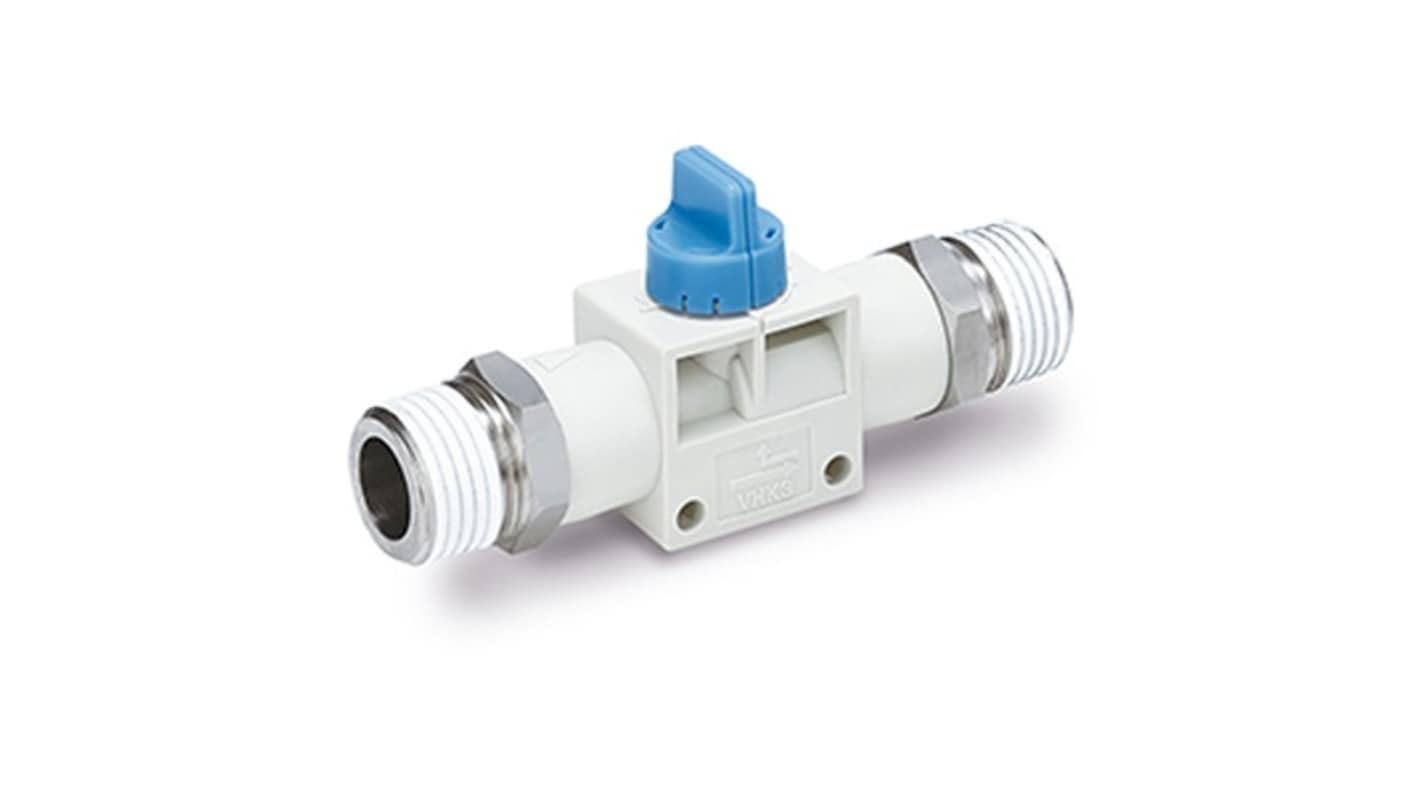

SMC Manual Pneumatic Control Valve VHK Series, R 1/4 in, VHK3A-02S-02S
- RS Stock No.:
- 425-762
- Mfr. Part No.:
- VHK3A-02S-02S
- Brand:
- SMC
Subtotal (1 unit)*
£11.95
(exc. VAT)
£14.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.95 |
*price indicative
- RS Stock No.:
- 425-762
- Mfr. Part No.:
- VHK3A-02S-02S
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Control Valve | |
| Control Mechanism | Manual | |
| Port Type | Female Thread, One-Touch Fitting | |
| Connection Thread Standard | R | |
| Port Size | 1/4 in | |
| Series | VHK | |
| Control Button/Switch Colour | Blue | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Brass, Polybutylene Terephthalate | |
| Port Gender | Female | |
| Valve Function | 3 Position | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Length | 78mm | |
| Standards/Approvals | ISO 10218-1, IEC 60204-1, ISO 4413, UL-94 V-0, ISO 4414, RoHS | |
| Height | 44.5mm | |
| Width | 18mm | |
| Number of Positions | 2 | |
| Number of Ports | 3 | |
| Model Number | VHK3A-02S-02S | |
| Thread Size | 1/4 in | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Control Valve | ||
Control Mechanism Manual | ||
Port Type Female Thread, One-Touch Fitting | ||
Connection Thread Standard R | ||
Port Size 1/4 in | ||
Series VHK | ||
Control Button/Switch Colour Blue | ||
Maximum Operating Pressure 8 bar | ||
Body Material Brass, Polybutylene Terephthalate | ||
Port Gender Female | ||
Valve Function 3 Position | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Length 78mm | ||
Standards/Approvals ISO 10218-1, IEC 60204-1, ISO 4413, UL-94 V-0, ISO 4414, RoHS | ||
Height 44.5mm | ||
Width 18mm | ||
Number of Positions 2 | ||
Number of Ports 3 | ||
Model Number VHK3A-02S-02S | ||
Thread Size 1/4 in | ||
The SMC finger valve offers a robust and reliable solution for controlling air flow in various applications. With its innovative design and user-friendly operation, this valve series ensures seamless performance across diverse environments. Built from high-quality materials, it supports a wide range of operating pressures and temperatures, making it an ideal choice for professionals in need of efficiency and durability. The valve's intuitive operation allows for quick adjustments, while maintaining minimal leakage, ensuring optimal performance during operation. This valve is engineered for adaptability, with options for different tubing materials, enabling compatibility with various systems.
Optimised for both 2-port and 3-port configurations
Compact size facilitates installation in tight spaces
Constructed with flame-resistant materials for enhanced safety
Includes a clear indication of valve position for easy monitoring
Designed for quick and reliable use, preventing accidental shut-downs
Compatible with multiple tubing materials, enhancing flexibility
Low operating forces required for manual operation, promoting user ease
Solid construction reduces the chances of seal defects ensuring longevity
Lightweight without compromising on durability for easier handling
