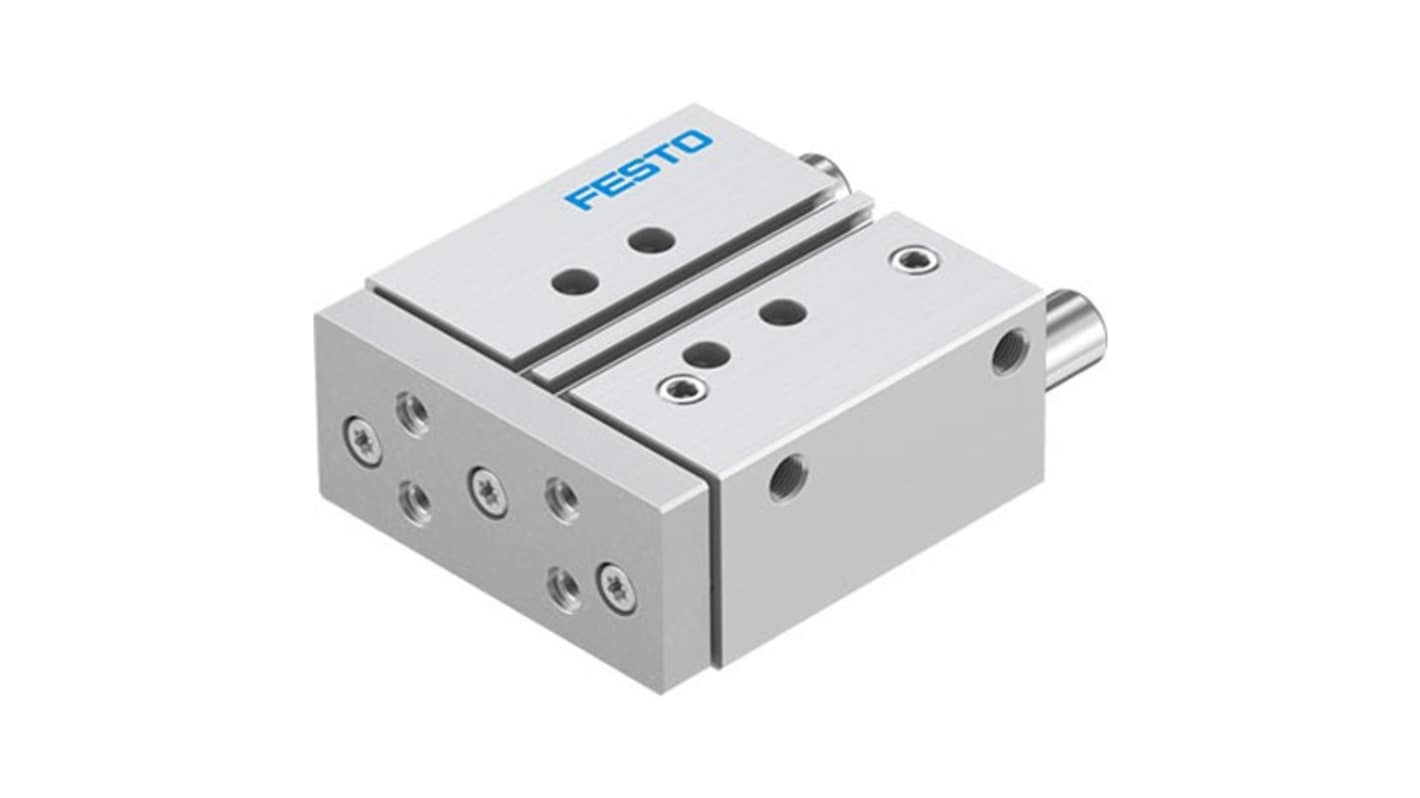

Festo Pneumatic Guided Cylinder - DFM-25-40-P-A-GF-F1A 25 mm Bore, DFM Series, 40 mm Double Acting Acting
- RS Stock No.:
- 351-491
- Mfr. Part No.:
- DFM-25-40-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£327.47
(exc. VAT)
£392.96
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £327.47 |
*price indicative
- RS Stock No.:
- 351-491
- Mfr. Part No.:
- DFM-25-40-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Size | 1/8 in G | |
| Piston Rod Thread Standard | BSPP | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS, Class 7 According to ISO 14644-1, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | |
| Weight | 1515g | |
| Stroke Length | 40mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Size 1/8 in G | ||
Piston Rod Thread Standard BSPP | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS, Class 7 According to ISO 14644-1, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | ||
Weight 1515g | ||
Stroke Length 40mm | ||
The Festo Guided Drive, designed for precision and reliability, effortlessly combines robust performance with advanced engineering. Featuring a dynamic dual-acting piston, it excels in environments that require high efficiency and adaptability. Its elegant yet sturdy construction ensures that it operates optimally under a versatile range of operating pressures. The elastic cushioning at both ends enhances user experience by absorbing shock, making it an excellent choice for delicate operations. Ideal for a multitude of applications, it is particularly suited to highly regulated environments where conformity to specific industry standards is paramount. This product is a testament to quality and has been meticulously crafted for longevity and reliability in the field.
Dual acting mode allows for efficient operation in both directions
Elastic cushioning enhances durability and reduces impact wear
Plain bearing guide ensures smooth operation and extended service life
Compliance with RoHS standards promotes environmental sustainability
Compact design maximises space without compromising performance
