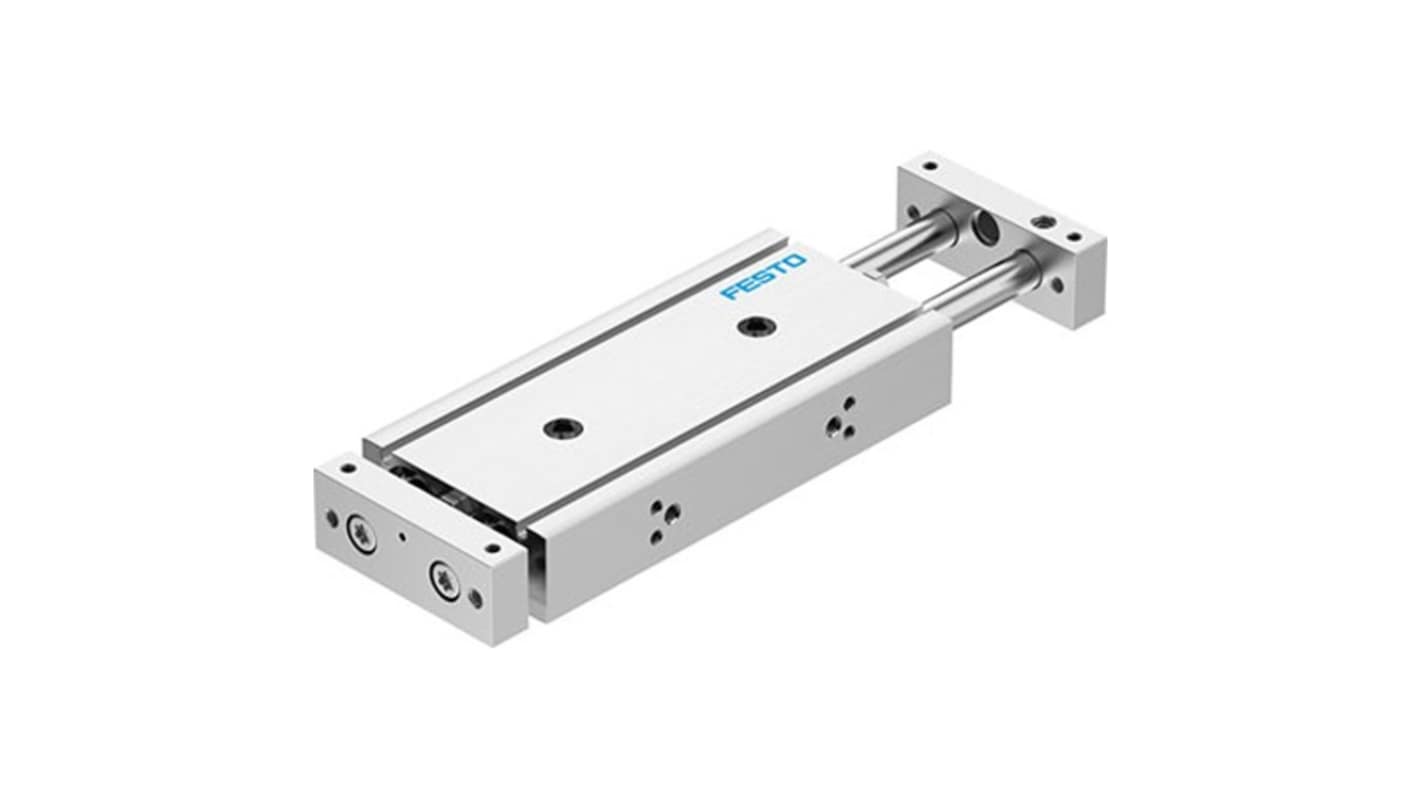

Festo Pneumatic Guided Cylinder - DGTZ-GF-20-40-J-T-P-A 20 mm Bore, DGTZ Series, 40 mm Double Acting Acting
- RS Stock No.:
- 342-356
- Mfr. Part No.:
- DGTZ-GF-20-40-J-T-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£403.05
(exc. VAT)
£483.66
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £403.05 |
*price indicative
- RS Stock No.:
- 342-356
- Mfr. Part No.:
- DGTZ-GF-20-40-J-T-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 20mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 23mm | |
| Weight | 795g | |
| Width | 62mm | |
| Standards/Approvals | Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364 zone III | |
| Stroke Length | 40mm | |
| Length | 86.5mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 20mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Height 23mm | ||
Weight 795g | ||
Width 62mm | ||
Standards/Approvals Class 6 according to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364 zone III | ||
Stroke Length 40mm | ||
Length 86.5mm | ||
- COO (Country of Origin):
- CN
The Festo Twin Cylinder Actuator is engineered for precision and reliability in automated systems. With a robust design featuring elastic cushioning rings, it seamlessly operates under varying conditions, ensuring optimal performance in diverse applications. Its adjustable end position range allows for flexibility, making it ideal for systems that require stringent control and adaptability. Crafted from high quality materials, including an anodised wrought aluminium alloy and high alloy stainless steel, this actuator delivers durability while maintaining a lightweight profile. Designed to excel in cleanroom conditions, it meets stringent standards, making it a top choice for sensitive environments. Perfect for engineers seeking an efficient and adaptable solution for their automation needs.
Two yokes drive unit enhancing operational efficiency
Plain bearing guide ensures minimal friction
Versatile mounting position options for installation flexibility
Simple position detection via proximity switch
Corrosion resistance class CRC 1 for reliability in demanding environments
Lightweight moving mass design optimises response times
Lubricated operation capability extends service life
