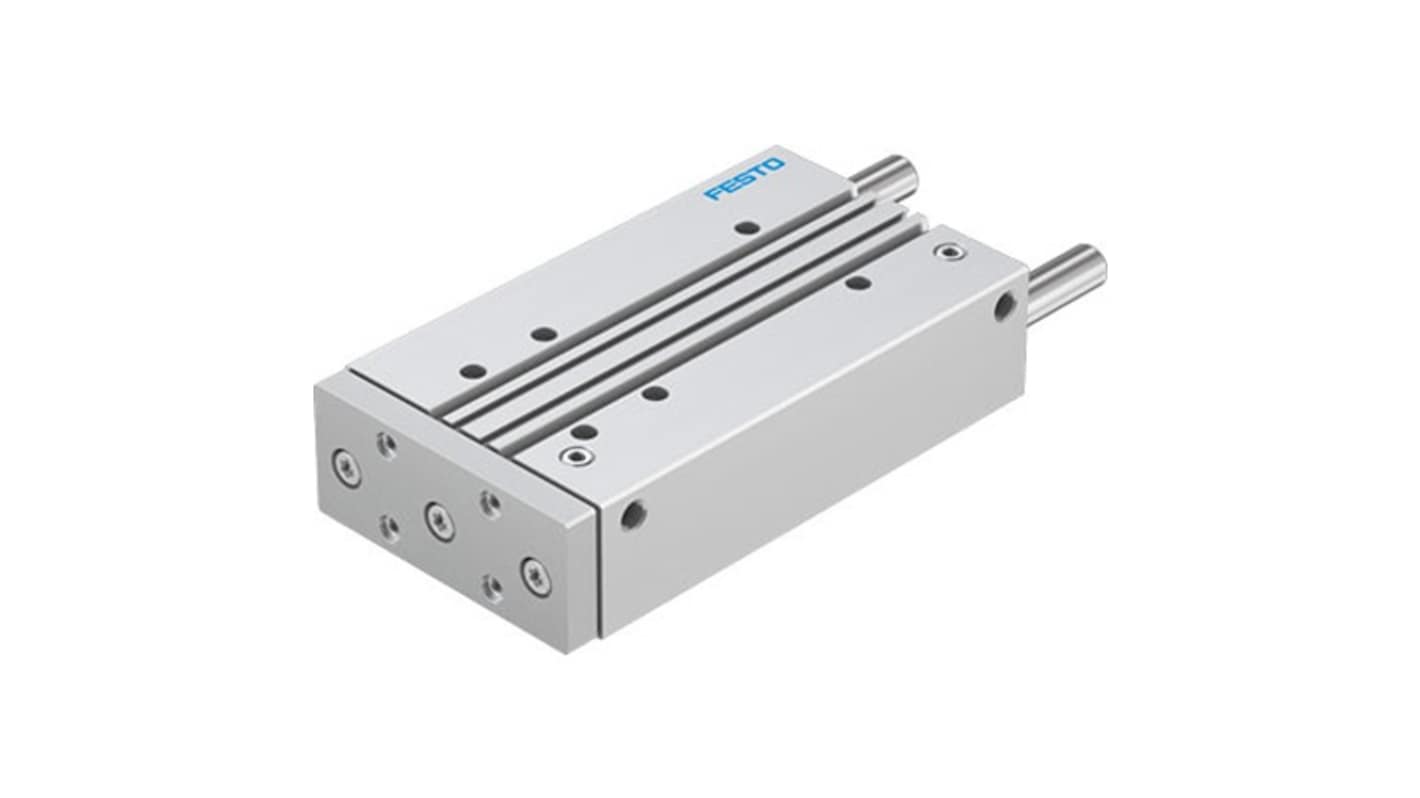

Festo Pneumatic Guided Cylinder - DFM-50-200-P-A-KF-F1A 50 mm Bore, DFM Series, 200 mm Double Acting Acting
- RS Stock No.:
- 342-314
- Mfr. Part No.:
- DFM-50-200-P-A-KF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£925.25
(exc. VAT)
£1,110.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £925.25 |
*price indicative
- RS Stock No.:
- 342-314
- Mfr. Part No.:
- DFM-50-200-P-A-KF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 50mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Piston Rod Thread Size | 1/4 in G | |
| Minimum Operating Temperature | -5°C | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Standard | BSPP | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | |
| Weight | 7525g | |
| Stroke Length | 200mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 50mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Piston Rod Thread Size 1/4 in G | ||
Minimum Operating Temperature -5°C | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Standard BSPP | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | ||
Weight 7525g | ||
Stroke Length 200mm | ||
The Festo Guided drive is engineered for precision and reliability in motion control applications. This Guided drive system features a robust design that ensures consistent performance across a range of industrial environments. With its double acting mode and adjustable mounting options, this drive unit contributes to optimised workflows in automation settings. The incorporation of high quality materials, such as wrought aluminium and high alloy stainless steel, allows it to withstand demanding operational conditions while maintaining compliance with RoHS standards. Its compact and lightweight structure further enhances its applicability in various machinery, ensuring effective handling and control.
Double acting operation for versatile performance
Elastic cushioning rings provide reduced impact and noise
Recirculating ball bearing guide enhances durability and smoothness
Versatile mounting position to suit different installation needs
Proximity switch for precise position detection
Flexible compatibility with lubricated and unlubricated operation
Exceptional corrosion resistance to withstand harsh environments
Designed for safety with a maximum torque load tailored to stroke length
