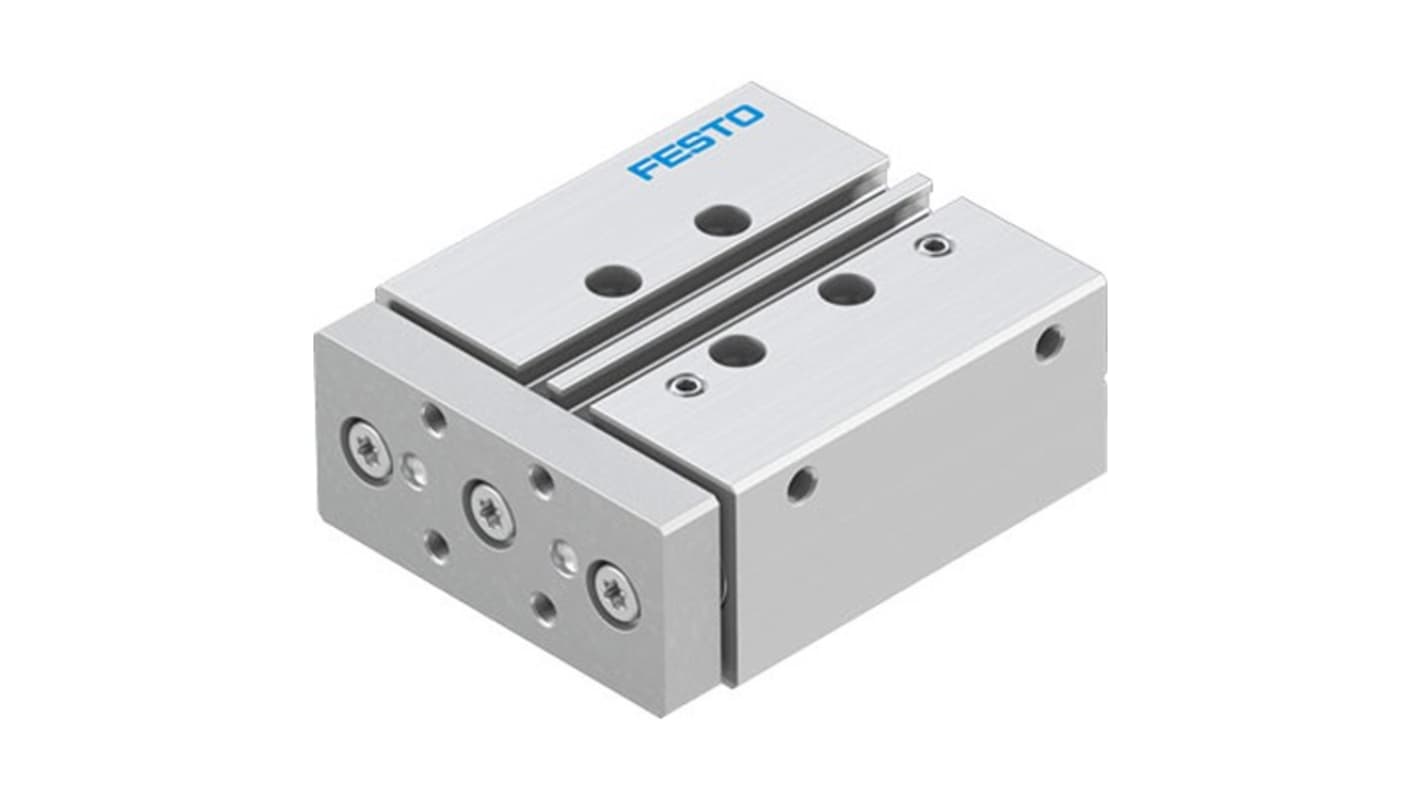

Festo Pneumatic Guided Cylinder - DFM-16-30-P-A-GF-F1A 16 mm Bore, DFM Series, 30 mm Double Acting Acting
- RS Stock No.:
- 342-303
- Mfr. Part No.:
- DFM-16-30-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£245.47
(exc. VAT)
£294.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £245.47 |
*price indicative
- RS Stock No.:
- 342-303
- Mfr. Part No.:
- DFM-16-30-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 565g | |
| Stroke Length | 30mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 565g | ||
Stroke Length 30mm | ||
- COO (Country of Origin):
- CN
The Festo Guided Drive is engineered for precision and durability, ideal for a variety of industrial applications. Featuring a robust design, it integrates efficiently into automated systems, ensuring reliable performance. With an elastic cushioning mechanism and plain bearing guide, it offers smooth operation while maintaining the integrity of your processes. Compliant with stringent standards, this product excels in environments where reliability and performance are paramount, making it a valuable asset in modern manufacturing and assembly lines.
Double acting function enhances operational versatility
Compact design optimises space without compromising functionality
Proximity switch integration allows for accurate position detection
Elastic cushioning protects both the drive and the load from impact
Constructed with a lightweight yet sturdy aluminium alloy for enhanced durability
RoHS compliance ensures environmentally friendly material usage
Temperature resilience permits operation in a broad ambient range
