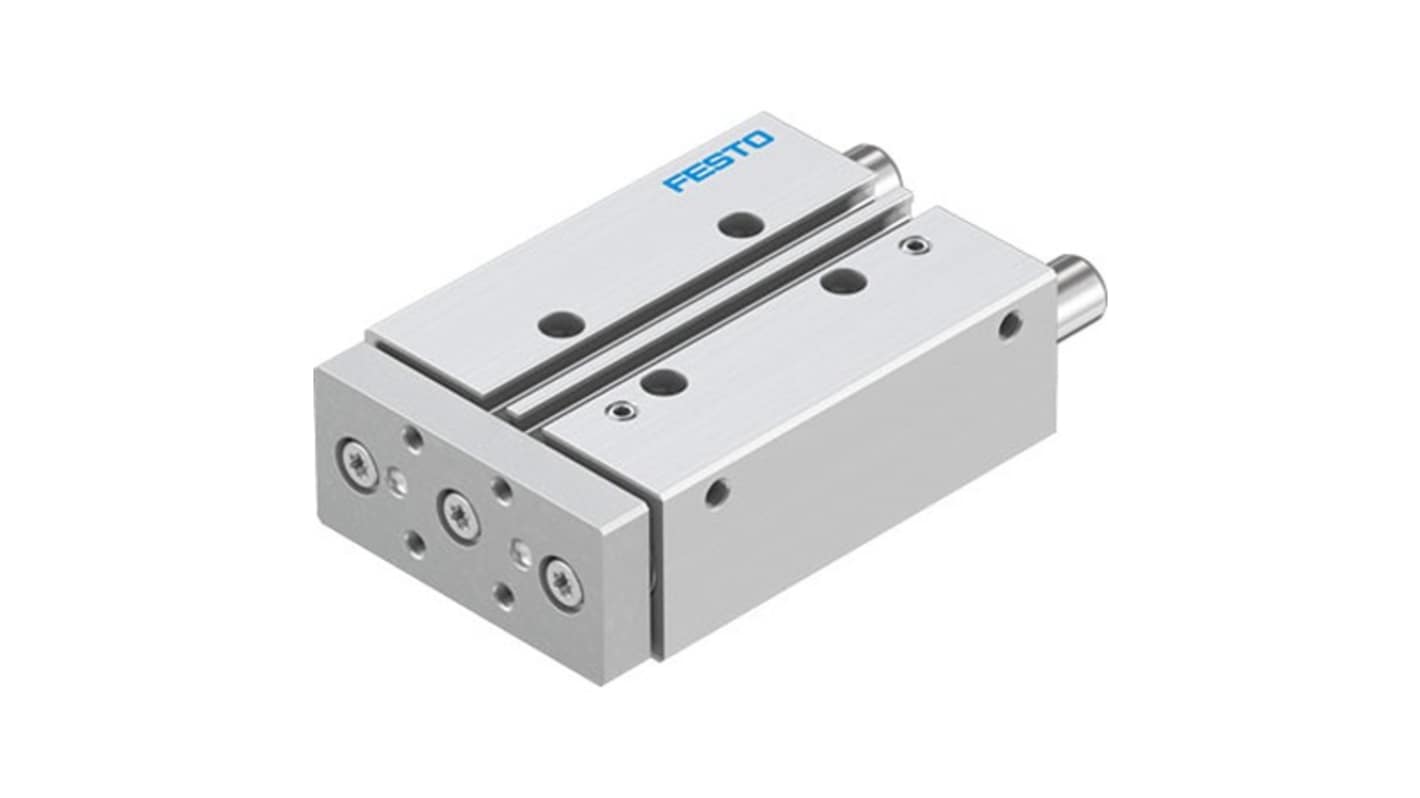

Festo Pneumatic Guided Cylinder - DFM-16-50-P-A-GF-F1A 16 mm Bore, DFM Series, 50 mm Double Acting Acting
- RS Stock No.:
- 342-305
- Mfr. Part No.:
- DFM-16-50-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£256.25
(exc. VAT)
£307.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £256.25 |
*price indicative
- RS Stock No.:
- 342-305
- Mfr. Part No.:
- DFM-16-50-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Piston Rod Thread Size | M5 | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | Metric | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | VDMA24364-B1/B2-L, RoHS, Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4) | |
| Weight | 772g | |
| Stroke Length | 50mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Piston Rod Thread Size M5 | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard Metric | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals VDMA24364-B1/B2-L, RoHS, Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4) | ||
Weight 772g | ||
Stroke Length 50mm | ||
- COO (Country of Origin):
- CN
The Festo Pneumatic drive unit is engineered for precision and reliability, offering a robust solution for automation needs. Its compact design incorporates advanced cushioning mechanisms and a plain bearing guide, ensuring smooth operation across various applications. The unit also asserts corrosion resistance, aligning with demanding industry standards, which adds longevity to operations. With its exceptional force capabilities and effective load management, this drive unit stands out as a cornerstone component in any sophisticated automation system, whether it involves material handling or robotic manipulations.
Double acting mode enhances operational efficiency
Elastic cushioning mechanisms provide smooth start and stop functions
Plain bearing guide ensures reliability during sustained use
Wide operating pressure range supports different application needs
Corrosion resistance class ensures durability in harsh environments
RoHS compliant materials ensure safe and environmentally friendly use
Ambient temperature resilience accommodates varied settings
