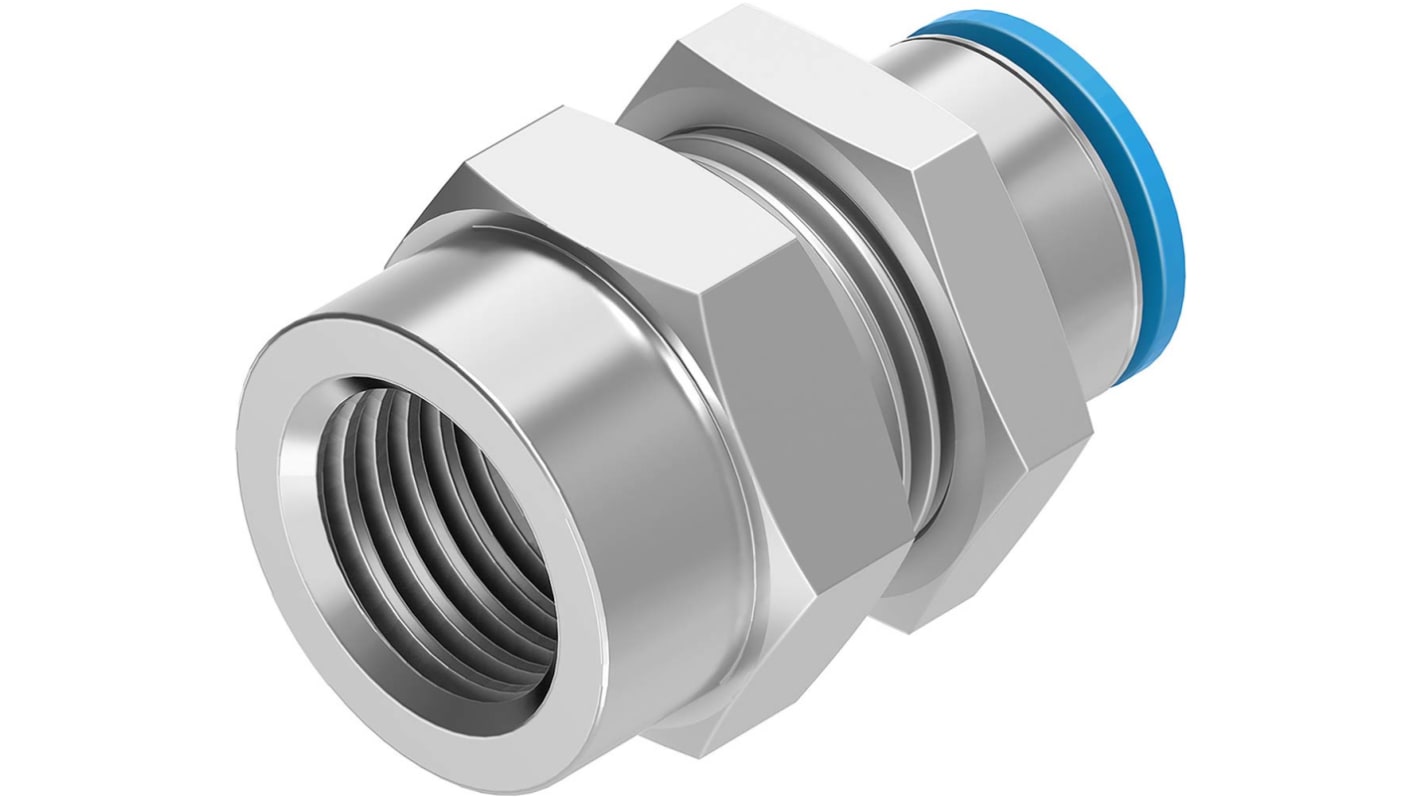

Festo QSSF Series Straight Threaded Adaptor, G 1/4 Female to Push In 10 mm, Threaded-to-Tube Connection Style, 153168
- RS Stock No.:
- 181-6140
- Mfr. Part No.:
- QSSF-1/4-10-B
- Brand:
- Festo
Bulk discount available
Subtotal (1 bag of 10 units)*
£86.55
(exc. VAT)
£103.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £86.55 | £8.655 |
5 - 9 | £83.09 | £8.309 |
10 + | £79.63 | £7.963 |
*price indicative
- RS Stock No.:
- 181-6140
- Mfr. Part No.:
- QSSF-1/4-10-B
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | G 1/4 Female | |
Connector B | Push In 10 mm | |
Pneumatic Fitting Type | Straight Threaded Adaptor | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | G 1/4 Female | |
Manufacturer Series | QSSF | |
Model Number p | 153168 | |
Thread Material | Nickel Plated Brass | |
Finish | Nickel Plated | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -10°C | |
Body Material | Brass | |
Maximum Operating Pressure | 6 bar | |
Mounting Type | Bulkhead | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A G 1/4 Female | ||
Connector B Push In 10 mm | ||
Pneumatic Fitting Type Straight Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection G 1/4 Female | ||
Manufacturer Series QSSF | ||
Model Number p 153168 | ||
Thread Material Nickel Plated Brass | ||
Finish Nickel Plated | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -10°C | ||
Body Material Brass | ||
Maximum Operating Pressure 6 bar | ||
Mounting Type Bulkhead | ||
- COO (Country of Origin):
- TW
Festo Push-in Bulkhead Connector
The Festo push-in bulkhead connector is used for certain pneumatic control applications. The QS push-in fitting range includes over 1000 types of standard as well as function fittings. It offers a convenient selection of the right fitting to provide the best possible solution for every connection.
Features and Benefits
- The connector can withstand pressure up to 14bar
- Push in bulk head connector with female thread
- Push in type ensuring quick and simple installation
Applications
- Aerospace
- Air compressors
- Mining industry
Festo QSSF-1/4-10-B
- Female thread 1/4 pneumatic connection at port 1
- Tubing size O.D 10mm connection at port 2
- Temperature ranges between -10°C and 80°C
- Threaded to tube style connection
- Nickel plated brass
- Any mounting/ assembly position
