EMERSON – ASCO Angle Seat type Pneumatic Actuated Valve, 6 bar, Female 3/8 in
- RS Stock No.:
- 432-229
- Mfr. Part No.:
- E290C52V0XA00V1
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£334.15
(exc. VAT)
£400.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £334.15 |
*price indicative
- RS Stock No.:
- 432-229
- Mfr. Part No.:
- E290C52V0XA00V1
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Product Type | Pneumatic Actuated Valve | |
| Inlet Connection Type | Threaded | |
| Valve Type | Angle Seat | |
| Default Valve Position | NC | |
| Inlet Port Size | 3/8 in | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 3/8 in | |
| Maximum Operating Pressure | 6 bar | |
| Inlet Port Gender | Female | |
| Valve Material | Stainless Steel | |
| Outlet Thread Standard | G | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 145°C | |
| Standards/Approvals | EMC Directive 2014/30/EU (EN-IEC 61000-6-2 & EN-IEC 61000-6-4), RoHS 2, Low Voltage Directive 2014/35/EU (EN-IEC 60730), Pressure Equipment Directive 2014/68/EU article 3.3 | |
| Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Product Type Pneumatic Actuated Valve | ||
Inlet Connection Type Threaded | ||
Valve Type Angle Seat | ||
Default Valve Position NC | ||
Inlet Port Size 3/8 in | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 3/8 in | ||
Maximum Operating Pressure 6 bar | ||
Inlet Port Gender Female | ||
Valve Material Stainless Steel | ||
Outlet Thread Standard G | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 145°C | ||
Standards/Approvals EMC Directive 2014/30/EU (EN-IEC 61000-6-2 & EN-IEC 61000-6-4), RoHS 2, Low Voltage Directive 2014/35/EU (EN-IEC 60730), Pressure Equipment Directive 2014/68/EU article 3.3 | ||
RoHS Status: Exempt

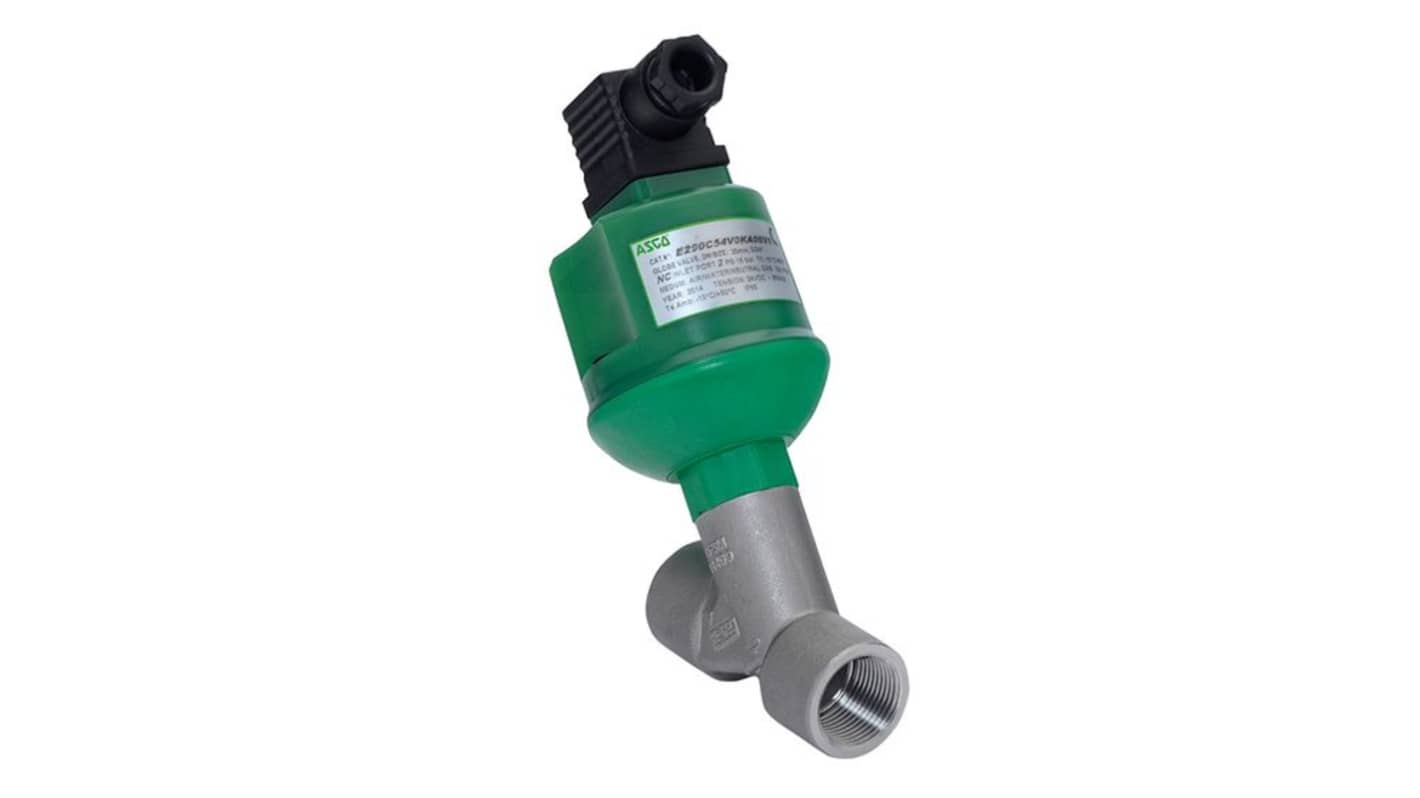

The Asco motorised valve from the series 290 is engineered for optimal efficiency in fluid control applications. With its robust stainless steel construction and innovative design, this valve provides reliable performance across diverse environments. Its actuator is capable of a full 360° rotation, allowing for versatile installation options. Designed to withstand pressure conditions of up to 10 bar and ambient temperatures ranging from -10°C to +50°C, the valve also supports vacuum operations down to 10 mbar. This actuator-operated valve features an integrated LED status display to provide real-time operational feedback, ensuring ease of monitoring. Additionally, the valve complies with essential directives to ensure safety and reliability in various applications. Catering to both water and steam applications, it promises seamless operation and long-lasting service.
High flow achieved through an angled seat design
Anti-water hammer engineering enhances reliability
Fluid isolation guarantees safety between actuator and body
Fail closed operation is available for added security
LED indicators update users on valve status clearly
Specially designed to withstand a maximum viscosity of 600 cSt
Ambient temperature flexibility supports a wide range of operations
Durable materials enhance longevity in contact with aggressive fluids
