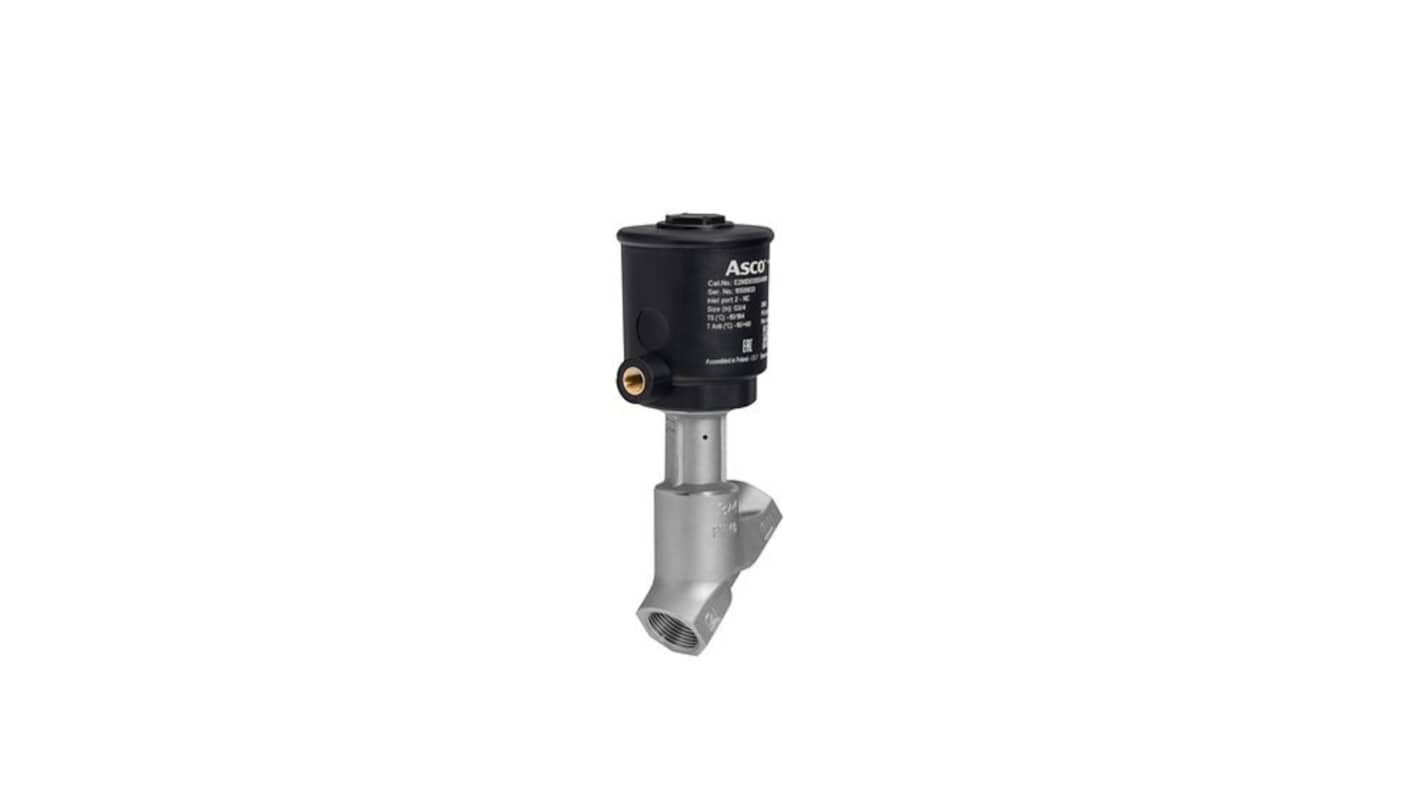

EMERSON – ASCO Angle Seat type Pneumatic Valve, 6 bar, Female 3/4 in
- RS Stock No.:
- 564-196
- Mfr. Part No.:
- E290D0310SA0000
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£186.82
(exc. VAT)
£224.18
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £186.82 |
*price indicative
- RS Stock No.:
- 564-196
- Mfr. Part No.:
- E290D0310SA0000
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Product Type | Pneumatic Valve | |
| Valve Type | Angle Seat | |
| Inlet Port Size | 3/4 in | |
| Default Valve Position | NC | |
| Return Type | Spring | |
| Outlet Port Size | 3/4 in | |
| Maximum Operating Pressure | 6 bar | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Outlet Thread Standard | ISO 228/1 & ISO 7/1 | |
| Valve Material | Stainless Steel | |
| Maximum Operating Temperature | 184°C | |
| Standards/Approvals | EN 161, IEC 61508, IECEX, EN ISO 13849-1, EAC, RoHS Compatible, FDA CFR 21, DIN EN 1092-1, Pressure Equipment Directive 2014/68/EU, EN 16678, ASME B16.5, ISO 7005, REACH, ATEX, EC 1935-2004 | |
| Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Product Type Pneumatic Valve | ||
Valve Type Angle Seat | ||
Inlet Port Size 3/4 in | ||
Default Valve Position NC | ||
Return Type Spring | ||
Outlet Port Size 3/4 in | ||
Maximum Operating Pressure 6 bar | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Outlet Thread Standard ISO 228/1 & ISO 7/1 | ||
Valve Material Stainless Steel | ||
Maximum Operating Temperature 184°C | ||
Standards/Approvals EN 161, IEC 61508, IECEX, EN ISO 13849-1, EAC, RoHS Compatible, FDA CFR 21, DIN EN 1092-1, Pressure Equipment Directive 2014/68/EU, EN 16678, ASME B16.5, ISO 7005, REACH, ATEX, EC 1935-2004 | ||
RoHS Status: Exempt
The Asco Vanne 290 series next gen features a G or RP connection, following ISO 228-1 and ISO 7-1. It has a 2 ways design with normally closed function and a threaded port without third way. The valve includes a stainless steel body and PTFE disc seal, with a plastic actuator diameter 32mm and a piloting G1/8 inch connection.
Nominal diameter is 20mm equal to 3/4 inch
Configuration supplied without voltage specification
Offered in without body version as an option
Suitable for compact normally closed systems with piloting connection
