NSK-RHP MP40 Pillow Block Bearing -, 40 mm ID
- RS Stock No.:
- 212-8318
- Mfr. Part No.:
- MP40
- Brand:
- NSK-RHP

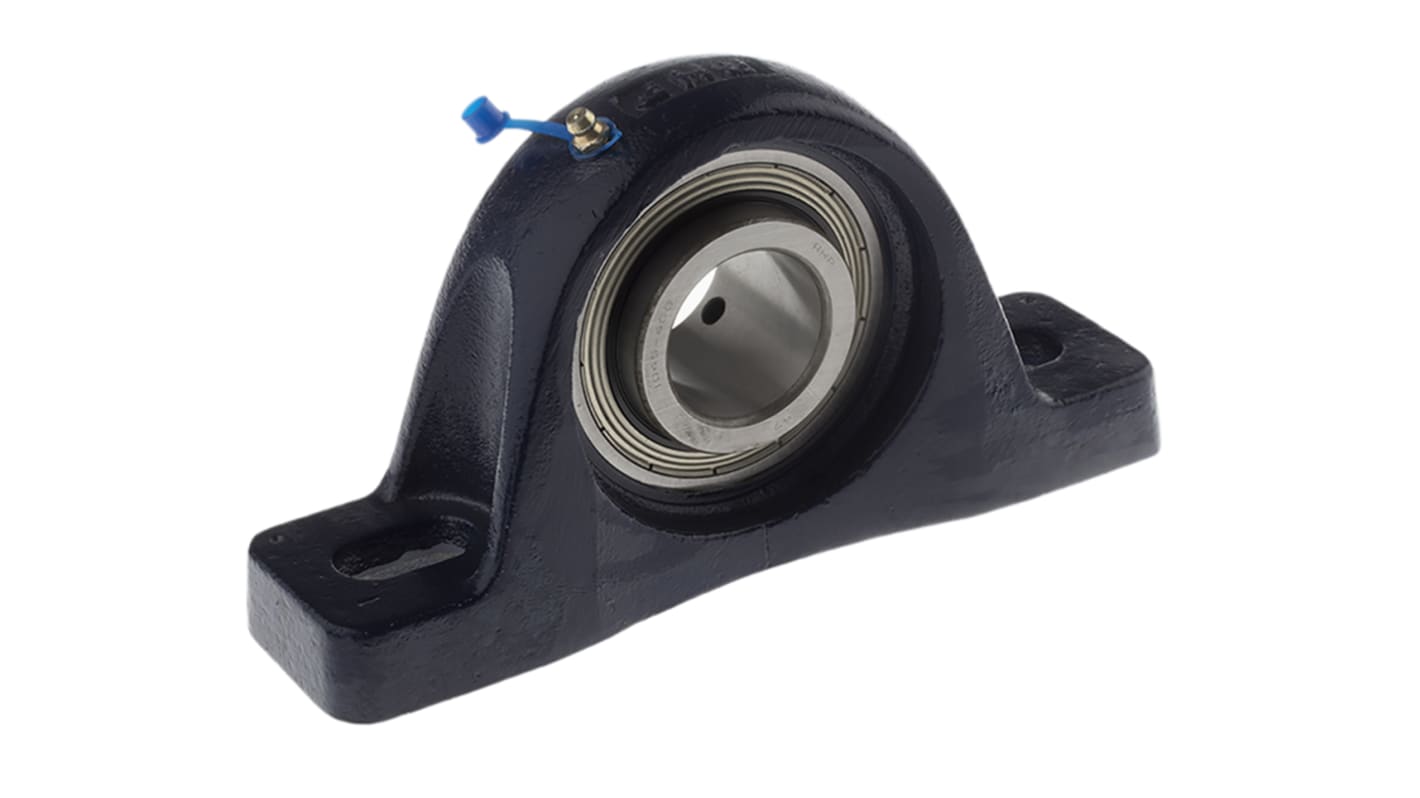

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£82.72
(exc. VAT)
£99.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £82.72 |
| 5 - 9 | £79.41 |
| 10 - 24 | £77.74 |
| 25 + | £76.09 |
*price indicative
- RS Stock No.:
- 212-8318
- Mfr. Part No.:
- MP40
- Brand:
- NSK-RHP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK-RHP | |
| Product Type | Pillow Block Bearing | |
| Inside Diameter | 40mm | |
| Material | Mild Steel, Cast Iron, Pressed Steel, Synthetic Rubber | |
| Centre Height | 58.72mm | |
| Static Load Rating | 122000N | |
| Mount Hole Size | 16 mm | |
| Length | 222.2mm | |
| Depth | 60mm | |
| Dynamic Load Rating | 157000N | |
| Mount Hole Centre-to-Centre | 85.5mm | |
| Height | 116.7mm | |
| Standards/Approvals | ISO | |
| Limiting Speed | 7000rpm | |
| Select all | ||
|---|---|---|
Brand NSK-RHP | ||
Product Type Pillow Block Bearing | ||
Inside Diameter 40mm | ||
Material Mild Steel, Cast Iron, Pressed Steel, Synthetic Rubber | ||
Centre Height 58.72mm | ||
Static Load Rating 122000N | ||
Mount Hole Size 16 mm | ||
Length 222.2mm | ||
Depth 60mm | ||
Dynamic Load Rating 157000N | ||
Mount Hole Centre-to-Centre 85.5mm | ||
Height 116.7mm | ||
Standards/Approvals ISO | ||
Limiting Speed 7000rpm | ||
RoHS Status: Exempt
Self-Lube Pillow Block Bearing
Cast iron self lubricated pillow block bearings from NSK. These pillow block bearings are easy to fit and long lasting. Designed to accommodate an initial housing misalignment of up to 0.030 radians.
Made from cast iron to BS1452
Spherical bearing insert accommodates initial misalignment
Nitrile/fabric seals
Supplied with full fitting instructions
C3 internal radial clearance
Slotted bolt holes
Supplied with
grease nipples.
