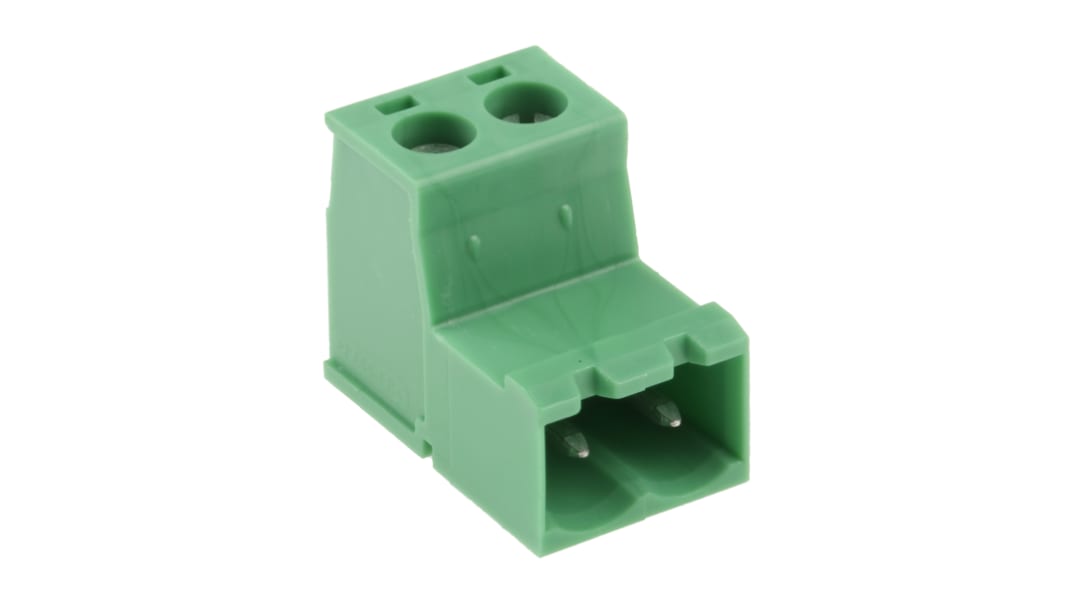

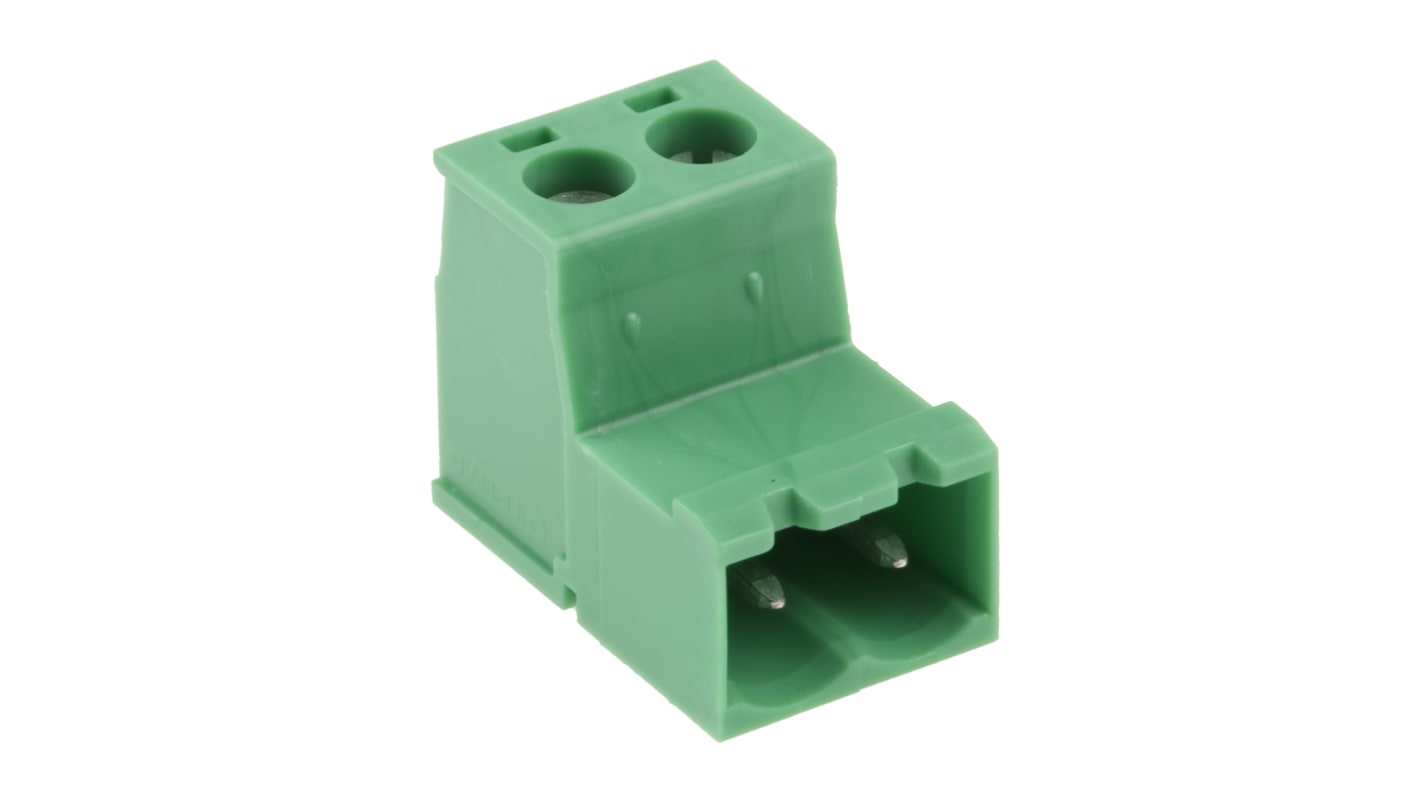

Phoenix Contact, 5.08mm Pitch, 2 Way, Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination, 1786174

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

UL Recognised, EAC

Use this terminal block from Phoenix Contact to safely terminate cable connections on PCBs (printed circuit boards). The unit is designed for temporary use and comes with plug-in modules that make it easy for you to install and remove it.
Tin pin contacts are highly conductive and transmit signals effectively, making this a safe termination point for free-hanging cables and connectors. Its convenient screw connection is an international standard, meaning it can be used worldwide.
This terminal block, in Phoenix Contact's classic green, is made of polyamide to provide insulation from shocks and short circuits. It has a rated surge voltage of 4kV so it can handle voltage spikes, which improves circuit safety. Its compact dimensions make it perfect for applications where space is limited. This component is widely used in a range of power electronics systems as well as in industrial automation.

• Current rating of 12A and voltage rating of 320V for versatile application
• Easy-to-use screw down termination system
• Accepts wire sizes of 24 to 12AWG (American Wire Gauge) for flexibility
• Underwriters Laboratories (UL) 94 flammability rating V-0, meaning flame stops burning within 10 seconds
