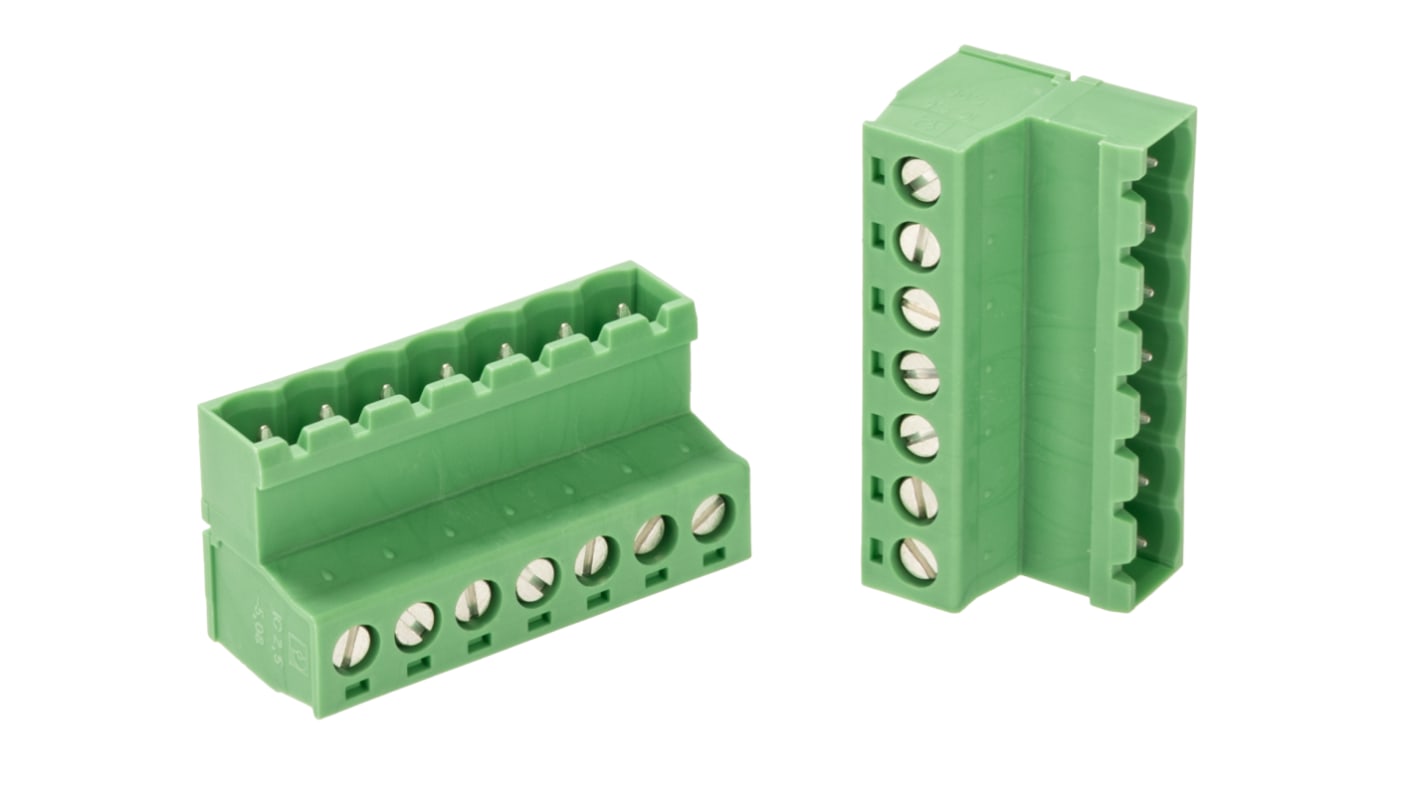

Phoenix Contact, 5.08mm Pitch, CLASSIC COMBICON IC, 7 Way, Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw

RS Stock No.:: 292-9133
Mfr. Part No.:: 1786226
Brand:: Phoenix Contact

Phoenix Contact, 5.08mm Pitch, CLASSIC COMBICON IC, 7 Way, Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw

Bulk discount available

Price Each (In a Pack of 5)**

£6.886

(exc. VAT)

£8.263

(inc. VAT)

45 In stock - FREE next working day delivery available*

150 In stock - FREE next working day delivery available

25 available from Europe for delivery within 1 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Pack**
5 - 120	£6.886	£34.43
125 - 370	£6.198	£30.99
375 - 995	£5.854	£29.27
1000 - 1995	£5.172	£25.86
2000 +	£4.82	£24.10

**price indicative

RS Stock No.:: 292-9133
Mfr. Part No.:: 1786226
Brand:: Phoenix Contact

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits

Well known connection principle allows worldwide use

Easy PCB replacement thanks to plug-in modules

Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections

Can be combined with the MSTB 2.5 range

Maximum contact force means a low temperature rise

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

Approvals

UL Recognised, EAC

Phoenix Contact CLASSIC COMBICON IC Series Pluggable Terminal Block, 5.08mm Pitch, Screw Termination Method - 1786226

This pluggable terminal block is designed for reliable connectivity in automation and electrical systems. It provides a robust solution for connecting conductors, making it essential in various electronic configurations. The inverted plug feature ensures a secure connection, while its performance specifications enhance its application in complex installations.

Features & Benefits

• Inverted plug design provides a secure, touch-proof connection
• Seven connections offer flexible circuit configurations
• High current rating of 12A meets substantial power demands
• Rated voltage of 320V accommodates high voltage applications
• Screw termination facilitates easy installation and maintenance
• Made of green nylon for durability and visibility

Applications

• Suitable for wiring connections in automation systems
• Ideal for PCB connectivity within electrical enclosures
• Appropriate for free-hanging cable solutions requiring dependability
• Compatible with various devices in the CLASSIC COMBICON range
• Suitable for industrial environments needing robust terminals

What type of connection method is used?

The connection method is a screw connection with a tension sleeve for added security.

Can this handle flexible conductors?

Yes, it accommodates both rigid and flexible conductors with sizes ranging from 0.2 to 2.5mm².

Is this suitable for high voltage applications?

Yes, it has a rated voltage of 320V, making it appropriate for high voltage scenarios.

How do I ensure a secure connection?

Using the provided tightening torque specifications will ensure a proper and secure connection.

What materials are used in its construction?

It features a green nylon housing with tin-plated copper alloy contacts, ensuring durability and reliability.

Attribute	Value
Pluggable Terminal Block Type	Inverted Plug
Number of Contacts	7
Pitch	5.08mm
Series	CLASSIC COMBICON IC
Number of Rows	1
Body Orientation	Straight
Mounting Type	Cable Mount
Termination Method	Screw
Current Rating	12A
Voltage Rating	320 V
Colour	Green
Wire Size	24 → 12 AWG
Material	Nylon
Contact Material	Copper Alloy
Contact Plating	Tin
