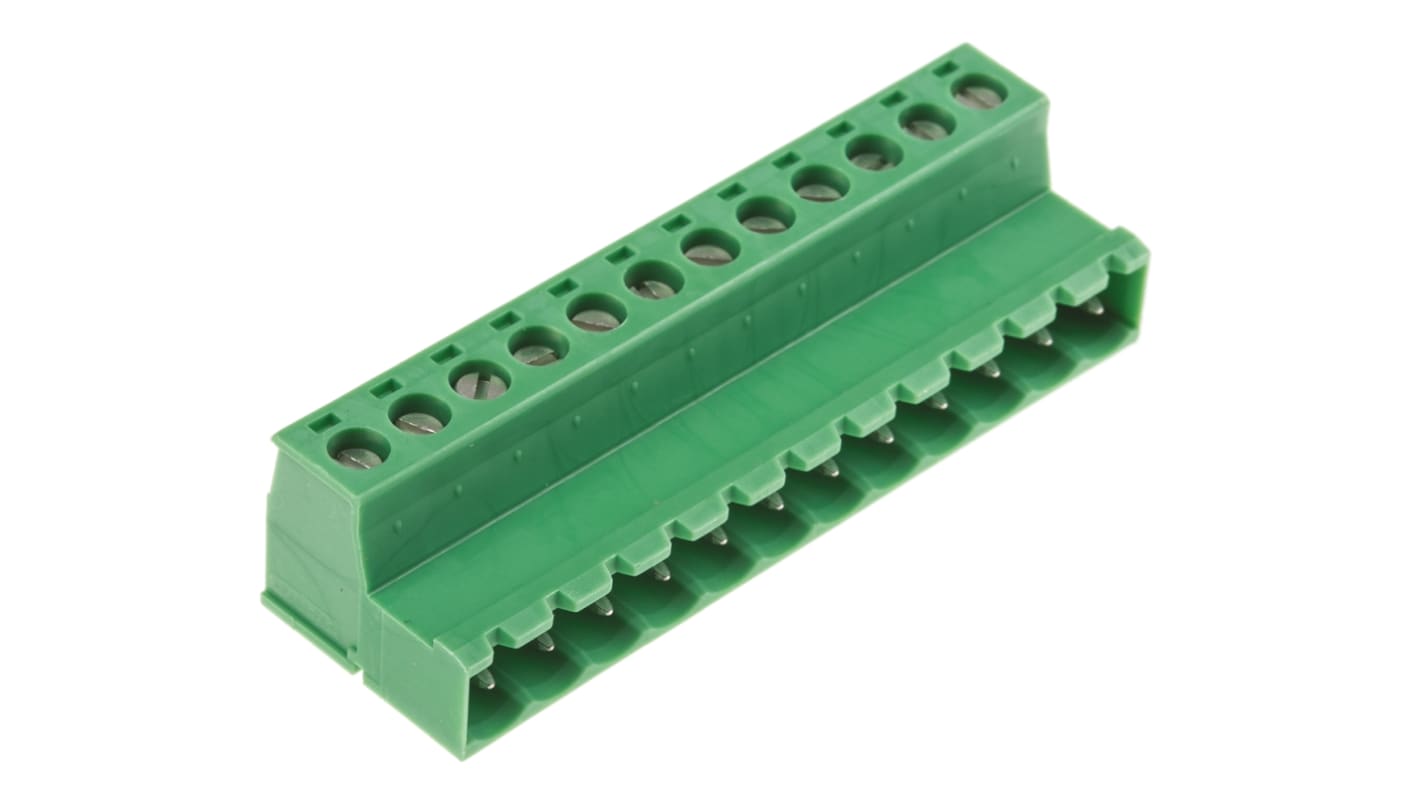

Phoenix Contact, 5.08mm Pitch, 12 Way, , Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination,

RS Stock No.:: 292-9177
Mfr. Part No.:: 1786271
Brand:: Phoenix Contact

Phoenix Contact, 5.08mm Pitch, 12 Way, , Pluggable Terminal Block, Inverted Plug, Cable Mount, Screw Termination,

Bulk discount available

Price Each (In a Pack of 5)

£14.266

(exc. VAT)

£17.119

(inc. VAT)

45 In stock - FREE next working day delivery available*

40 available from Europe for delivery within 1 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Pack**
5 - 120	£14.266	£71.33
125 - 370	£12.84	£64.20
375 - 995	£11.412	£57.06
1000 - 1995	£9.986	£49.93
2000 +	£9.272	£46.36

**price indicative

RS Stock No.:: 292-9177
Mfr. Part No.:: 1786271
Brand:: Phoenix Contact

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection

A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits

Well known connection principle allows worldwide use

Easy PCB replacement thanks to plug-in modules

Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections

Can be combined with the MSTB 2.5 range

Maximum contact force means a low temperature rise

Part numbers prefixed with 18253 and 18254 have a screw flange.
Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

Approvals

UL Recognised, EAC

Phoenix Contact CLASSIC COMBICON IC Series Pluggable Terminal Block, 5.08mm Pitch, Screw Termination Method - 1786271

This pluggable terminal block offers efficient electrical connections for various applications. Its inverted plug design facilitates easy integration into existing systems, ensuring secure and dependable connections. Focussed on the automation and electrical sectors, this connector provides high performance in various settings, crucial for maintaining system integrity.

Features & Benefits

• Inverted plug design enhances touch-proof safety for connections
• 12A current rating supports substantial power requirements
• 320V voltage rating ensures safety in high-voltage applications
• Utilises 5.08mm pitch for efficient space utilisation
• Features screw termination for firm connections
• Durable green nylon housing provides resilience in challenging environments

Applications

• Compatible with COMBICON MSTB 2.5 system connectors
• Suitable for cable mount configurations in electrical panels
• Effective for automation and control systems requiring secure connections
• Utilised in modular equipment that needs easy maintenance and replacement

What type of connection method is used with this terminal block?

The connection method is screw connection with a tension sleeve for secure fastening.

Can this product be used in environments with varying temperatures?

Yes, it operates effectively in ambient temperatures from -40 to 100°C.

Is it suitable for both solid and flexible conductors?

Yes, it accommodates both solid and flexible conductors within specified cross-sectional ranges.

How many contacts does it have for connecting multiple conductors?

It contains 12 contacts for connecting multiple conductors simultaneously.

How can I ensure a proper connection without damage?

Utilising the recommended tightening torque of 0.5 to 0.6Nm will prevent conductor damage while ensuring a secure connection.

Attribute	Value
Pluggable Terminal Block Type	Inverted Plug
Number of Contacts	12
Pitch	5.08mm
Series	CLASSIC COMBICON IC
Number of Rows	1
Body Orientation	Straight
Mounting Type	Cable Mount
Termination Method	Screw
Current Rating	12A
Voltage Rating	320 V
Colour	Green
Wire Size	24 → 12 AWG
Contact Plating	Tin
Contact Material	Copper Alloy
Material	Nylon
