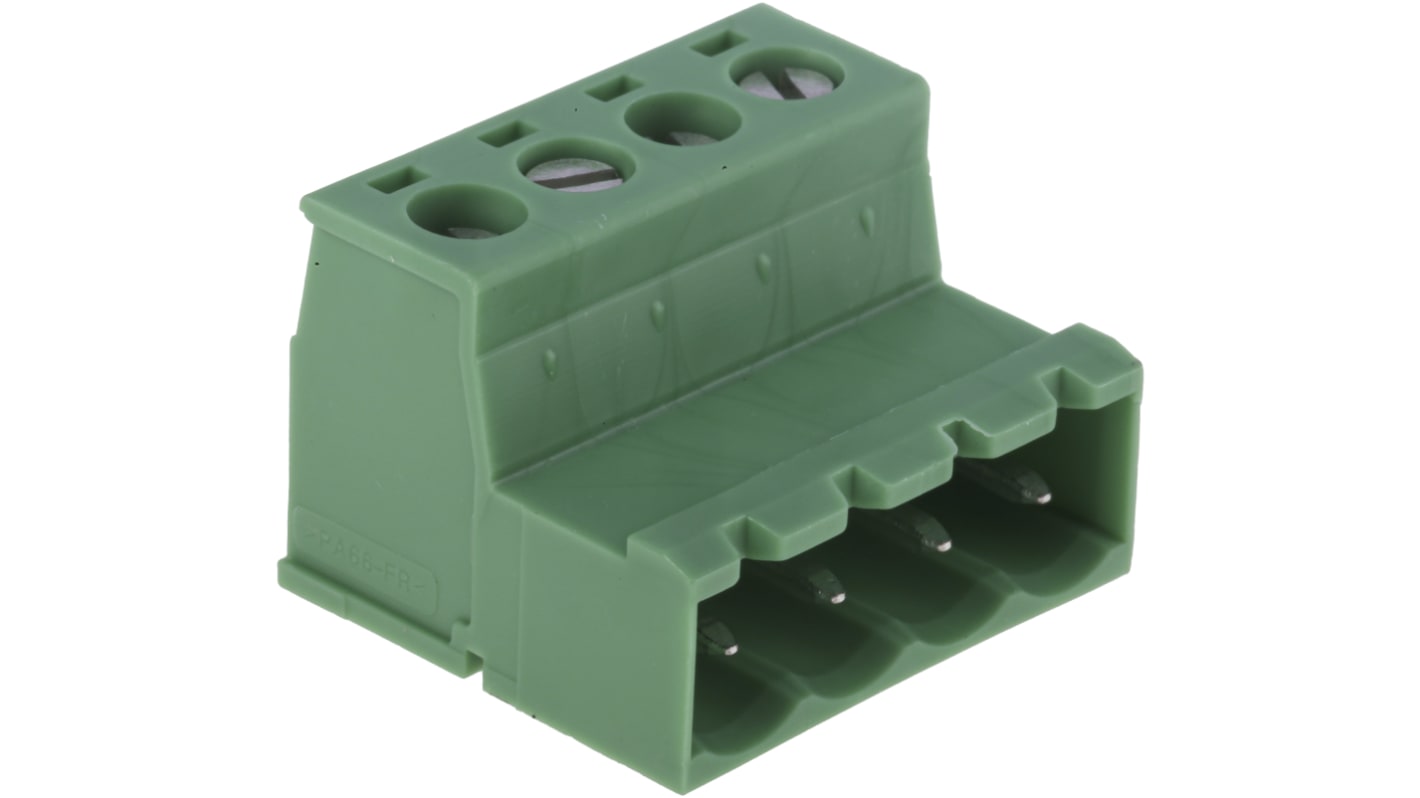

Phoenix Contact CLASSIC COMBICON IC Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row, 1786190

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 pack of 5 units)*

£21.85

(exc. VAT)

£26.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 310 unit(s) shipping from 23 March 2026
  • Plus 170 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 120£4.37£21.85
125 - 370£3.928£19.64
375 - 995£3.724£18.62
1000 - 1995£3.278£16.39
2000 +£3.06£15.30

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
292-9098
Distrelec Article No.:
304-34-798
Mfr. Part No.:
1786190
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

4

Pitch

5.08mm

Number of Rows

1

Current

12A

Housing Material

Polyamide

Minimum Wire Size mm²

0.2mm²

Connector Gender

Male

Maximum Wire Size mm²

2.5mm²

Minimum Wire Size AWG

24 AWG

Maximum Wire Size AWG

12 AWG

Orientation

Angled

Colour

Green

Wire Connection Method

Screw

Voltage

320 V

Standards/Approvals

No

Series

CLASSIC COMBICON IC

Length

21.82mm

Depth

15mm

Width

19.2 mm

COO (Country of Origin):
DE

Phoenix Contact PCB Terminal Block, 5.08mm Pitch, 4 Way - IC 2.5/ 4-ST-5.08 - 1786190


Use this terminal block from Phoenix Contact to establish secure connections on your PCBs (printed circuit boards). The versatile unit has four positions and is suitable for linking hanging cables and connectors to your electrical systems.

A robust screw connection is internationally recognised and spring-loaded to make it resistant to vibrations. With a voltage range of 320V and a current rating of 12A, this terminal block is suited to medium-scale applications with more demanding power requirements.

Nylon housing, in Phoenix Contact's signature green, provides heat and impact resistance for safe operation, while tin contacts are highly conductive for seamless data and power transmission. This terminal block also has a surge voltage of 4kV to handle power spikes. Its compact size (21.82mm wide) make it ideal for use in tight spaces.

• Versatile cable mounting method

• Screw-down termination for secure installation

• Accepts standard wire size of 24 to 12AWG (American Wire Gauge)

• 50 pieces per pack, to keep you stocked up

• Weight of 6.74g won't add stress to your system

• UL (Underwriters Laboratories) 94V-0 flammability rating means it is flame-retardant and burning stops within 10 seconds when a fire occurs

Phoenix Contact CLASSIC COMBICON IC 5.08mm Inverted Plug-in Connectors with Screw Connection


A range of Phoenix Contact CLASSIC COMBICON IC 5.08 mm pitch inverted plug-in connectors with an inverted pin contact system, terminals rated at 12A / 320 V (Class III/2) and 0.2 - 2.5 mm2 screw connections. These PCB connectors can be combined with inverted headers and connectors for shock-proof applications.

Features and Benefits


  • Well known connection principle allows worldwide use

  • Easy PCB replacement thanks to plug-in modules

  • Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections

  • Can be combined with the MSTB 2.5 range

  • Maximum contact force means a low temperature rise

    • Part numbers prefixed with 18253 and 18254 have a screw flange.

    Part numbers prefixed with 18254 and 18256 (IC 2.5 - STGF) have a threaded flange for screw connection using MSTB plugs with a screw flange and can become an inline or panel feed-through terminal block with the IDC-DFR assembly frame.

    Approvals

    UL Recognised, EAC
