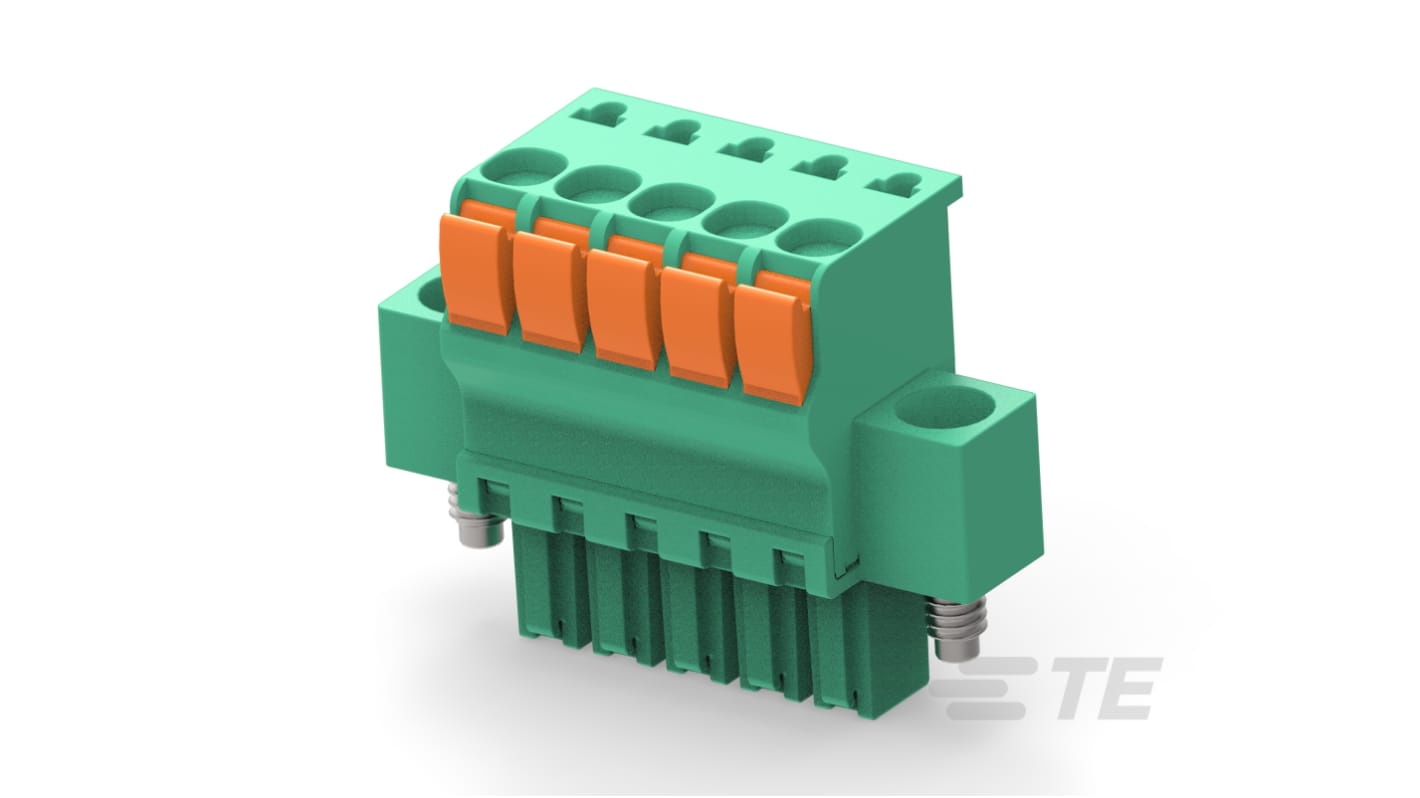

TE Connectivity Buchanan Series Pluggable Terminal Block, 5-Contact, 3.5 mm Pitch, 1 Row, 1986723-5

RS Stock No.:: 504-788
Distrelec Article No.:: 304-59-266
Mfr. Part No.:: 1986723-5
Brand:: TE Connectivity

TE Connectivity Buchanan Series Pluggable Terminal Block, 5-Contact, 3.5 mm Pitch, 1 Row, 1986723-5

Subtotal (1 box of 25 units)*

£155.87

(exc. VAT)

£187.04

(inc. VAT)

Stock information currently inaccessible - Please check back later

Box(es)	Per Box	Per unit*
1 +	£155.87	£6.235

*price indicative

RS Stock No.:: 504-788
Distrelec Article No.:: 304-59-266
Mfr. Part No.:: 1986723-5
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Number of Contacts	5
	Product Type	Pluggable Terminal Block
	Pitch	3.5mm
	Current	11A
	Number of Rows	1
	Minimum Wire Size mm²	0.05mm²
	Housing Material	Polyamide 66
	Maximum Wire Size mm²	2mm²
	Minimum Wire Size AWG	30 AWG
	Maximum Wire Size AWG	14 AWG
	Orientation	Vertical
	Colour	Green
	Voltage	30 V
	Series	Buchanan
	Standards/Approvals	China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, 2016, UL
	Depth	20.75mm
	Length	22.60mm
	Width	27.80 mm

	Select all
	Brand TE Connectivity
	Number of Contacts 5
	Product Type Pluggable Terminal Block
	Pitch 3.5mm
	Current 11A
	Number of Rows 1
	Minimum Wire Size mm² 0.05mm²
	Housing Material Polyamide 66
	Maximum Wire Size mm² 2mm²
	Minimum Wire Size AWG 30 AWG
	Maximum Wire Size AWG 14 AWG
	Orientation Vertical
	Colour Green
	Voltage 30 V
	Series Buchanan
	Standards/Approvals China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, 2016, UL
	Depth 20.75mm
	Length 22.60mm
	Width 27.80 mm

Datasheet - 1986723-5

COO (Country of Origin):: IT

The TE Connectivity Five-position PCB terminal block offers a reliable and efficient wire-to-board connection, ideal for a variety of applications. Designed for convenience, it features a 3.5 mm [.138 in] centreline, allowing for compact assembly without compromising on performance. The innovative plug-type connector ensures secure connections with a 180° wire entry angle, enabling straightforward integration into various devices. Engineered for robustness, this terminal block accommodates wire sizes from 30 to 14 AWG, making it versatile for diverse electrical installations. Its durable construction, coupled with a green housing material, not only ensures visual clarity but also meets essential regulatory standards for electronic components. With push-in spring terminal technology and a high current rating, this connector exemplifies efficiency and reliability, raising the standard for PCB interconnect solutions.

Utilises push-in, spring terminal method for easy wire insertion

Operating voltage rated at 300 VAC ensures high performance under load

Robust housing material enhances durability and longevity

Included lever colour coding simplifies installation and maintenance

Designed for vertical orientation, optimising space within device enclosures

Capable of withstanding operating temperatures from -40 to 65 °C

Compliance with EU RoHS and REACH regulations supports environmental standards

TE Connectivity Buchanan Series Pluggable Terminal Block, 5-Contact, 3.5 mm Pitch, 1 Row, 1986723-5
