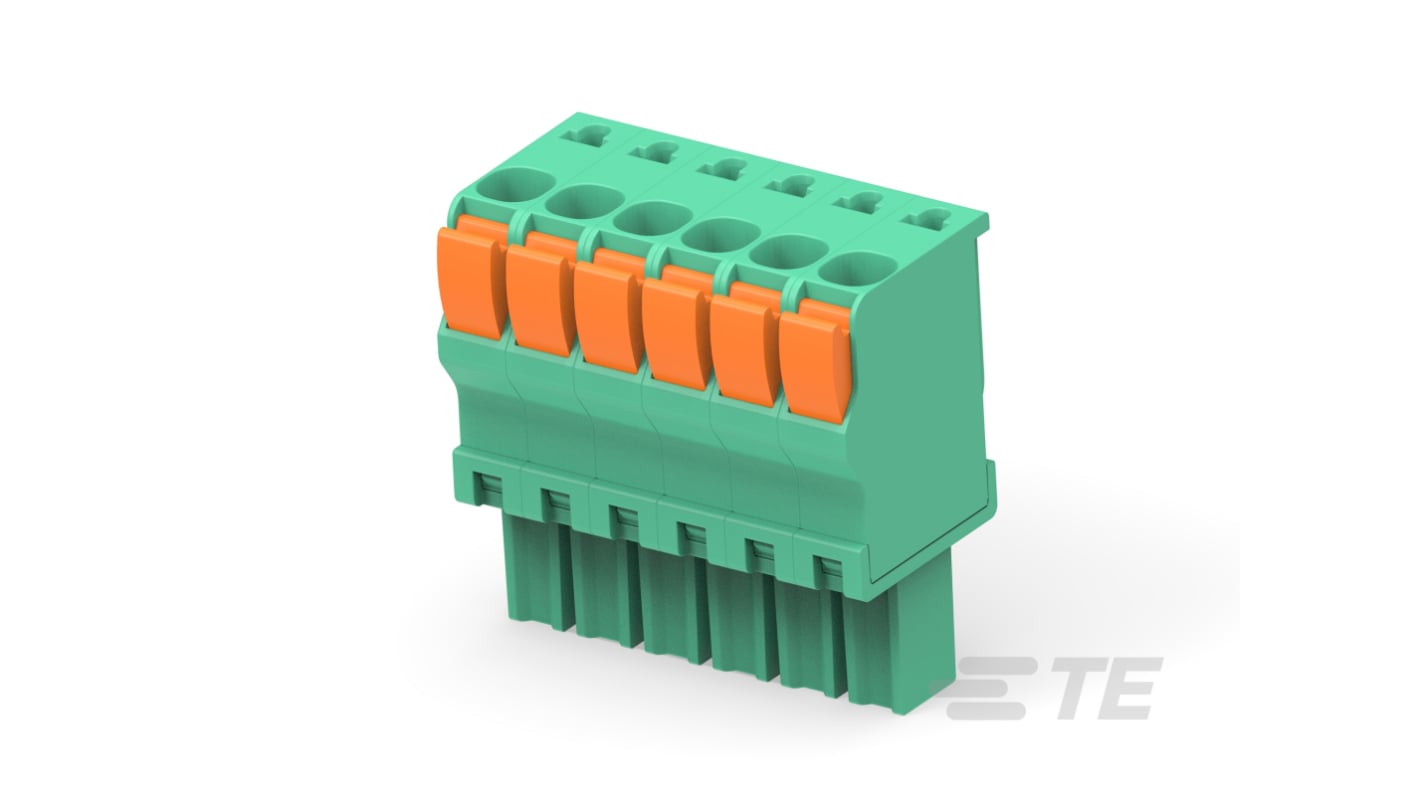

TE Connectivity Buchanan Series Pluggable Terminal Block, 6-Contact, 3.5 mm Pitch, 1 Row, 1986693-6
- RS Stock No.:
- 478-452
- Distrelec Article No.:
- 304-59-227
- Mfr. Part No.:
- 1986693-6
- Brand:
- TE Connectivity
Subtotal (1 box of 25 units)*
£162.08
(exc. VAT)
£194.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £162.08 | £6.483 |
*price indicative
- RS Stock No.:
- 478-452
- Distrelec Article No.:
- 304-59-227
- Mfr. Part No.:
- 1986693-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 6 | |
| Pitch | 3.5mm | |
| Current | 11A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.05mm² | |
| Maximum Wire Size mm² | 2mm² | |
| Minimum Wire Size AWG | 30 AWG | |
| Maximum Wire Size AWG | 14 AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Wire Connection Method | Push-in | |
| Voltage | 30 V | |
| Width | 11.65 mm | |
| Depth | 20.75mm | |
| Series | Buchanan | |
| Length | 21mm | |
| Standards/Approvals | EU ELV Directive 2000/53/EC Compliant, 2016, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 6 | ||
Pitch 3.5mm | ||
Current 11A | ||
Number of Rows 1 | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.05mm² | ||
Maximum Wire Size mm² 2mm² | ||
Minimum Wire Size AWG 30 AWG | ||
Maximum Wire Size AWG 14 AWG | ||
Orientation Vertical | ||
Colour Green | ||
Wire Connection Method Push-in | ||
Voltage 30 V | ||
Width 11.65 mm | ||
Depth 20.75mm | ||
Series Buchanan | ||
Length 21mm | ||
Standards/Approvals EU ELV Directive 2000/53/EC Compliant, 2016, China RoHS 2 Directive MIIT Order No 32, EU RoHS Directive 2011/65/EU Compliant | ||
- COO (Country of Origin):
- IT
The TE Connectivity 6 Position PCB Terminal Block is engineered for seamless wire-to-board connections, providing a reliable solution for your electronic projects. This compact connector features a 3.5 mm centreline and accommodates a range of wire sizes from 30 to 14 AWG. The design incorporates a 180° wire entry angle, ensuring a straightforward installation process while optimising space on PCB layouts. With robust construction and high-temperature resistance, it is ideal for applications demanding durability and stability. It is also compliant with various regulatory standards, making it a dependable choice for professional and industrial applications alike.
Offers enhanced flexibility with its side stackable configuration
Constructed from low halogen materials, ensuring environmental compliance
Incorporates push-in spring terminals for secure wire connections
Designed for operating temperatures ranging from -40°C to 65°C
Features a vibrant green housing for easy identification on the PCB
Provides a dependable current rating of 11 A to support diverse applications
