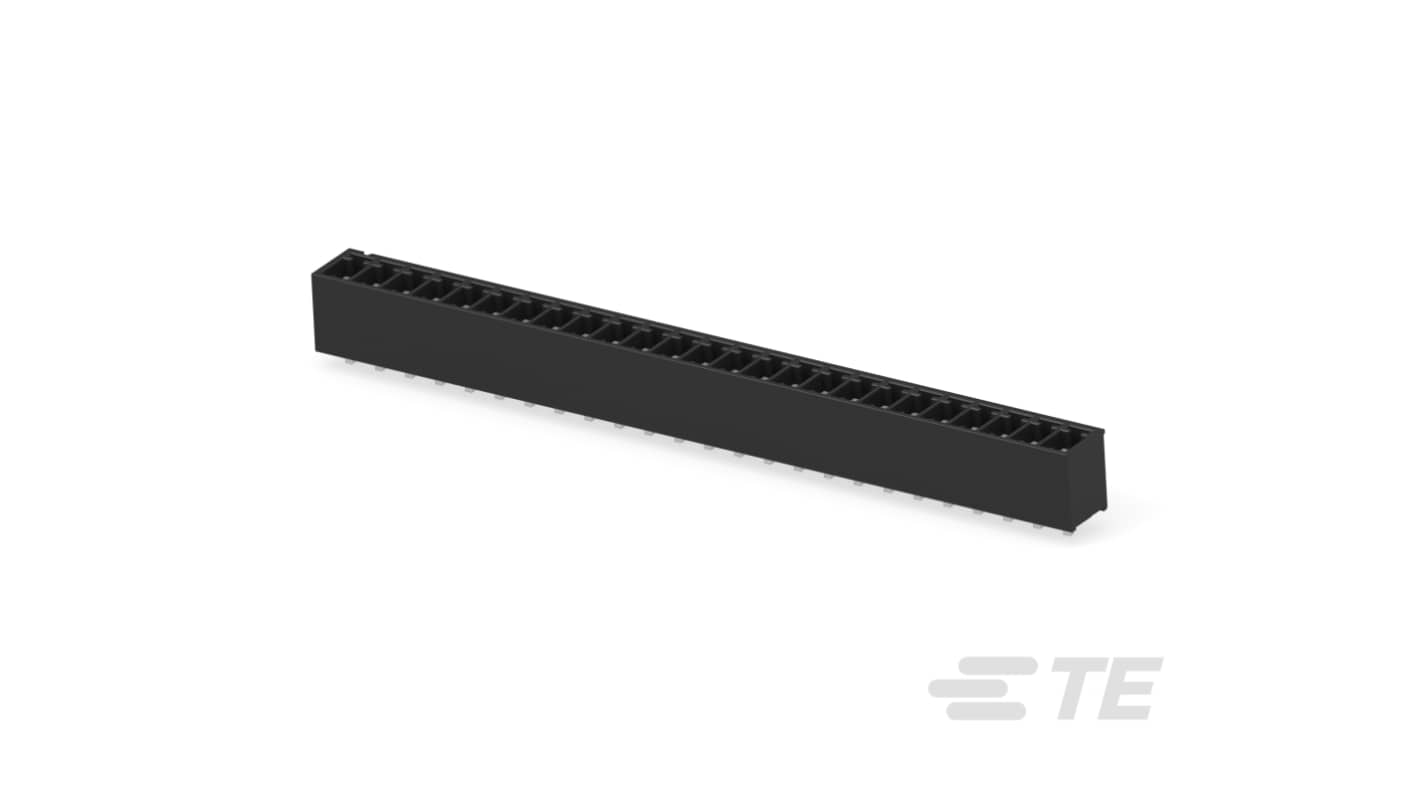

TE Connectivity Buchanan Series Pluggable Terminal Block, 25-Contact, 3.81 mm Pitch, 1 Row, 2-2342078-5

View all Pluggable Terminal Blocks

Subtotal (1 box of 3 units)*

£160.03

(exc. VAT)

£192.04

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +£160.03£53.343

*price indicative

RS Stock No.:
476-746
Distrelec Article No.:
304-59-421
Mfr. Part No.:
2-2342078-5
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

25

Product Type

Pluggable Terminal Block

Pitch

3.81mm

Number of Rows

1

Current

11A

Housing Material

Polyamide

Orientation

Vertical

Colour

Black

Voltage

30 V

Standards/Approvals

EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016

Series

Buchanan

COO (Country of Origin):
IT
The TE Connectivity 25 Position PCB Terminal Block is meticulously engineered for seamless wire-to-board connections. Boasting a compact design with a 3.81 mm centreline, this vertical-mounted component ensures efficient use of space on your printed circuit board. Constructed from high-temperature polyamide, it offers exceptional durability while maintaining optimal performance even under demanding electrical conditions. Designed for a maximum operating voltage of 300 VAC, it supports reliable power and signal applications. With its fully shrouded header type and side stackable configuration, this terminal block not only facilitates easy assembly but also enhances overall connectivity in your electronic designs. Ideal for various industrial and commercial use cases, this component promises reliability and longevity.

Constructed from high temperature polyamide for enhanced durability

Features a vertical orientation to maximise space efficiency

Offers robust performance with a maximum current rating of 11 A

Utilises through hole solder termination for a secure connection

Compliance with EU RoHS Directive ensures minimal environmental impact

Low halogen content contributes to a safer ecological footprint

Side stackable configuration allows for flexible design setups

Contact mating area features a tin plating for improved conductivity
