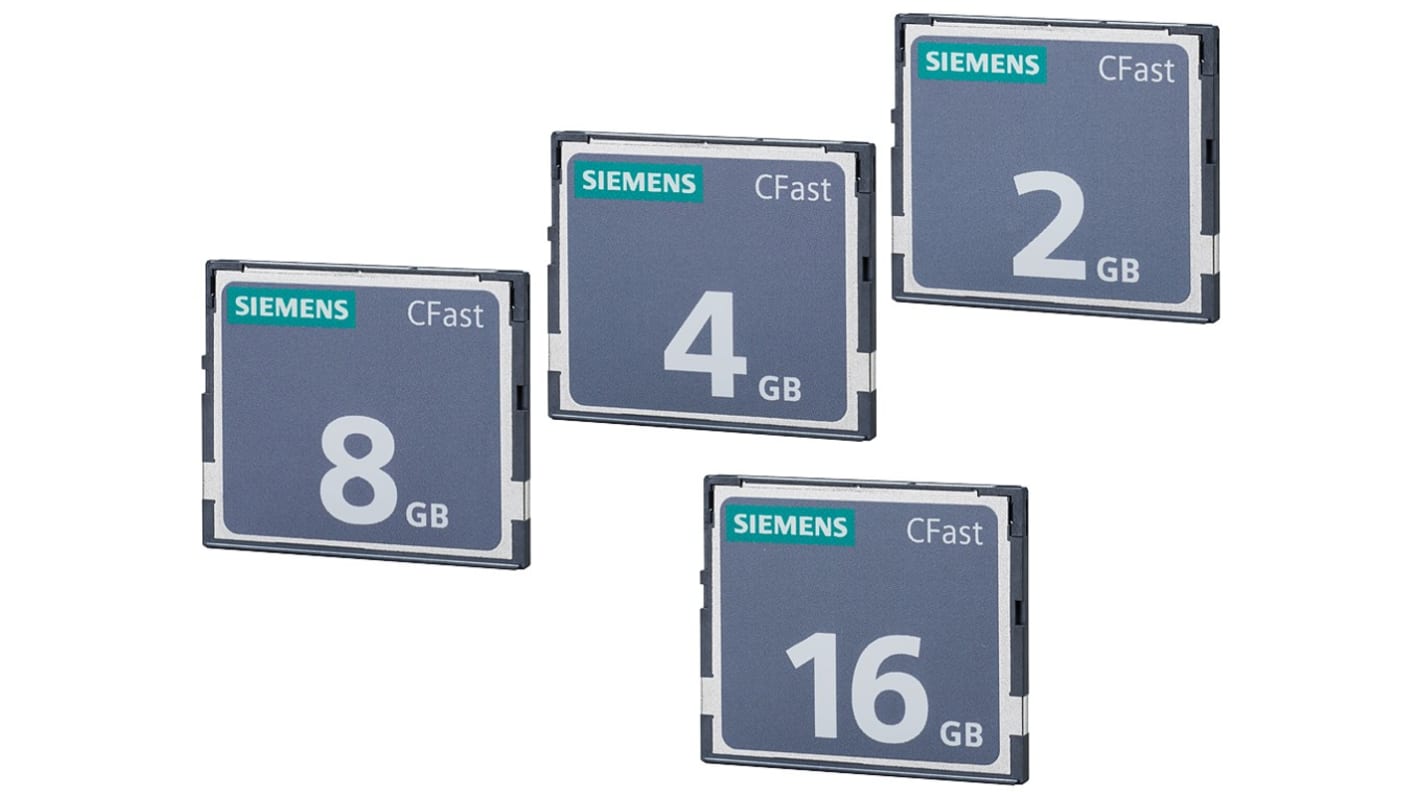

Siemens 6ES Series Memory Card for Use with IPCs With Corresponding Slot
- RS Stock No.:
- 255-3683
- Mfr. Part No.:
- 6ES76482BF100XG0
- Brand:
- Siemens
Subtotal (1 unit)*
£156.74
(exc. VAT)
£188.09
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £156.74 |
*price indicative
- RS Stock No.:
- 255-3683
- Mfr. Part No.:
- 6ES76482BF100XG0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Memory Card | |
| Accessory Type | Memory Card | |
| Series | 6ES | |
| For Use With | IPCs With Corresponding Slot | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Communication Protocol | PROFINET | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Memory Card | ||
Accessory Type Memory Card | ||
Series 6ES | ||
For Use With IPCs With Corresponding Slot | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Communication Protocol PROFINET | ||
- COO (Country of Origin):
- DE
Siemens 6ES Series Memory Card, PROFINET Communication Protocol, For Use With IPCs With Corresponding Slot - 6ES76482BF100XG0
This memory card provides removable flash storage for industrial IPCs and SIMATIC HMI devices with the corresponding slot, delivering a Compact solution for boot media and data retention in automation environments. It operates from a DC supply and is designed for prolonged data preservation and diagnostic capability under a wide ambient temperature range.
Features & Benefits
• 4Gbyte capacity offering sustained data retention
• UDMA6 read/write delivering up to 100MB/s read performance
• SLC NAND flash providing enhanced endurance through wear management
• Power-loss protection reducing risk of data corruption during outages
• Operates between -40°C to 85°C for harsh environments
• UDMA6 read/write delivering up to 100MB/s read performance
• SLC NAND flash providing enhanced endurance through wear management
• Power-loss protection reducing risk of data corruption during outages
• Operates between -40°C to 85°C for harsh environments
**Applications**
• Suitable for use as boot media in industrial IPCs with matching slot
• Ideal for SIMATIC HMI systems requiring Compact flash storage
• Used for storing runtime images and application data in automation
• Can be used in PROFINET-based installations requiring local storage
• Ideal for SIMATIC HMI systems requiring Compact flash storage
• Used for storing runtime images and application data in automation
• Can be used in PROFINET-based installations requiring local storage
What power characteristics does it require?
It runs from a nominal 3.3V DC supply and consumes around 0.7W during Active use and approximately 0.3W when inActive.
How is data integrity managed on the device?
The card uses SLC NAND with controller-level wear levelling and error correction Plus diagnostics to extend usable life beyond single-cell write limits.
What environmental limits should be observed during transport?
Storage temperatures may range from -50°C up to 100°C
avoid environments allowing condensation as operation forbids it.
Is the device partitioning flexible for different workflows?
Yes, it supports fixed mode operation and can be configured with multiple partitions to separate boot, application and data areas.
