- RS Stock No.:
- 282-0626
- Brand:
- RS PRO
23 In stock - FREE next working day delivery available
6 available from Europe for delivery within 1 working day(s).
Added
Price 1 Lot of 5
£12.38
(exc. VAT)
£14.86
(inc. VAT)
Lot(s) | Per Lot | Per unit* |
1 - 2 | £12.38 | £2.476 |
3 - 9 | £11.51 | £2.302 |
10 - 29 | £10.90 | £2.18 |
30 + | £9.91 | £1.982 |
*price indicative |
- RS Stock No.:
- 282-0626
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

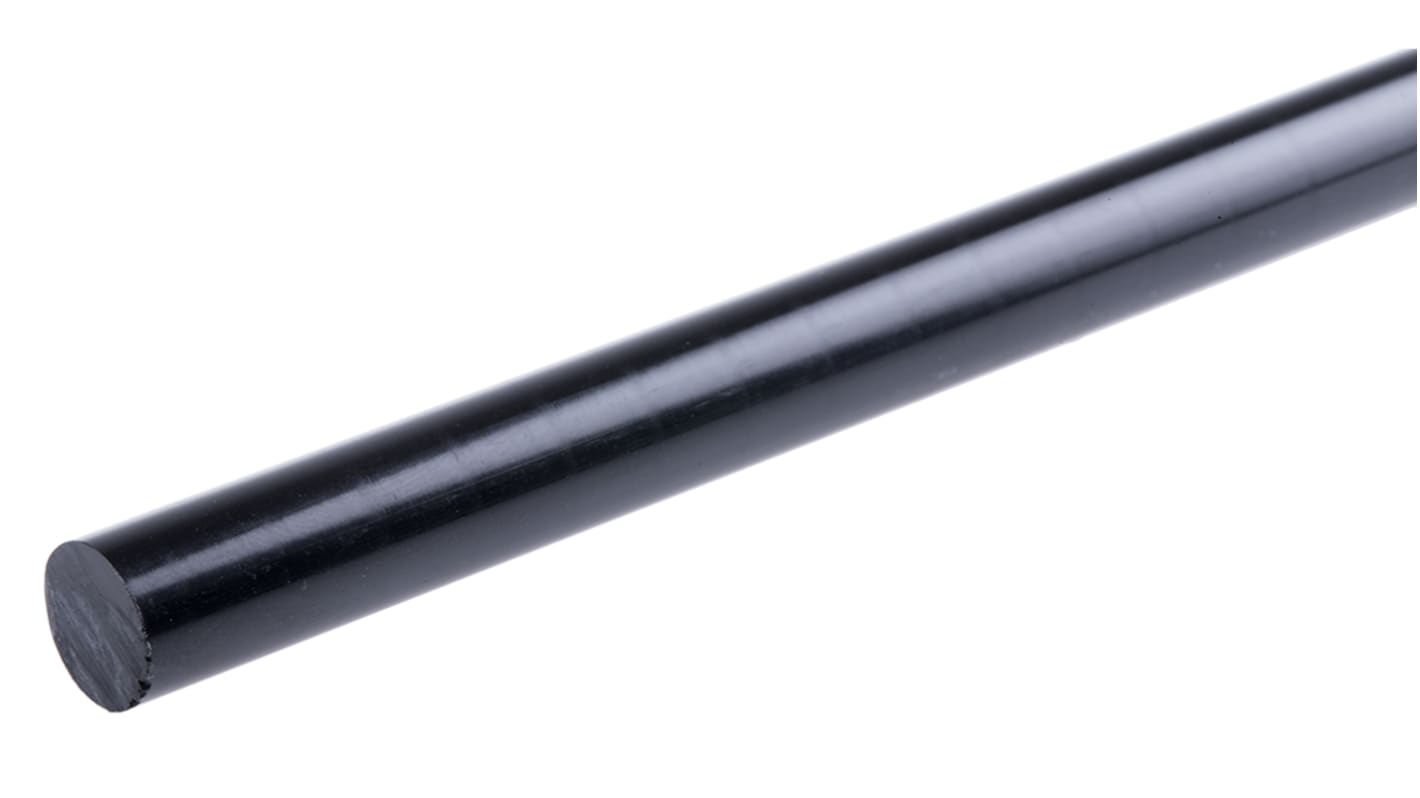

Nylon 6
Black extruded Nylon 6 containing MoS2
Good sliding and dry running properties
Resistant to oils, grease, petrol etc.
Easily welded, bonded, machined and polished
UV and weather resistant
Suitable for friction bearings/strips, gears, castors, pulleys, chains, wheels and machine parts etc
Black in colour
Tolerance thickness sheets: +0.2 mm → +0.9 mm
Good sliding and dry running properties
Resistant to oils, grease, petrol etc.
Easily welded, bonded, machined and polished
UV and weather resistant
Suitable for friction bearings/strips, gears, castors, pulleys, chains, wheels and machine parts etc
Black in colour
Tolerance thickness sheets: +0.2 mm → +0.9 mm
Note
This material is not electrically insulating
Standards
DIN 50 014
Natural & Cast Nylon
Specifications
Attribute | Value |
---|---|
Colour | Black |
Length | 1m |
Material | Nylon |
Form | Rod |
Rod Diameter | 10mm |
Density | 1.14g/cm³ |
Tensile Strength | 75 MPa |
Maximum Operating Temperature | +160°C |
Flammability Rating | UL 94 HB |
Elongation | 25% |
Water Absorption | 8 → 9% |
Hardness | 107 Ball Indentation |
