Save 20% when you buy 30 units
Subtotal (1 lot of 1 unit)*
£102.29
(exc. VAT)
£122.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Lot(s) | Per Lot |
---|---|
1 - 2 | £102.29 |
3 - 9 | £95.13 |
10 - 29 | £90.01 |
30 + | £81.82 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£74.44
(exc. VAT)
£89.33
(inc. VAT)
- RS Stock No.:
- 197-4334
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Colour | Black | |
Length | 1m | |
Material | Delrin® | |
Form | Rod | |
Rod Diameter | 50mm | |
Density | 1.42g/cm³ | |
Tensile Strength | 70 MPa | |
Flammability Rating | UL 94 HB | |
Maximum Operating Temperature | +100°C | |
Water Absorption | 0.5% | |
Hardness | M 90 Rockwell | |
Polymer Type | Homopolymer | |
Elongation | 25% | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Colour Black | ||
Length 1m | ||
Material Delrin® | ||
Form Rod | ||
Rod Diameter 50mm | ||
Density 1.42g/cm³ | ||
Tensile Strength 70 MPa | ||
Flammability Rating UL 94 HB | ||
Maximum Operating Temperature +100°C | ||
Water Absorption 0.5% | ||
Hardness M 90 Rockwell | ||
Polymer Type Homopolymer | ||
Elongation 25% | ||
- COO (Country of Origin):
- DE

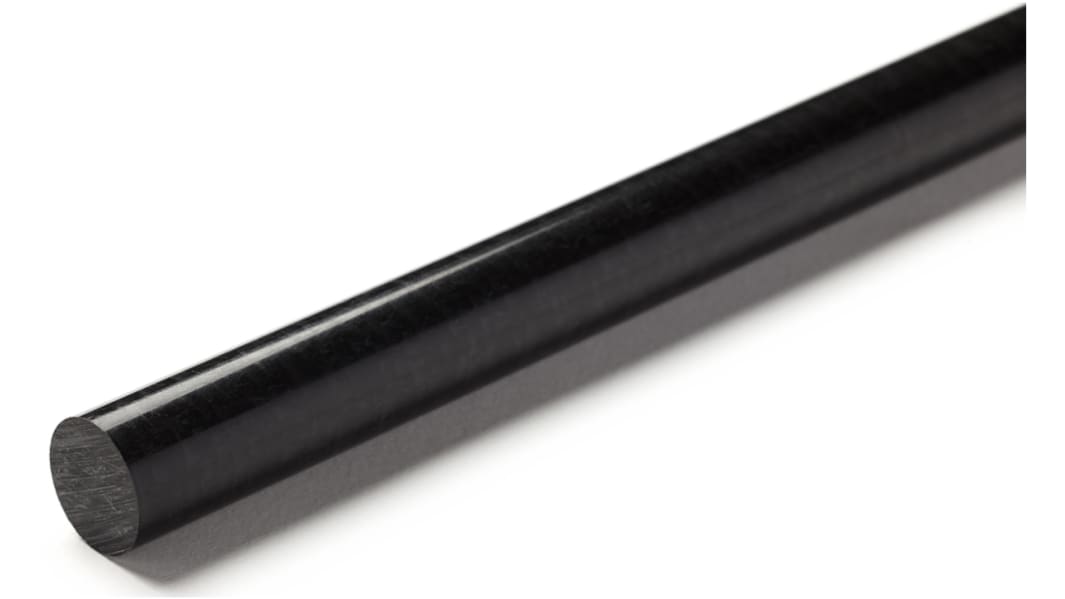

RS PRO Acetal Rods – High-Performance Engineering Plastic
RS PRO Acetal Rods are precision-engineered using high-quality black DuPont™ Delrin® resin, renowned for its superior strength and durability. These rods deliver excellent performance across various demanding applications, thanks to their combination of mechanical resilience, chemical resistance, and machinability.
Why Would You Choose These Acetal Rods?
Built for heavy-duty use, these rods offer exceptional tensile strength and durability, making them ideal for load-bearing applications. Acetals low friction and excellent wear resistance make it suitable for applications requiring smooth motion, such as gears, rollers, and bearings. RS PRO Acetal Rods allow for precise shaping, drilling, and other modifications, providing versatile use across complex mechanical designs.
Features and Benefits
- Manufactured using black DuPont™ Delrin® resin
- High Strength
- Difficult to bond
- Good slide and wear properties
- Good machinability
- Available in Black or White
- Not hot water resistant over 60 °C
- Good chemical resistance
- Easy to polish
Applications
- Automotive
- Aerospace
Acetal Copolymer & Homopolymer
