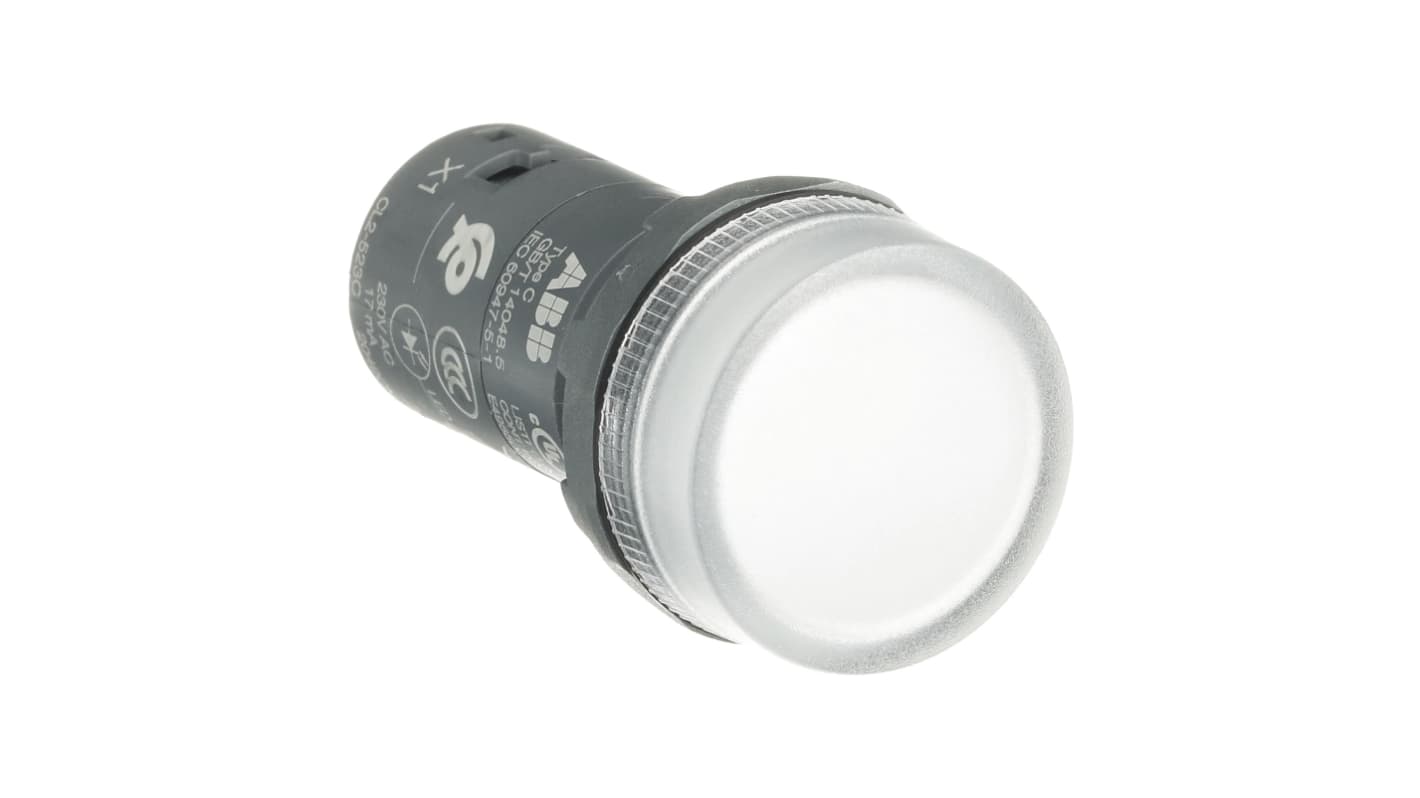

ABB, CL2-523, Panel Mount Clear LED Pilot Light, 22 mm Cutout, IP66, IP67, Round, 230 V ac

View all Pilot Lights
Bulk discount available

Subtotal (1 unit)*

£13.00

(exc. VAT)

£15.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 74 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£13.00
5 - 9£12.34
10 - 24£11.71
25 - 49£11.06
50 +£10.40

*price indicative

RS Stock No.:
910-8015
Mfr. Part No.:
1SFA619403R5238 CL2-523C
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Voltage

230 V ac

Product Type

Pilot Light

Pilot Light Colour

Clear

Cutout Diameter

22mm

Lamp Type

LED

Series

CL2-523

Mount Type

Panel Mount

IP Rating

IP66, IP67

Terminal Type

Screw

Current Rating

17 mA

Pilot Light Shape

Round

Body Material

Plastic

Hazardous Area Certification

No

Standards/Approvals

DIN EN 62094-1, UL 508, EN60068-2-2, EN60068-2-1

Bezel Material

Plastic

COO (Country of Origin):
CN

ABB CL2 Series Pilot Light, 230V AC Voltage Rating, 22mm Cutout Diameter - 1SFA619403R5238 CL2-523C


This pilot light is a complete unit designed to operate at 230V AC. Ideal for panel mounting, it features a round design with a clear lens that provides an unobstructed view of the LED indicator. With a cutout diameter of 22mm, it is crafted from durable polycarbonate, suitable for a variety of applications in automation and electrical settings.

Features & Benefits


• Clear lens enhances visibility in various lighting conditions

• LED type ensures lower power consumption and longevity

• Designed for panel mount applications enabling streamlined installation

• Multiple IP ratings (IP66, IP67, IP69K, IP20) ensure protection against harsh environments

• Screw terminal type allows for secure and easy wiring connections

• Compact 22mm cutout suitable for limited space installations

Applications


• Used for indicating machine status in control panels

• Suitable for operation in industrial and commercial environments

• Often installed on machinery to signal operational readiness

• Ideal for electrical panels in both residential and commercial buildings

How does the IP rating impact suitability for different environments?


The multiple IP ratings indicate this unit’s resilience against dust and water ingress, making it suitable for use in both clean and harsh conditions such as outdoor installations and wet environments.

What is the significance of the LED lamp type?


Using an LED lamp type offers significant energy efficiency and a longer operational lifespan compared to traditional incandescent options, reducing maintenance costs and frequency of bulb replacements.

Why is the cutout diameter important for installations?


A precise cutout diameter of 22mm ensures compatibility with standard mounting panels, allowing for straightforward integration into existing setups without requiring additional modifications.
