Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB4 22 mm pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, in return they offer high vibration resistance, shake proof terminal screws and a shock protection level of up to IK06.

• High vibration resistance with shake-proof terminal screws
• Shock protection
• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

• Conformity with IEC, UL, CSA, CCC EAC, and JIS standards
• Group and Category: 112 D-EX tD A21
• Certificate No. INERIS 04 ATEX 9004U
• CE marking and marine approvals
• Up to IP66, 67, 69, 69K, and type 4X protection ratings
• Up to IK06 shock protection

Applications - The XB4 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Food and beverage
• Automotive
• Restaurants
• Commercial buildings

Manufacturers part number with EX denotation indicates EX rated product.
Direct supply type will require separate purchase of appropriate BA9s incandescent lamp, neon or LED.
Transformer types are supplied complete with BA9s incandescent.
LED types are complete with integral LED light block.

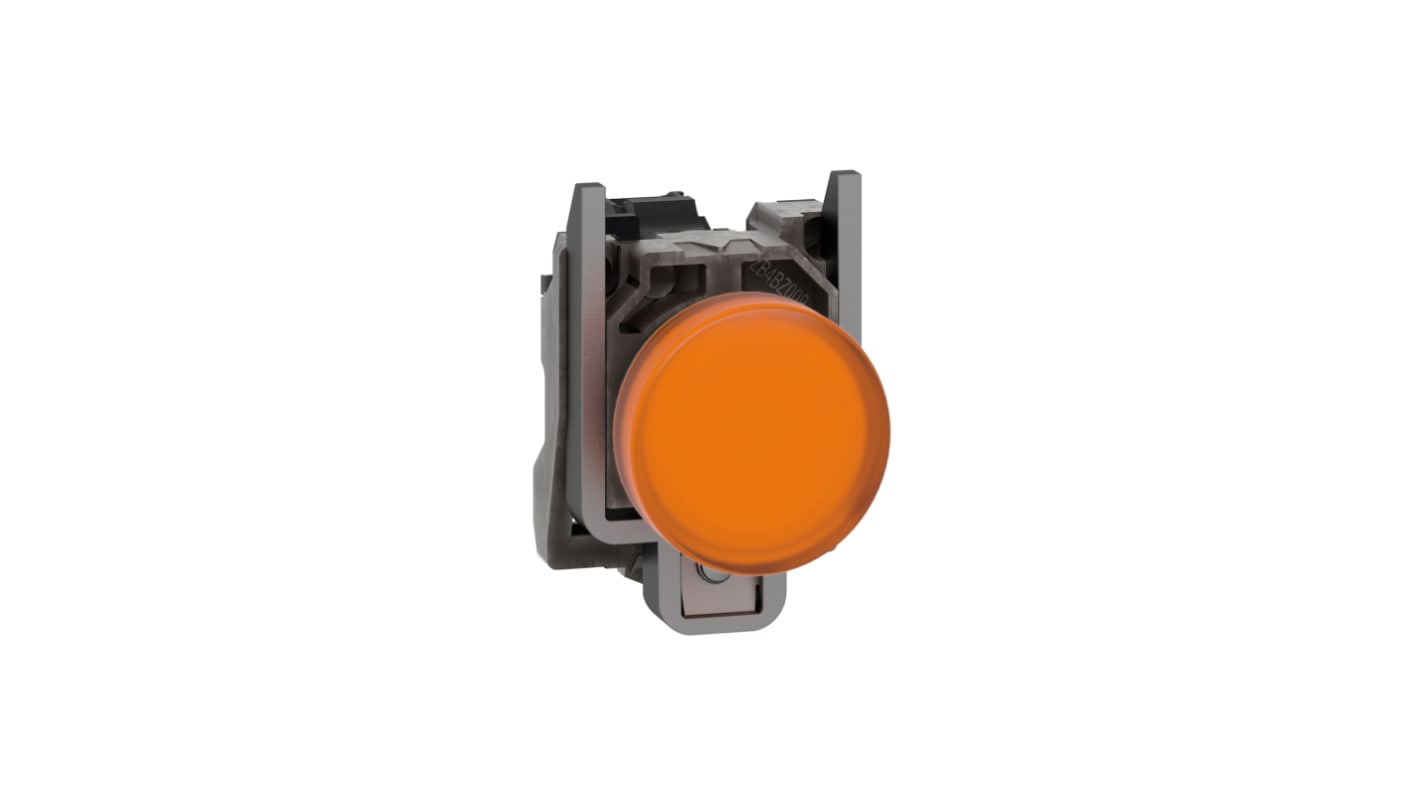

This pilot light by Schneider Electric is suitable for a variety of applications. Featuring a universal LED lamp, this pilot light offers efficient lighting with low energy consumption. The robust metal construction ensures durability, making it an ideal choice for industrial environments. With a cutout diameter of 22mm, this pilot light is easy to install and provides reliable performance.

• Metal body material for durability
• Universal LED lamp type for efficient lighting
• Orange pilot light colour for clear visibility
• Panel mounting type for easy installation
• Screw terminal type for secure connections
• 120V AC voltage rating for versatile usage
• IP67 protection rating for reliability in harsh environments

• Industrial control panels
• Electrical equipment monitoring

Yes, the Schneider Electric pilot light is designed for use in industrial settings due to its durable construction and reliable performance.

The orange pilot light colour ensures clear visibility, even in bright conditions, making it ideal for various applications.

Yes, the panel mount mounting type allows for easy installation on control panels and other surfaces, providing convenience for users.
