Providing functions to machines and panels, Schneider Electric combines performance with attractive design in the XB4 22 mm pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, faston connector, spring terminal and printed circuit board.

Each LED pilot light has a 22 mm mounting diameter, in return they offer high vibration resistance, shake proof terminal screws and a shock protection level of up to IK06.

• High vibration resistance with shake-proof terminal screws
• Shock protection
• -40°C –to 70°C operating temperature
• Wide choice of contact blocks
• High performance in demanding environments
• Flexibility and Adaptability
• Quick and simple installation

• Conformity with IEC, UL, CSA, CCC EAC, and JIS standards
• Group and Category: 112 D-EX tD A21
• Certificate No. INERIS 04 ATEX 9004U
• CE marking and marine approvals
• Up to IP66, 67, 69, 69K, and type 4X protection ratings
• Up to IK06 shock protection

Applications - The XB4 series can be used for general purpose, Building and Infrastructure and Industry application, other applications include:
• Machine and control panel
• Food and beverage
• Automotive
• Restaurants
• Commercial buildings

Manufacturers part number with EX denotation indicates EX rated product.
Direct supply type will require separate purchase of appropriate BA9s incandescent lamp, neon or LED.
Transformer types are supplied complete with BA9s incandescent.
LED types are complete with integral LED light block.

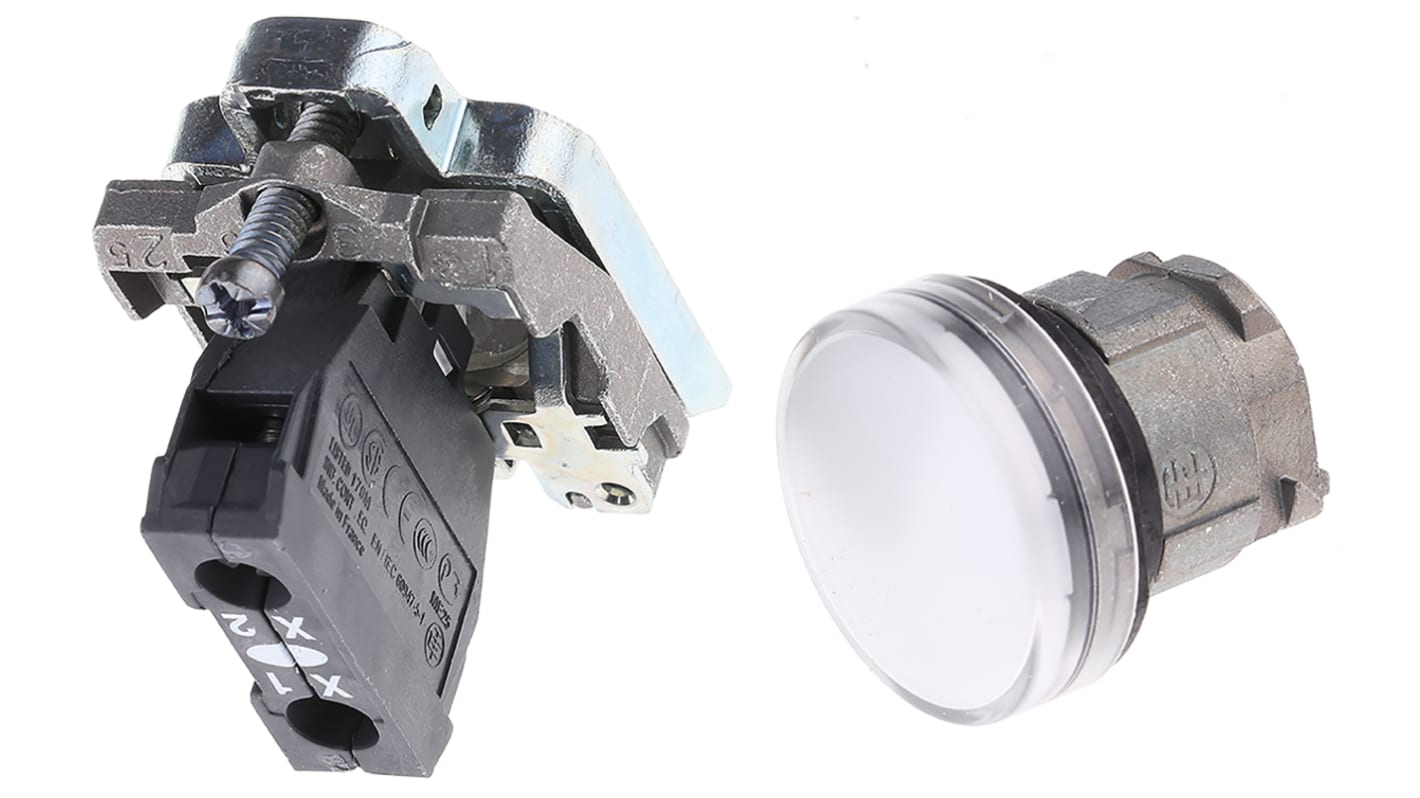

This universal LED pilot light by Schneider Electric is available with a 22mm cutout diameter and a white pilot light colour. Ideal for panel mounting, this chromium plated metal device features a screw terminal type and operates at 120V AC. It is designed for optimal performance in various industrial applications.

• Chromium plated metal bezel for durability
• 22mm mounting diameter for easy installation
• Screw clamp terminals for secure connections
• Protected LED light source for longevity
• IP67 protection against dust and water ingress
• Resistance to high pressure washer up to 7000000 Pa at 55°C

• Suitable for control panels in industrial machinery
• Ideal for use in electrical substations
• Can be used for signalling in control rooms

Yes, it is resistant to high pressure washers up to 7000000 Pa at 55°C.

Yes, the pilot light is designed for a 22mm mounting diameter.

The LED light source is integral and not replaceable.
