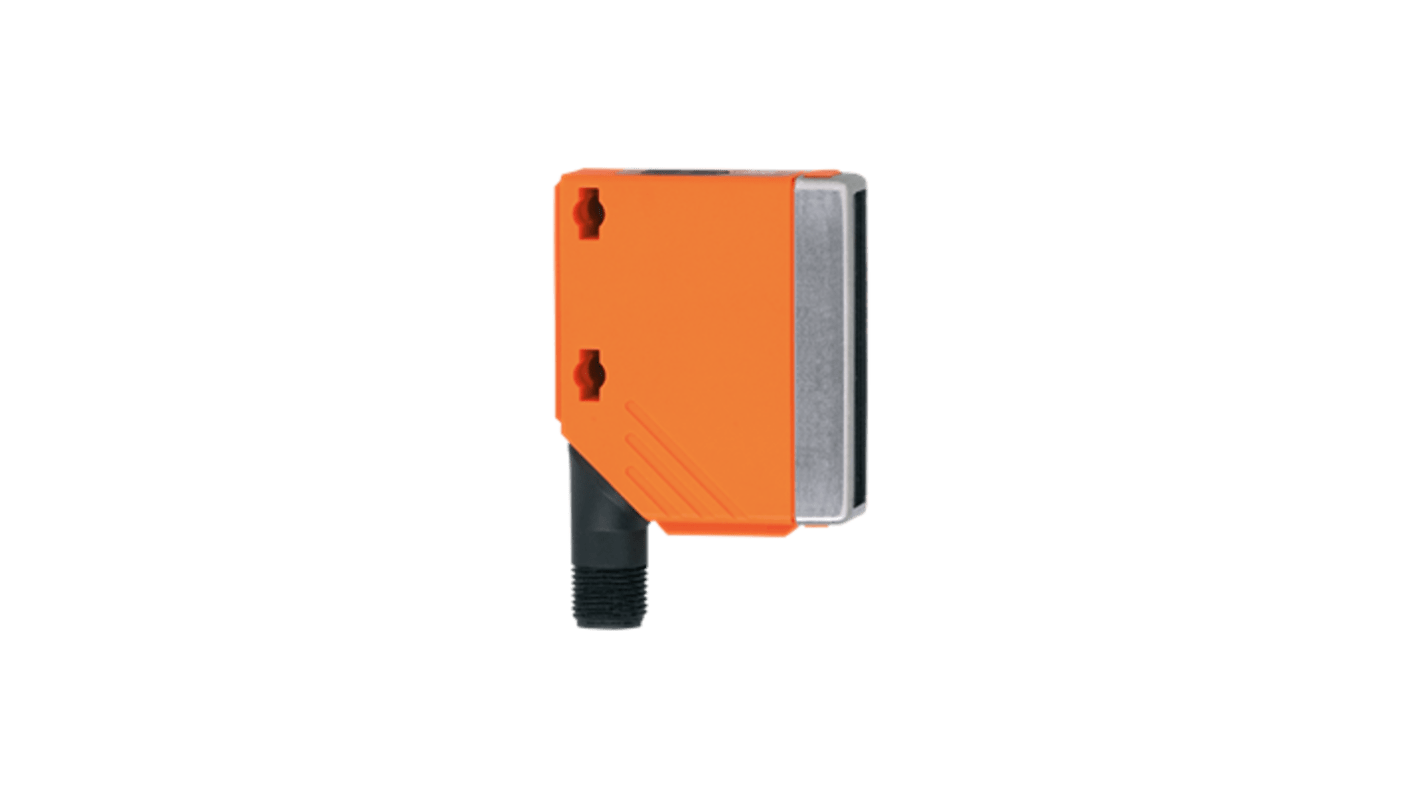

ifm electronic Distance Sensor, Rectangular Sensor, 0.03 → 2 m, NO/NC, NPN, IP65, IP67
- RS Stock No.:
- 595-509
- Mfr. Part No.:
- O5D152
- Brand:
- ifm electronic
Subtotal (1 unit)*
£215.39
(exc. VAT)
£258.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £215.39 |
*price indicative
- RS Stock No.:
- 595-509
- Mfr. Part No.:
- O5D152
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Distance Sensor | |
| Sensor Style | Rectangular | |
| Detection Type | Photoelectric | |
| Output Type | NO/NC, NPN | |
| Terminal Type | M12 Connector | |
| Maximum DC Voltage | 30V dc | |
| Interface Type | IO-Link | |
| Light Source | Red Light | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Current | 100mA | |
| Standards/Approvals | EMC EN 60947-5-2, EN / IEC60825-1:2014, Laser protection class 1 EN / IEC60825-1:2007, SDCI standard IEC 61131-9, Shock resistance DIN EN 60068-2-27, Vibration resistance DIN EN 60068-2-6 | |
| Series | O5D152 | |
| Hazardous Area Certification | No | |
| Mount Type | Screw | |
| Housing Material | Polyamide | |
| Detection Range | 0.03 → 2 m | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Distance Sensor | ||
Sensor Style Rectangular | ||
Detection Type Photoelectric | ||
Output Type NO/NC, NPN | ||
Terminal Type M12 Connector | ||
Maximum DC Voltage 30V dc | ||
Interface Type IO-Link | ||
Light Source Red Light | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Current 100mA | ||
Standards/Approvals EMC EN 60947-5-2, EN / IEC60825-1:2014, Laser protection class 1 EN / IEC60825-1:2007, SDCI standard IEC 61131-9, Shock resistance DIN EN 60068-2-27, Vibration resistance DIN EN 60068-2-6 | ||
Series O5D152 | ||
Hazardous Area Certification No | ||
Mount Type Screw | ||
Housing Material Polyamide | ||
Detection Range 0.03 → 2 m | ||
- COO (Country of Origin):
- DE
The ifm electronic Photoelectric distance sensor offers precise distance measurement with robust features tailored for a variety of applications. Designed for reliability, this sensor features background suppression to eliminate interference from reflective surfaces, ensuring accurate readings in demanding environments. With a detection range of 0.03 to 2 metres, it delivers consistent performance, aided by a 3-digit alphanumeric display for real-time feedback. Built to endure, its IP65 and IP67 protection ratings ensure resilience against dust and water, making it ideal for industrial settings. Additionally, the sensor operates efficiently at a voltage of 10 to 30 V DC, with integrated overload and short-circuit protection for enhanced durability.
Compact rectangular housing allows for versatile mounting options
Alphanumeric display provides visual status updates for ease of monitoring
Two digital outputs enhance connectivity with devices and systems
NPN electrical design supports multiple output configurations
Background suppression feature adeptly reduces false readings from nearby objects
IO Link communication interface offers advanced data interaction capabilities
Laser protection class 1 complies with safety regulations for user safety
Robust design provides high immunity to extraneous light maintaining measurement integrity
