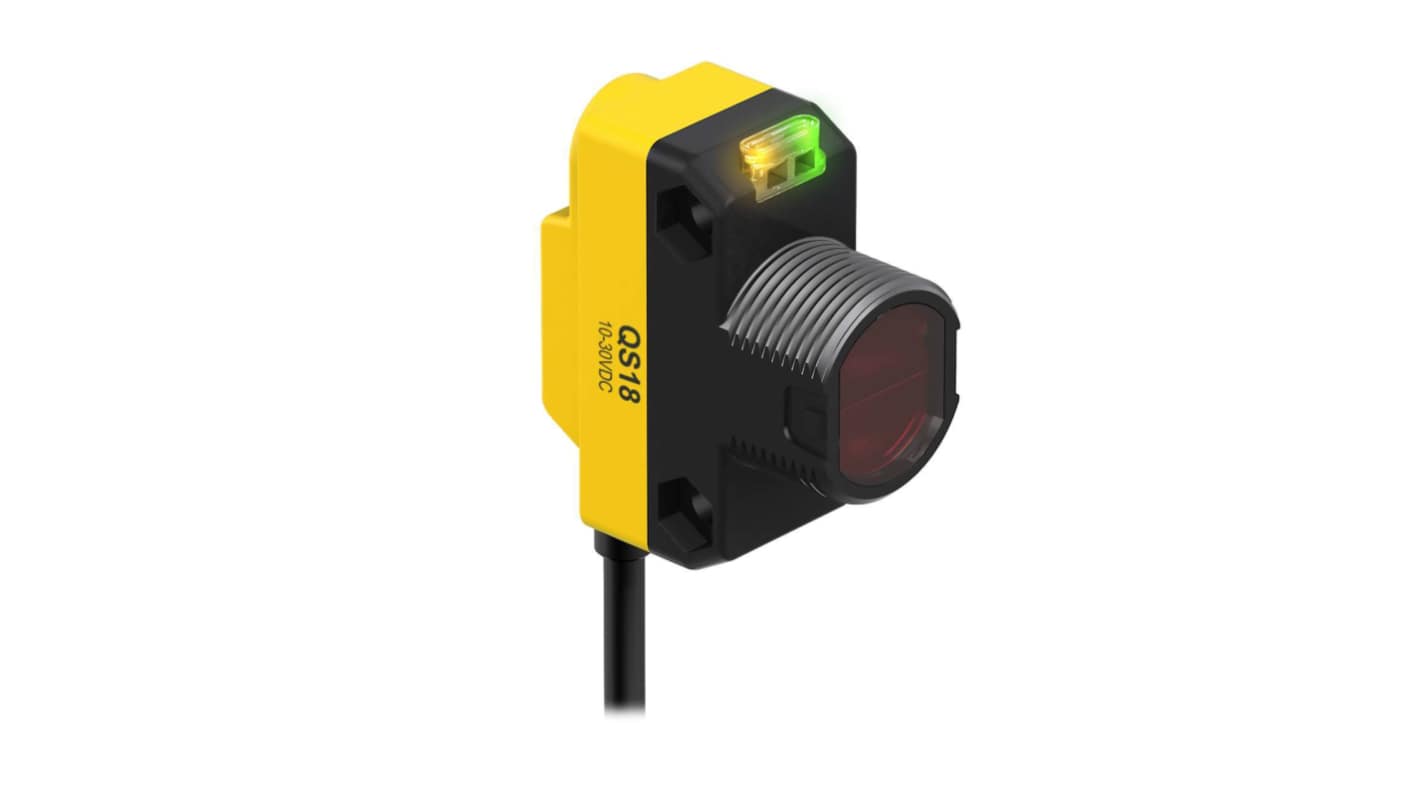

Banner Polarised Retroreflective Photoelectric Sensor, Rectangular Sensor, 3500 mm, NPN, IP67
- RS Stock No.:
- 293-785
- Mfr. Part No.:
- QS18EN6LPQ
- Brand:
- Banner
Subtotal (1 unit)*
£107.13
(exc. VAT)
£128.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £107.13 |
*price indicative
- RS Stock No.:
- 293-785
- Mfr. Part No.:
- QS18EN6LPQ
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Sensor Style | Rectangular | |
| Product Type | Photoelectric Sensor | |
| Detection Type | Polarised Retroreflective | |
| Output Type | NPN | |
| Maximum DC Voltage | 30V dc | |
| Light Source | Visible Red | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Current | 100mA | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, RoHS, UL, US | |
| Response Time | 600μs | |
| Hazardous Area Certification | No | |
| Mount Type | M18 Threaded Mount | |
| Series | QS18E | |
| Housing Material | Thermoplastic | |
| Detection Range | 3500 mm | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Sensor Style Rectangular | ||
Product Type Photoelectric Sensor | ||
Detection Type Polarised Retroreflective | ||
Output Type NPN | ||
Maximum DC Voltage 30V dc | ||
Light Source Visible Red | ||
IP Rating IP67 | ||
Minimum Operating Temperature -20°C | ||
Maximum Current 100mA | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, RoHS, UL, US | ||
Response Time 600μs | ||
Hazardous Area Certification No | ||
Mount Type M18 Threaded Mount | ||
Series QS18E | ||
Housing Material Thermoplastic | ||
Detection Range 3500 mm | ||
- COO (Country of Origin):
- MX
The Banner Compact yet powerful sensor is designed to enhance productivity with its high performance capabilities. The sensor employs innovative static and dynamic teach options, perfect for varying light conditions. Engineered for reliability, it boasts a smart power control algorithm, offering optimal performance even in low contrast environments. Its robust ABS housing guarantees durability with an IP67 rating, ensuring it withstands harsh working conditions.
Equipped with versatile teach modes for flexible setup
Smart power algorithm maximises efficiency in low light scenarios
User friendly configuration with intuitive push button or remote options
Discrete output options allow seamless integration into existing systems
Compact size facilitates easy barrel or side mount installation
Multiple connection choices cater to a range of installation requirements
