Banner Polarised Retroreflective Photoelectric Sensor, Rectangular Sensor, Bipolar NPN/PNP, IP67
- RS Stock No.:
- 293-455
- Mfr. Part No.:
- SME312LP
- Brand:
- Banner
Subtotal (1 unit)*
£171.79
(exc. VAT)
£206.15
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £171.79 |
*price indicative
- RS Stock No.:
- 293-455
- Mfr. Part No.:
- SME312LP
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Photoelectric Sensor | |
| Sensor Style | Rectangular | |
| Detection Type | Polarised Retroreflective | |
| Terminal Type | M12 Connector | |
| Maximum AC Voltage | 250V ac | |
| Maximum DC Voltage | 30V dc | |
| Light Source | Infrared LED | |
| IP Rating | IP67 | |
| Materials Detected | Cardboard, Metal, Plastic | |
| Minimum Operating Temperature | -20°C | |
| Maximum Current | 150mA | |
| Maximum Operating Temperature | 70°C | |
| Response Time | 0.5ms | |
| Standards/Approvals | Crus, CE, NEMA 6P and IEC IP67, CSA | |
| Mount Type | M18 Threaded Mount | |
| Housing Material | Thermoplastic | |
| Hazardous Area Certification | No | |
| Series | MINI-BEAM Expert | |
| Detection Range | Bipolar NPN/PNP | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Photoelectric Sensor | ||
Sensor Style Rectangular | ||
Detection Type Polarised Retroreflective | ||
Terminal Type M12 Connector | ||
Maximum AC Voltage 250V ac | ||
Maximum DC Voltage 30V dc | ||
Light Source Infrared LED | ||
IP Rating IP67 | ||
Materials Detected Cardboard, Metal, Plastic | ||
Minimum Operating Temperature -20°C | ||
Maximum Current 150mA | ||
Maximum Operating Temperature 70°C | ||
Response Time 0.5ms | ||
Standards/Approvals Crus, CE, NEMA 6P and IEC IP67, CSA | ||
Mount Type M18 Threaded Mount | ||
Housing Material Thermoplastic | ||
Hazardous Area Certification No | ||
Series MINI-BEAM Expert | ||
Detection Range Bipolar NPN/PNP | ||
- COO (Country of Origin):
- US

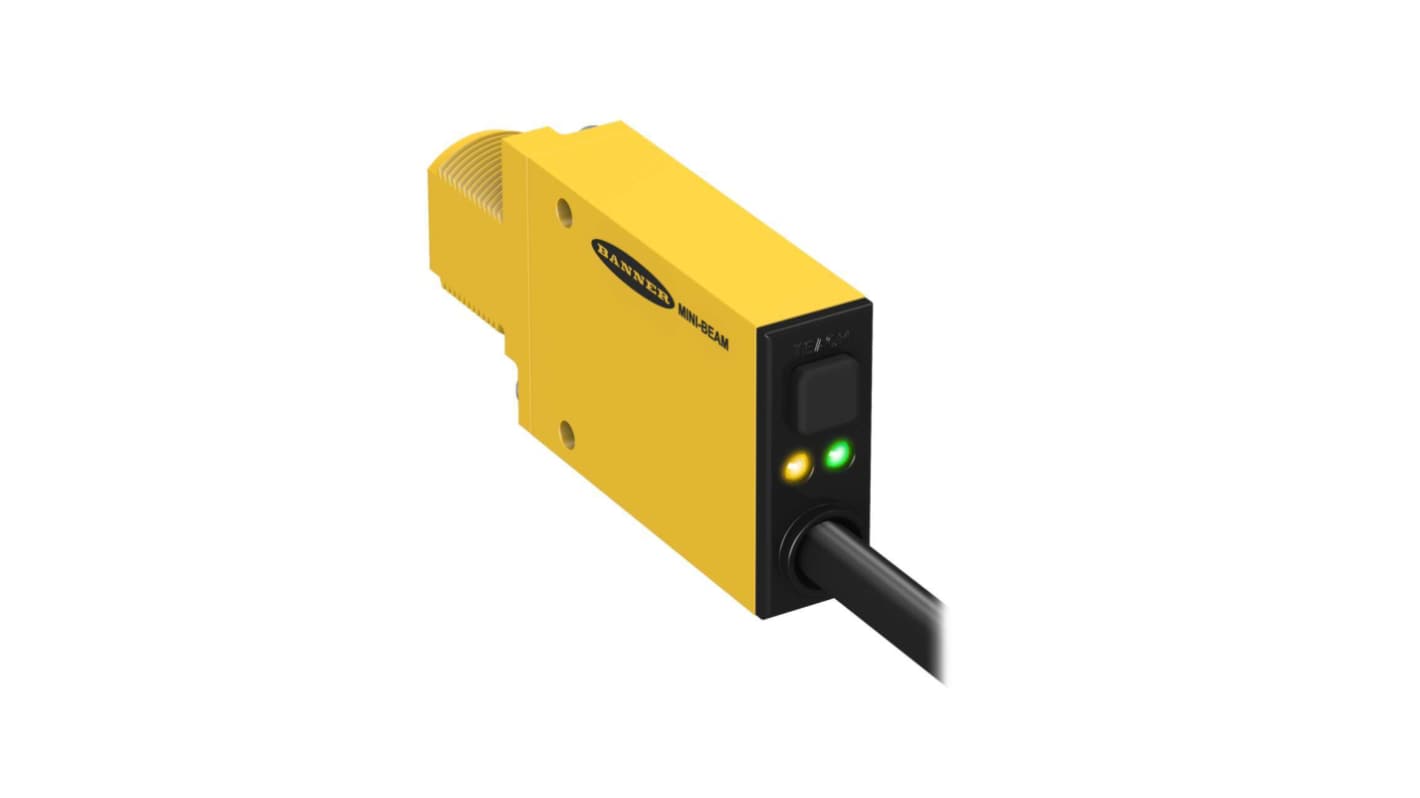

The Banner Mini beam Photoelectric sensor that offers versatile performance for a wide range of applications. Designed with a compact form factor it incorporates innovative TEACH mode programming for effortless sensitivity adjustment. This device excels in detecting clear objects through its unique polarized retroreflective sensing mode making it ideal for environments where traditional detection methods fall short. Engineered for reliability it features robust construction and is equipped with integral LED indicators to provide real time feedback on operational status.
Equipped with simple push button programming for quick configuration
Offers multiple sensing modes to adapt to diverse detection needs
Designed for remote programming adding flexibility to configurations
Robust housing ensures durability in challenging environments
Specially crafted for reliable detection of clear objects
