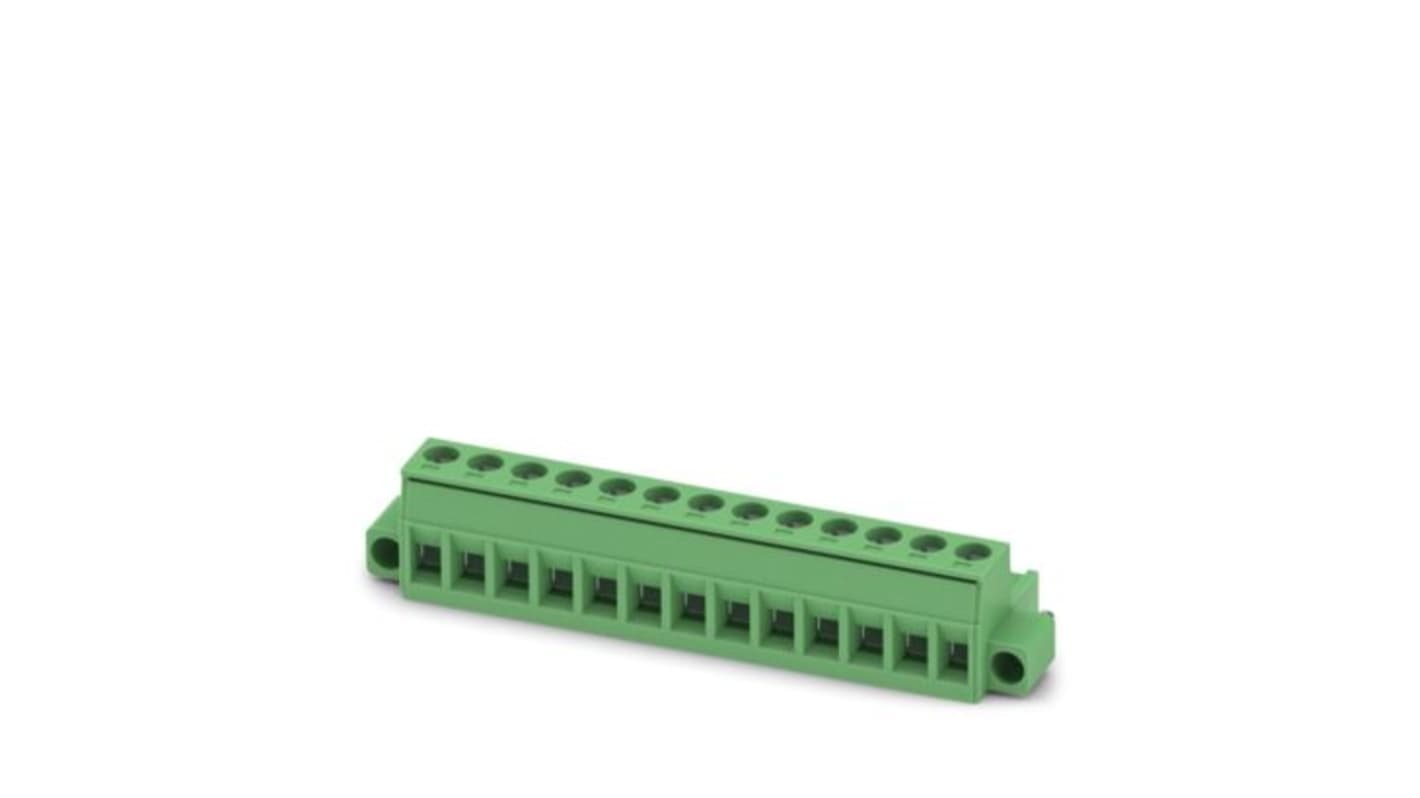

Phoenix Contact MSTB Series PCB Connector, 13-Contact, 5 mm Pitch, Screw, 1 Row Screw
- RS Stock No.:
- 497-144
- Mfr. Part No.:
- 1786941
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£566.67
(exc. VAT)
£680.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £566.67 | £11.333 |
*price indicative
- RS Stock No.:
- 497-144
- Mfr. Part No.:
- 1786941
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 13 | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Mount Type | Screw | |
| Connector Gender | Female | |
| Colour | Green | |
| Termination Type | Screw | |
| Voltage | 320V | |
| Series | MSTB | |
| Standards/Approvals | IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60664-1:2007-04, DIN 46228-1, DIN 46228-4, UL 94 V0, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19931011, DNV GL Approval ID: TAE00001EY, VDE Approval ID: 40050694 | |
| Width | 75.01mm | |
| Length | 18.2mm | |
| Depth | 15mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 13 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 12A | ||
Housing Material Polyamide | ||
Mount Type Screw | ||
Connector Gender Female | ||
Colour Green | ||
Termination Type Screw | ||
Voltage 320V | ||
Series MSTB | ||
Standards/Approvals IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60664-1:2007-04, DIN 46228-1, DIN 46228-4, UL 94 V0, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19931011, DNV GL Approval ID: TAE00001EY, VDE Approval ID: 40050694 | ||
Width 75.01mm | ||
Length 18.2mm | ||
Depth 15mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB connector, part of the MSTB 2.5 series, is designed to ensure a robust and reliable connection for various electrical applications. Featuring 13 positions with a pitch of 5 mm, it provides flexibility in configuration while maintaining high standards of performance. With its screw connection method and tension sleeve design, this connector guarantees secure connections, reducing the risk of loosening over time. It is suitable for circuits with nominal currents up to 12 A and voltages up to 320 V. The connector's durable housing, made from RoHS-compliant materials, is not only environmentally friendly but also designed to withstand demanding conditions, making it ideal for industrial use. Its lightweight design coupled with easy mounting ensures that installation is straightforward and efficient, allowing you to focus on your project without hassle.
Offers individual position coding for enhanced operational flexibility
Constructed from high-quality materials to ensure long-lasting performance
Provides excellent contact resistance for reliable electrical connections
Ensures easy mounting with a screw flange system for stable installation
Features a green colour for visual identification in complex panel layouts
Compatible with various conductor cross sections, increasing versatility in applications
Designed to meet rigorous environmental standards for safety and compliance
