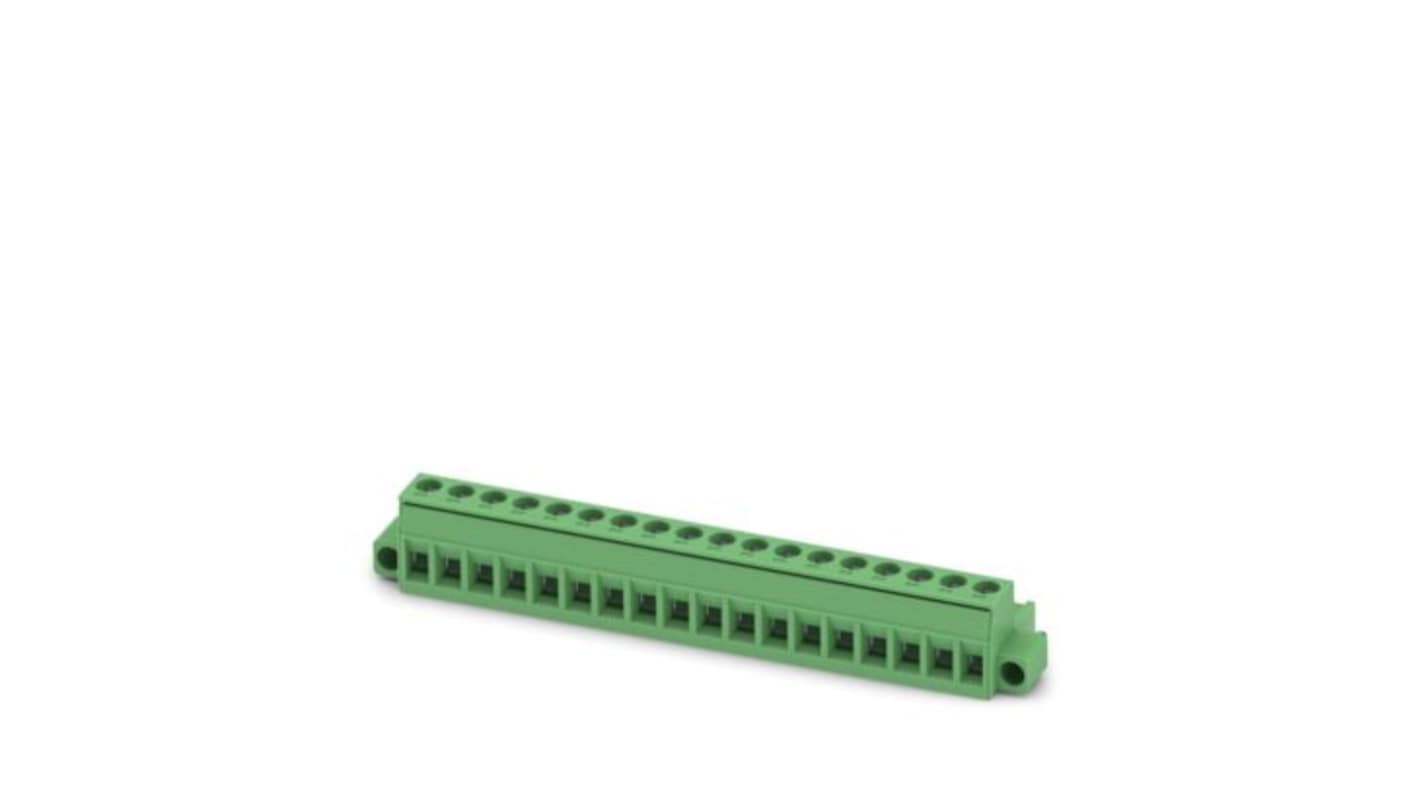

Phoenix Contact MSTB Series PCB Connector, 18-Contact, 5 mm Pitch, Screw, 1 Row Screw

View all PCB Terminal Blocks

Subtotal (1 pack of 50 units)*

£781.82

(exc. VAT)

£938.18

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£781.82£15.636

*price indicative

RS Stock No.:
520-774
Mfr. Part No.:
1786996
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Connector

Number of Contacts

18

Pitch

5mm

Current

12A

Number of Rows

1

Mount Type

Screw

Housing Material

Polyamide

Connector Gender

Female

Termination Type

Screw

Colour

Green

Voltage

320V

Series

MSTB

Width

100.01mm

Length

18.2mm

Depth

15mm

Standards/Approvals

IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60664-1:2007-04, DIN 46228-1, DIN 46228-4, UL 94 V0, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19931011, DNV GL Approval ID: TAE00001EY, VDE Approval ID: 40050694

COO (Country of Origin):
DE
The Phoenix Contact PCB connector is designed for efficient connectivity in electronic circuits, featuring a robust design tailored to meet the demands of modern applications. It supports a nominal current of 12 A and a rated voltage of 320 V, making it ideal for various industrial environments. The connector showcases the well-respected COMBICON product line, ensuring high reliability and performance. Its unique locking mechanism provides mechanical stability while allowing for secure connections between conductors. The green housing not only offers a visual cue for identification but also signifies its environmentally responsible construction. With a pitch of 5 mm, it accommodates complex arrangements and meets stringent electrical criteria, ensuring dependable performance for both rigid and flexible conductors. This connector is well-suited for anyone seeking performance without compromise in their electrical systems.

Designed for maximum contact force, reducing temperature rise during operation

Features a screwable flange to enhance overall mechanical stability

Allows for simultaneous connection of multiple conductors, maximising utility

Robust construction that's compliant with international safety standards

Utilises a user-friendly screw connection with tension sleeve for easy installation

Offers a unique dual conductor connection capability for added versatility

Crafted from high-quality materials for extended durability and performance
