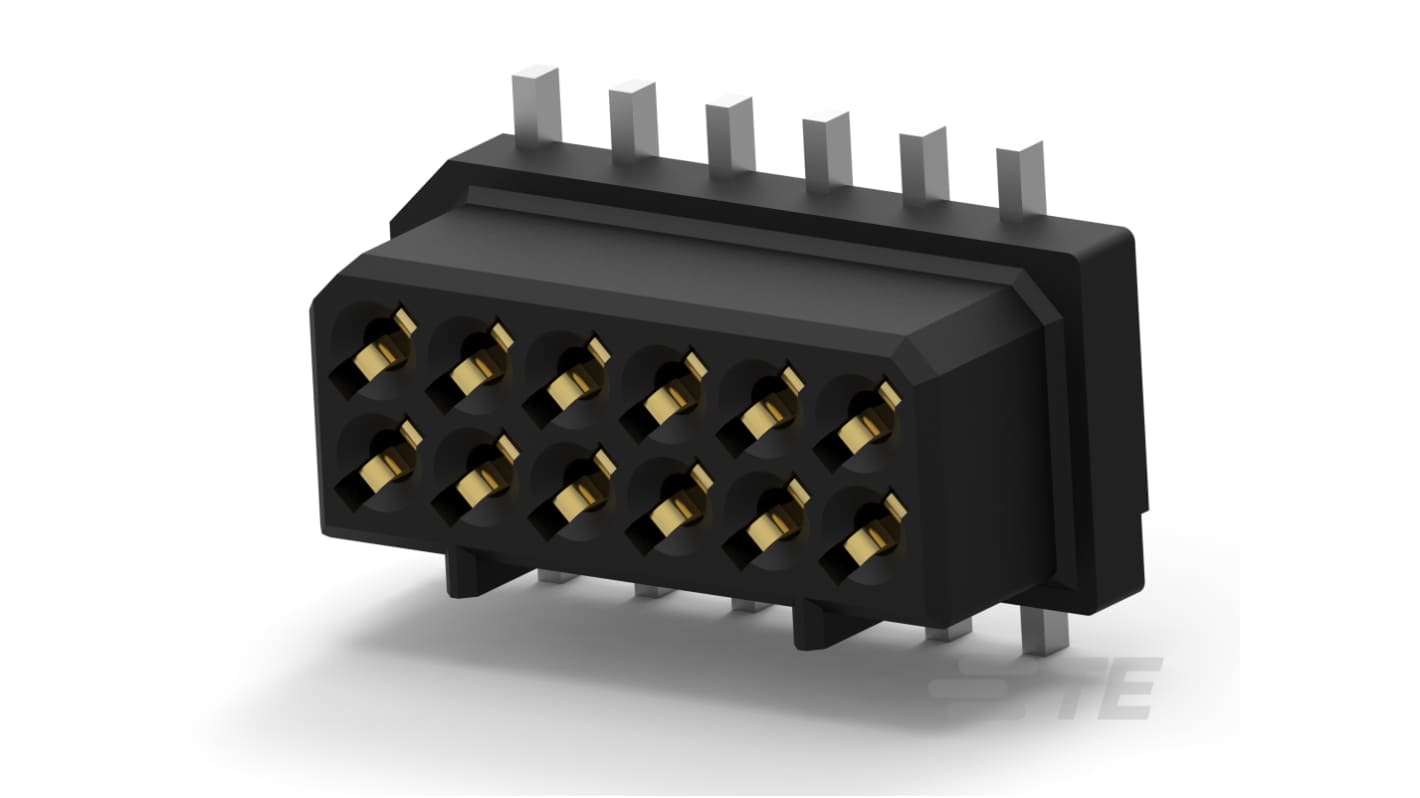

TE Connectivity 4-1756 Series Vertical Board Mount PCB Connector, 12-Contact, 2-Row, 1.25mm Pitch, Surface Mount
- RS Stock No.:
- 477-063
- Mfr. Part No.:
- 4-175630-2
- Brand:
- TE Connectivity
Subtotal (1 reel of 1500 units)*
£1,974.77
(exc. VAT)
£2,369.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 666,666,666 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 + | £1,974.77 | £1.317 |
*price indicative
- RS Stock No.:
- 477-063
- Mfr. Part No.:
- 4-175630-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 12 | |
Number of Rows | 2 | |
Pitch | 1.25mm | |
Type | PCB Mount Receptacle | |
Mounting Type | Board Mount | |
Body Orientation | Vertical | |
Termination Method | Surface Mount | |
Series | 4-1756 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Pitch 1.25mm | ||
Type PCB Mount Receptacle | ||
Mounting Type Board Mount | ||
Body Orientation Vertical | ||
Termination Method Surface Mount | ||
Series 4-1756 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Receptacle is a sophisticated connector designed for vertical board-to-board applications with 12 positions. This precision-engineered component features a 1.25 mm centreline, providing reliability and optimal performance in various electronic configurations. Crafted from durable polyphenylene sulfide (PPS), it ensures high-temperature stability with an operating range between -30 to 105 °C. The connector's unique design facilitates efficient signal transmission while maintaining insulation resistance of 2 MΩ. Furthermore, it supports surface mount technology, making it suitable for high-density circuit board layouts and offering versatility in assembly processes. With its robust construction, this receptacle helps reduce the risk of failure in critical applications, ensuring longevity and customer satisfaction.
Designed for seamless board-to-board connections
Offers excellent mechanical stability under various mounting conditions
Features a compact design suitable for high-density applications
Utilises tape and reel packaging for efficient handling and assembly
Capable of withstanding voltage levels up to 50 VAC
Polarisation ensures accurate mating during installation
Constructed to be free from harmful substances, meeting RoHS compliance
Inline contact layout simplifies integration into existing designs
Offers excellent mechanical stability under various mounting conditions
Features a compact design suitable for high-density applications
Utilises tape and reel packaging for efficient handling and assembly
Capable of withstanding voltage levels up to 50 VAC
Polarisation ensures accurate mating during installation
Constructed to be free from harmful substances, meeting RoHS compliance
Inline contact layout simplifies integration into existing designs
