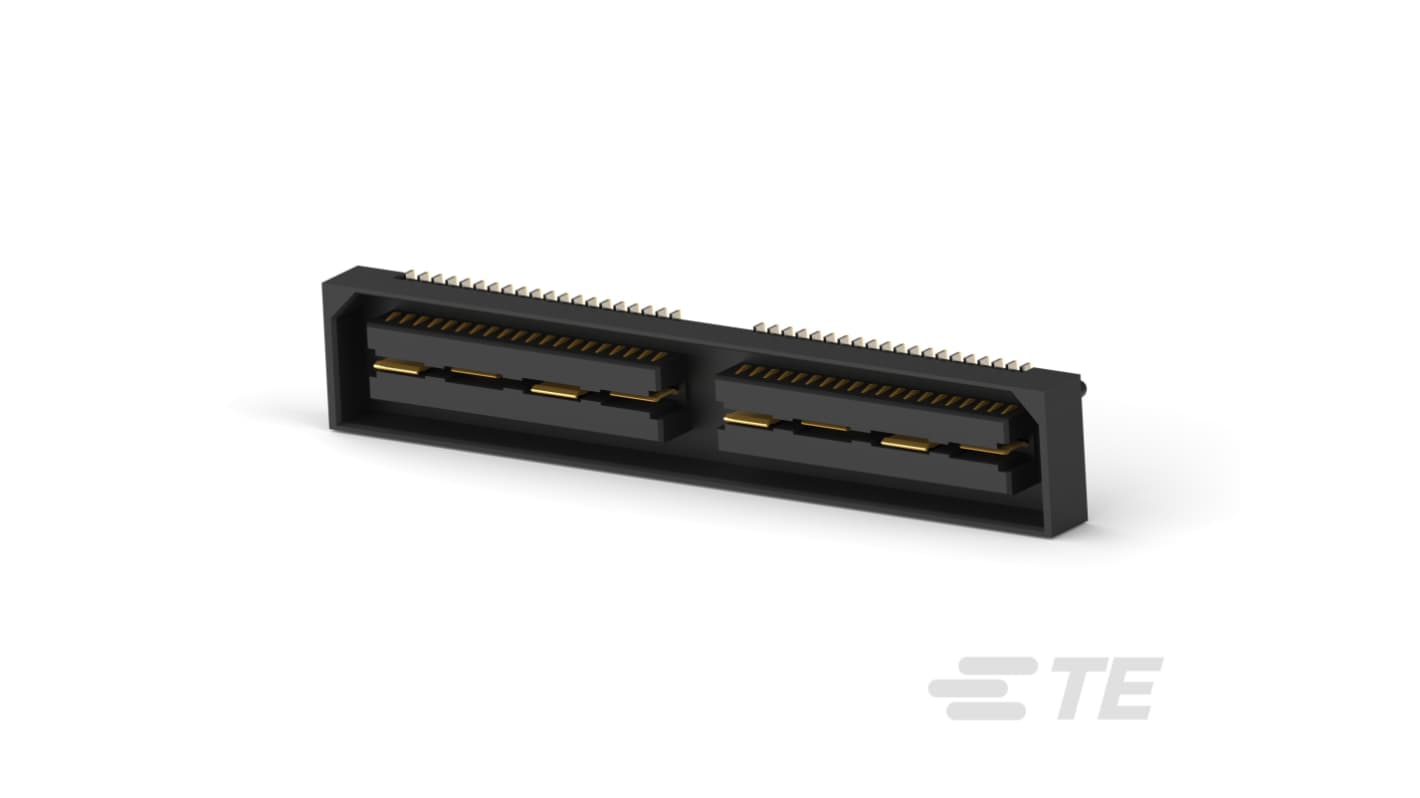

TE Connectivity 2-1658 Series Vertical Board PCB Socket, 80-Contact, 2 Row, 800 μm Pitch Through Hole
- RS Stock No.:
- 468-865
- Distrelec Article No.:
- 304-53-762
- Mfr. Part No.:
- 2-1658462-2
- Brand:
- TE Connectivity
Subtotal (1 tray of 15 units)*
£203.45
(exc. VAT)
£244.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £203.45 | £13.563 |
*price indicative
- RS Stock No.:
- 468-865
- Distrelec Article No.:
- 304-53-762
- Mfr. Part No.:
- 2-1658462-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 80 | |
| Product Type | PCB Socket | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 2 | |
| Current | 9.5A | |
| Pitch | 800μm | |
| Termination Type | Through Hole | |
| Housing Material | Liquid Crystal Polymer | |
| Mount Type | Board | |
| Orientation | Vertical | |
| Connector System | Board-to-Board | |
| Voltage | 125V | |
| Series | 2-1658 | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 800μm | |
| Maximum Operating Temperature | 125°C | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 80 | ||
Product Type PCB Socket | ||
Sub Type PCB Receptacle | ||
Number of Rows 2 | ||
Current 9.5A | ||
Pitch 800μm | ||
Termination Type Through Hole | ||
Housing Material Liquid Crystal Polymer | ||
Mount Type Board | ||
Orientation Vertical | ||
Connector System Board-to-Board | ||
Voltage 125V | ||
Series 2-1658 | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 800μm | ||
Maximum Operating Temperature 125°C | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Contact Gender Female | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Receptacle is an expertly designed connectivity solution ideal for board-to-board applications. This connector excels in offering a secure connection with an impressive 80 positions, making it perfect for intricate electronic systems. Crafted for surface mounting, it ensures a robust yet discreet integration into your PCB layout. The fully shrouded design heightens the safety of the connection, while the gold plating enhances durability and reduces signal loss. With an operating voltage of up to 125 VAC, this receptacle efficiently handles both power and signal transmission. Whether in consumer electronics or industrial automation, this component delivers exceptional performance and reliability.
Designed for vertical PCB mounting to maximise space efficiency
Offers a parallel board-to-board configuration for seamless integration
Utilises high-grade materials for enhanced thermal and mechanical resilience
Allows for effortless assembly via pick and place processes
Provides a wide operating temperature range for diverse applications
Employs low halogen materials, promoting a safer environment
Features high mating retention for secure connections during operation
Supports reflow soldering processes, ensuring efficient manufacturing
